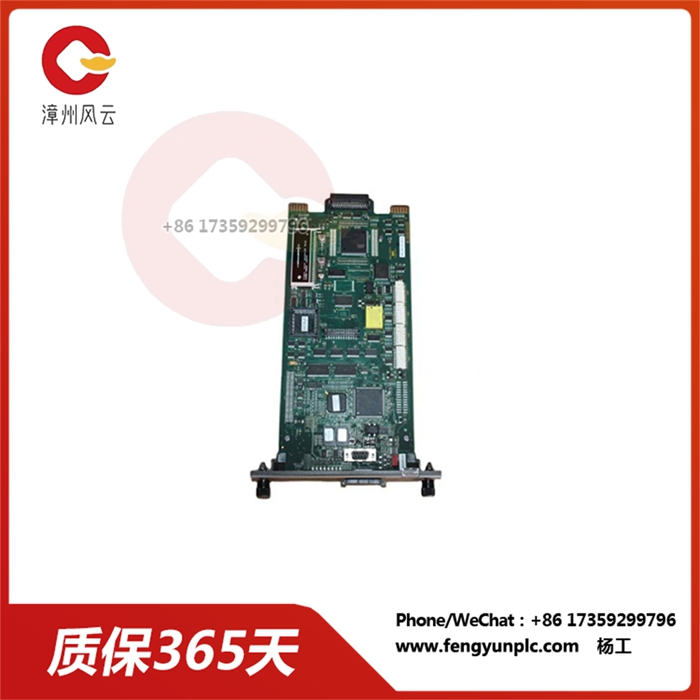

SPDSM04 脉冲输入模块

SPDSM04 脉冲输入模块

ABB SPDSM04脉冲输入模块是一款多功能元件，设计用于连接和处理各种工业自动化应用中的脉冲信号。 它兼具紧凑性、可靠性和高级功能，是各种脉冲计数和测量任务的合适选择。

ABB SPDSM04脉冲输入模块的主要特点：

高速计数：支持高达 20 kHz 脉冲频率的高速计数，从而能够准确测量快速事件。

多种计数模式：提供多种计数模式，包括单人，双和正交计数，满足不同的应用要求。

过滤功能：包括滤波功能，可消除脉冲信号的噪声和干扰，确保可靠的计数准确性。

可扩展分辨率：为脉冲测量提供可扩展的分辨率，允许精确调整测量范围。

ABB SPDSM04脉冲输入模块的应用：

ABB SPDSM04脉冲输入模块在各种行业和自动化系统中都有应用。包括：

位置测量系统：用于位置测量系统，以跟踪物体的运动，如输送带，线性执行器，和旋转编码器。

速度监控系统：用于速度监控系统，用于测量机械（如电机、涡轮机和风扇）的转速。

流量测量系统：用于流量测量系统，以确定液体或气体的流量，例如在管道或生产过程中。

数据采集系统：用于数据采集系统，用于收集和存储脉冲信号数据以进行分析和监测。

ABB SPDSM04脉冲输入模块的应用示例：

测量传送带速度：该SPDSM04可用于测量传送带的速度，通过接收来自连接到传送带传动轴的编码器的脉冲，确保一致的产品流动并防止堵塞或损坏。

监测电机转速：脉冲输入模块可用于通过接收转速表的脉冲来监控电机的转速，从而实现预测性维护并防止电机故障。

量化液体流量：该SPDSM04可用于通过接收流量计的脉冲来量化管道中水的流速，优化用水量并防止浪费。

记录机器周期：脉冲输入模块可用于记录机器（如包装机或印刷机）完成的循环次数，跟踪生产输出并识别潜在的瓶颈。

SPDSM04 脉冲输入模块

The ABB SPDSM04 pulse input module is a versatile component designed to connect and process pulse signals in a variety of industrial automation applications. It combines compactness, reliability and advanced functionality, making it the right choice for a variety of pulse counting and measurement tasks.

Main features of ABB SPDSM04 pulse input module:

High-speed counting: Supports high-speed counting at pulse frequencies up to 20 kHz, enabling accurate measurement of fast events.

Multiple counting modes: A variety of counting modes are available, including single, double and orthogonal counting, to meet different application requirements.

Filtering function: includes filtering function, which can eliminate noise and interference of pulse signal to ensure reliable counting accuracy.

Scalable resolution: Provides scalable resolution for pulse measurements, allowing precise adjustment of the measurement range.

ABB SPDSM04 pulse input module application:

ABB SPDSM04 pulse input modules are used in a variety of industries and automation systems. Includes:

Position measurement systems: Used in position measurement systems to track the movement of objects such as conveyor belts, linear actuators, and rotary encoders.

Speed monitoring systems: Used in speed monitoring systems to measure the speed of machinery such as motors, turbines and fans.

Flow measurement systems: Used in flow measurement systems to determine the flow of liquids or gases, such as in pipelines or production processes.

Data acquisition system: Used for data acquisition systems to collect and store pulse signal data for analysis and monitoring.

ABB SPDSM04 pulse input module application example:

Measuring conveyor speed: The SPDSM04 can be used to measure the speed of a conveyor belt by receiving pulses from an encoder connected to the drive shaft of the conveyor belt, ensuring consistent product flow and preventing clogging or damage.

Monitor motor speed: The pulse input module can be used to monitor the motor speed by receiving pulses from the tachometer, enabling predictive maintenance and preventing motor failure.

Quantifying liquid flow: The SPDSM04 can be used to quantify the flow rate of water in the pipeline by receiving the pulse of the flowmeter, optimizing water consumption and preventing waste.

Recording machine cycles: The pulse input module can be used to record the number of cycles completed by a machine (such as a packaging machine or a printing press), track production output and identify potential bottlenecks.
