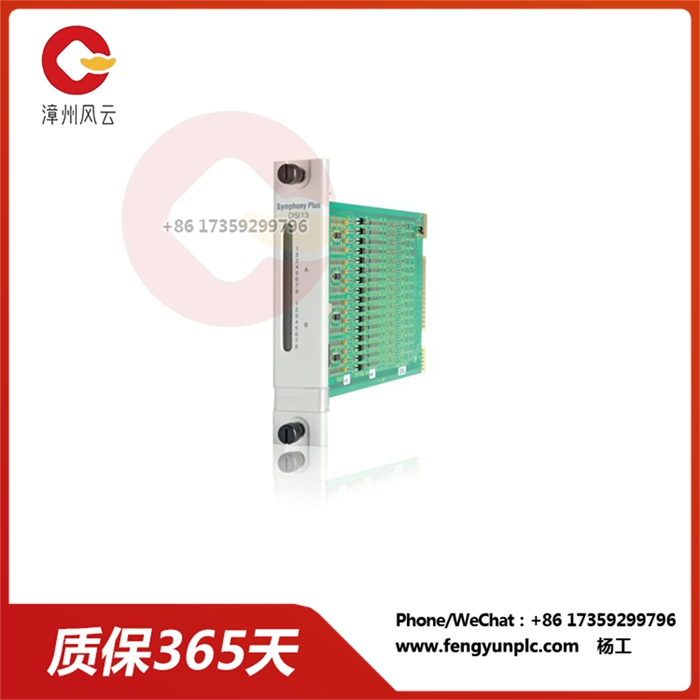

ABB SPDSI14数字输入模块是一款多功能元件，设计用于连接和监控各种工业自动化应用中的数字信号。它结合了紧凑性、可靠性和高级功能，使其成为各种监控任务的合适选择。

ABB SPDSI14数字量输入模块的主要特点：

高通道密度：在紧凑的设计中支持多达 16 个独立的数字输入通道，在有限的空间内最大限度地提高 I/O 容量。

光隔离通道：具有光隔离通道，可防止电气噪声和接地环路，从而增强信号完整性和可靠性。

快速响应时间：提供小于 1 微秒的快速响应时间，确保及时检测数字信号变化。

诊断 LED：包括每个通道的诊断 LED，以直观地指示信号状态和潜在故障。

坚固的结构：采用坚固的结构，防护等级为 IP65，适用于恶劣的工业环境。

ABB SPDSI14数字量输入模块的应用：

ABB SPDSI14数字量输入模块适用于各种行业和自动化系统，包括：

过程控制系统：用于过程控制系统，用于监控传感器、开关和其他设备的状态，确保阀门、泵和其他过程设备的正常运行。

机器控制系统：用于机器控制系统，监控机器的位置、限位开关和安全联锁装置，确保机器安全高效运行。

报警和安全系统：用于报警和安全系统，用于监控关键参数，并在发生异常情况时触发报警或激活安全联锁装置。

数据采集系统：用于数据采集系统，用于收集和存储来自传感器、开关和其他设备的数字信号数据，以便进行分析和监控。

ABB SPDSI14数字量输入模块的应用示例：

监控制造工厂的门状态：该SPDSI14可用于监控制造工厂的门状态，通过接收来自门传感器的数字信号，并在未经授权的访问或打开门的情况下向操作员发送警报。

检测输送机堵塞：数字输入模块可用于检测输送机堵塞，通过接收来自限位开关的数字信号，指示输送机运动过多或停止，防止损坏设备和产品。

在火灾探测系统中触发警报：该SPDSI14可用于通过接收来自烟雾探测器或热传感器的数字信号来触发火灾探测系统中的警报，提醒居住者注意潜在的火灾危险。

从交通监控系统收集数据：数字输入模块可以通过接收来自传感器的数字信号来收集交通监控系统的数据，指示车辆的存在、速度和方向，为拥堵管理提供实时交通信息。

SPDSI14 数字输入模块 工控自动化设备

The ABB SPDSI14 Digital Input module is a versatile component designed to connect and monitor digital signals in a variety of industrial automation applications. It combines compactness, reliability, and advanced features, making it a suitable choice for a variety of monitoring tasks.

Key features of ABB SPDSI14 digital input module:

High channel density: Up to 16 independent digital input channels are supported in a compact design to maximize I/O capacity in a limited space.

Optical isolated channels: Features optical isolated channels that protect against electrical noise and ground loops, enhancing signal integrity and reliability.

Fast response time: Provides a fast response time of less than 1 microsecond to ensure timely detection of digital signal changes.

Diagnostic leds: Include diagnostic leds for each channel to visually indicate signal status and potential failures.

Rugged construction: Rugged construction with IP65 protection grade for harsh industrial environments.

ABB SPDSI14 digital input module applications:

ABB SPDSI14 digital input modules are suitable for a variety of industries and automation systems, including:

Process control systems: Used in process control systems to monitor the status of sensors, switches and other equipment to ensure the normal operation of valves, pumps and other process equipment.

Machine control system: Used in machine control system to monitor machine position, limit switch and safety interlock device to ensure safe and efficient operation of machine.

Alarm and security systems: Used in alarm and security systems to monitor critical parameters and trigger alarms or activate security interlocks in the event of an abnormal situation.

Data acquisition systems: For data acquisition systems that collect and store digital signal data from sensors, switches, and other devices for analysis and monitoring.

Application example of ABB SPDSI14 digital input module:

Monitoring the door status of manufacturing plants: The SPDSI14 can be used to monitor the door status of manufacturing plants by receiving digital signals from door sensors and sending alerts to operators in the event of unauthorized access or opening of doors.

Detecting conveyor blockage: The digital input module can be used to detect conveyor blockage and prevent damage to equipment and products by receiving a digital signal from the limit switch indicating excessive or stopped conveyor movement.

Trigger alarms in fire detection systems: The SPDSI14 can be used to trigger alarms in fire detection systems by receiving digital signals from smoke detectors or thermal sensors to alert occupants to potential fire hazards.

Collecting data from traffic monitoring systems: The digital input module can collect data from traffic monitoring systems by receiving digital signals from sensors, indicating the presence, speed and direction of vehicles, and providing real-time traffic information for congestion management.
