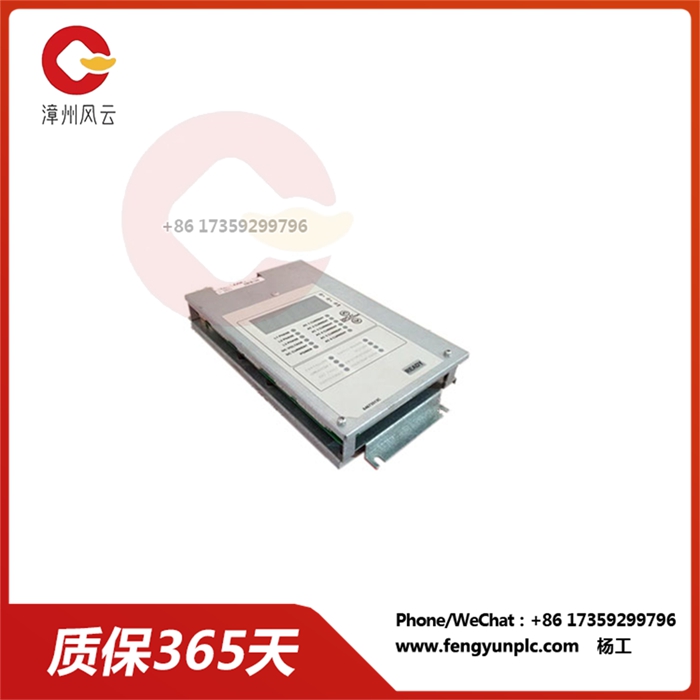

DSSB-01C整流控制主板是ABB的ACS800-07整流驱动系统中的关键组件。 它作为整流器的控制中心，管理和调节交流电源到直流电源的转换，确保驱动系统的高效可靠运行。

主要特点：

微处理器控制：DSSB-01C 利用微处理器精确控制整流器的运行，包括电源转换，故障检测，以及与外部系统的通信。

脉宽调制 （PWM） 控制：该模块采用PWM控制来调节整流器的输出电压和电流，确保所连接电机的直流电源平稳稳定。

反馈控制：DSSB-01C 集成了反馈控制机制，可根据实际负载条件和性能参数监控和调整整流器的输出。

故障检测与保护：该模块集成了故障检测和保护电路，以识别和防止潜在问题，例如过压、过流，和过热，等潜在问题，保护整流器和连接的设备。

通讯接口：DSSB-01C 支持各种通信接口，包括 RS-485 和 CAN 总线，实现与外部控制系统和监控设备的通信。

技术规格：

微处理器：32 位微控制器

控制方式：PWM控制

反馈控制：电压和电流反馈

故障检测：过压、过流、过热

通讯接口：RS-485、CAN总线

DSSB-01C 整流控制主板分散控制系统

The DSSB-01C rectifier control board is a key component in ABB's ACS800-07 rectifier drive system. It acts as the control center of the rectifier, managing and regulating the conversion of AC power supply to DC power supply, ensuring the efficient and reliable operation of the drive system.

Main features:

Microprocessor control: The DSSB-01C utilizes the microprocessor to precisely control the operation of the rectifier, including power conversion, fault detection, and communication with external systems.

Pulse width modulation (PWM) control: The module uses PWM control to adjust the output voltage and current of the rectifier to ensure that the DC power supply of the connected motor is stable and stable.

Feedback control: The DSSB-01C incorporates a feedback control mechanism to monitor and adjust the rectifier output based on actual load conditions and performance parameters.

Fault Detection and protection: The module integrates fault detection and protection circuits to identify and prevent potential problems, such as overvoltage, overcurrent, and overheating, and to protect the rectifier and connected devices.

Communication interface: DSSB-01C supports a variety of communication interfaces, including RS-485 and CAN bus, to achieve communication with external control systems and monitoring equipment.

Technical specifications:

Microprocessor: 32-bit microcontroller

Control mode: PWM control

Feedback control: voltage and current feedback

Fault detection: overvoltage, overcurrent, overheat

Communication interface: RS-485, CAN bus
