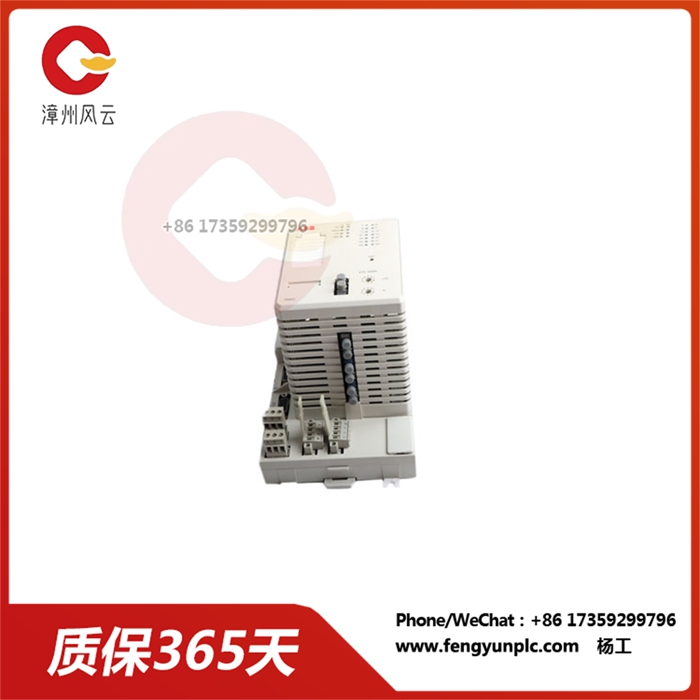

PM825 3BSE010796R1 PLC模拟量输入模块

PM825 3BSE010796R1 PLC模拟量输入模块

PM825 3BSE010796R1是一款PLC模拟量输入模块，专为ABB设计 S800 I/O 系统,用于工业自动化和控制应用的模块化和可扩展 I/O 平台。它是控制系统与各种模拟传感器和变送器之间的重要接口，能够采集表示物理参数（如温度）的模拟信号，压力流和位置。

主要特点：

8 个模拟输入通道：提供 8 个独立的模拟输入通道，用于从各种传感器和变送器采集信号，允许多功能数据收集。

高分辨率模数转换 （ADC）：具有高分辨率ADC，可将模拟信号精确转换为数字值，确保精确的数据表示。

宽输入范围：支持 -10 至 +10 V 或 0 至 20 mA 的宽输入范围，可能够兼容各种传感器类型和信号标准。

电气隔离：具有通道和电源之间的电气隔离，保护控制系统免受电气故障和噪音的影响。

滤波和信号调理：提供滤波和信号调理功能，以提高信号质量并降低噪声，确保可靠的数据采集。

应用：

PM825 3BSE010796R1 PLC 模拟量输入模块主要用于工业自动化和控制系统，特别是涉及以下应用：

过程控制：监测和控制温度等工艺参数，压力流和制造水平，生产和能源分配应用。

机器监控：从传感器获取数据以进行机器监控，基于状态的维护，以及预测性维护目的。

环境监测：收集环境数据，如温度，湿度以及各种环境中的空气质量。

数据采集与分析：与数据采集系统集成以进行进一步分析，可视化和决策。

PM825 3BSE010796R1 PLC模拟量输入模块

The PM825 3BSE010796R1 is a PLC analog input module designed for ABB's S800 I/O system as a modular and scalable I/O platform for industrial automation and control applications. It is an important interface between the control system and various analog sensors and transmitters, capable of collecting analog signals that represent physical parameters such as temperature, pressure flow, and position.

Main features:

Eight analog input channels: Eight independent analog input channels are provided to collect signals from a variety of sensors and transmitters, allowing multi-functional data collection.

High-resolution analog-to-digital Conversion (ADC) : Features a high-resolution ADC that accurately converts analog signals to digital values, ensuring accurate data representation.

Wide input range: Supports a wide input range of -10 to +10 V or 0 to 20 mA, enabling compatibility with various sensor types and signal standards.

Electrical isolation: Has electrical isolation between the channel and the power supply to protect the control system from electrical failures and noise.

Filtering and signal conditioning: Provides filtering and signal conditioning capabilities to improve signal quality and reduce noise, ensuring reliable data acquisition.

Applications:

The PM825 3BSE010796R1 PLC analog input module is mainly used in industrial automation and control systems, in particular involving the following applications:

Process control: Monitor and control process parameters such as temperature, pressure flow and manufacturing levels, production and energy distribution applications.

Machine monitoring: Acquisition of data from sensors for machine monitoring, condition-based maintenance, and predictive maintenance purposes.

Environmental monitoring: Collect environmental data such as temperature, humidity, and air quality in various environments.

Data acquisition and Analysis: Integration with data acquisition systems for further analysis, visualization and decision making.
