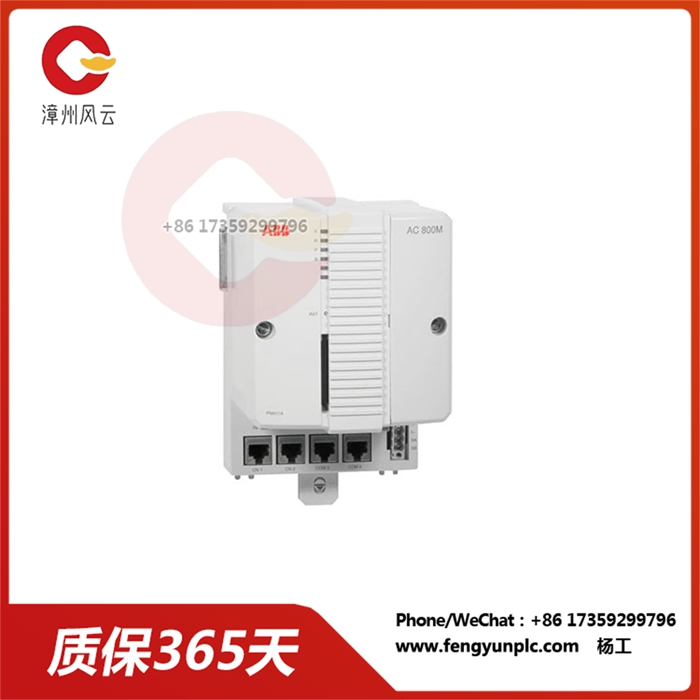

PM851AK01 3BSE066485R1 系统控制器处理器模块

PM851AK01 3BSE066485R1 系统控制器处理器模块

PM851AK01 3BSE066485R1是ABB公司的系统控制器处理器模块。它是 AC 800M 系列导轨安装模块的一部分，专为工业控制系统而设计。PM851AK01是一款中等性能处理器模块，适用于多种应用，包括：

过程控制：该PM851AK01可用于控制和监控过程变量，例如温度、压力和流量。

机器控制：该PM851AK01可用于控制机器，例如输送机、机器人和包装机。

SCADA系统：该PM851AK01可用于SCADA（监控和数据采集）系统，以从现场设备收集数据并控制现场设备。

主要特点：

MPC860处理器：该PM851AK01基于MPC860处理器，这是一款32位PowerPC处理器。MPC860处理器的时钟速度为24 MHz，每微秒可执行多达1000次布尔运算。

RAM内存：PM851AK01包括 8 MB 的 RAM 内存。此内存用于存储操作系统、应用程序和数据。

实时时钟：该PM851AK01包括一个实时时钟 （RTC），用于跟踪时间和日期。RTC 是备用电池，以确保即使在断电时也能保持准确。

LED指示灯：该PM851AK01包括许多用于提供状态信息的 LED 指示灯。这些指示灯包括电源、运行和错误的 LED。

INIT 按钮：该PM851AK01包括一个用于复位处理器的 INIT 按钮。

CompactFlash 接口：该PM851AK01包括一个 CompactFlash 接口，可用于加载和保存数据。

以太网端口：该PM851AK01包括两个以太网端口，用于与其他设备通信。

串口：该PM851AK01包括两个串行端口，可用于与其他设备通信。

模块总线：该PM851AK01包括一个 ModuleBus，用于连接到其他 AC 800M 模块。

规格：

处理器：MPC860型

时钟速度： 24 MHz

内存： 8 MB

实时时钟：是的

LED指示灯：电源、运行、错误

INIT 按钮：是的

CompactFlash 接口：是的

以太网端口：2

串口：2

模块总线：是的

工作温度范围：+5 至 +55 °C（+41 至 +131 °F）

存储温度范围：-40 至 +70 °C（-40 至 +158 °F）

PM851AK01 3BSE066485R1 系统控制器处理器模块

The PM851AK01 3BSE066485R1 is a system controller processor module from ABB. It is part of the AC 800M series of rail mounting modules designed for industrial control systems. The PM851AK01 is a mid-performance processor module for a variety of applications, including:

Process control: The PM851AK01 can be used to control and monitor process variables such as temperature, pressure and flow.

Machine control: The PM851AK01 can be used to control machines such as conveyors, robots and packaging machines.

SCADA System: The PM851AK01 can be used in SCADA (Supervisory Control and Data Acquisition) systems to collect data from and control field equipment.

Main features:

MPC860 Processor: The PM851AK01 is based on the MPC860 processor, a 32-bit PowerPC processor. The MPC860 processor has a clock speed of 24 MHz and can perform up to 1,000 Boolean operations per microsecond.

RAM Memory: The PM851AK01 includes 8 MB of RAM memory. This memory is used to store the operating system, applications, and data.

Real-time clock: The PM851AK01 includes a real-time clock (RTC) for keeping track of time and date. RTC is a backup battery to ensure accuracy even when power is off.

LED Indicators: The PM851AK01 includes a number of LED indicators for providing status information. These indicators include power, operation, and error leds.

INIT button: The PM851AK01 includes an INIT button for resetting the processor.

CompactFlash Interface: The PM851AK01 includes a CompactFlash interface that can be used to load and save data.

Ethernet ports: The PM851AK01 includes two Ethernet ports for communication with other devices.

Serial port: The PM851AK01 includes two serial ports that can be used to communicate with other devices.

Module bus: The PM851AK01 includes a ModuleBus for connecting to other AC 800M modules.

Specifications:

Processor: MPC860

Clock speed: 24 MHz

Memory: 8 MB

Real-time clock: Yes

LED indicator: Power, operation, error

INIT button: Yes

CompactFlash interface: Yes

Ethernet port: 2

Serial port: 2

Module bus: Yes

Operating temperature range: +5 to +55 °C (+41 to +131 °F)

Storage temperature range: -40 to +70 °C (-40 to +158 °F)
