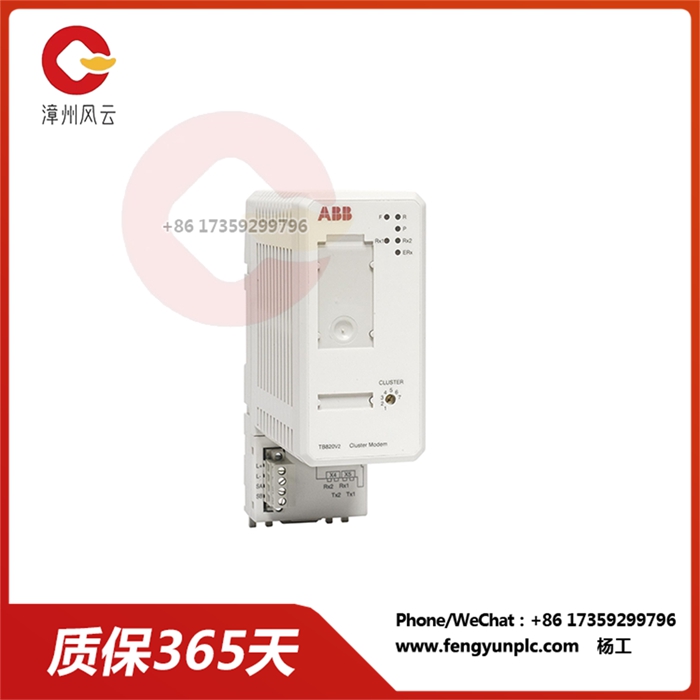

TB820V2 3BSE013208R0001 通用安全控制器中枢

TB820V2 3BSE013208R0001 通用安全控制器中枢

产品描述

S800I/O是一个全面的、分布式和模块化的流程I/O系统,它通过行业标准的现场总线与父控制器和PLCS进行通信。TB820V2调制解调器是一种光纤接口。该调制解调器具有逻辑上相同总线的电气和光学接口。最多可将12个I/O模块连接到电气模块,最多可将7个集群连接到光纤模块。光纤接口用于I/O集群的局部分布,在I/O站需要超过12I/O模块的地方。

TB820V2 3BSE013208R0001 ABB Modbus调制解调器模块是一种通信模块，旨在实现控制器和其他设备之间的Modbus通信。该模块提供RS-485和RS-232通信接口，并支持高达115.2 kbps的波特率。

特点和益处

2个光纤端口到光缆

调至I/O模块的电动车

I/O部的监督职能和电力供应

I/O模块的孤立电源

在光学车辆上有一个旋转开关,选择其集群号,1到7。

应用领域

TB820V2 3BSE013208R0001 ABB Modbus调制解调器模块适用于各种应用的Modbus通信网络，如工业自动化、楼宇自动化和能源管理系统。

TB820V2 3BSE013208R0001 通用安全控制器中枢

Product description

The S800I/O is a comprehensive, distributed and modular process I/O system that communicates with the parent controller and PLCS via an industry-standard fieldbus. The TB820V2 modem is a fiber optic interface. The modem has electrical and optical interfaces that are logically the same bus. Up to 12 I/O modules can be connected to the electrical module and up to 7 clusters can be connected to the optical fiber module. Fiber interfaces are used for local distribution of I/O clusters, where more than 12I/O modules are required at I/O stations.

TB820V2 3BSE013208R0001 ABB Modbus modem module is a communication module designed to enable Modbus communication between controllers and other devices. The module provides RS-485 and RS-232 communication interfaces and supports baud rates up to 115.2 kbps.

Features and benefits

2 optical fiber ports to optical cable

Tune to the I/O module of the electric vehicle

Supervisory functions of the I/O Department and power supply

Isolated power supply for the I/O module

On the optical vehicle there is a rotary switch that selects its cluster number,1 to 7.

Application field

TB820V2 3BSE013208R0001 ABB Modbus modem modules are suitable for Modbus communication networks in various applications such as industrial automation, building automation and energy management systems.
