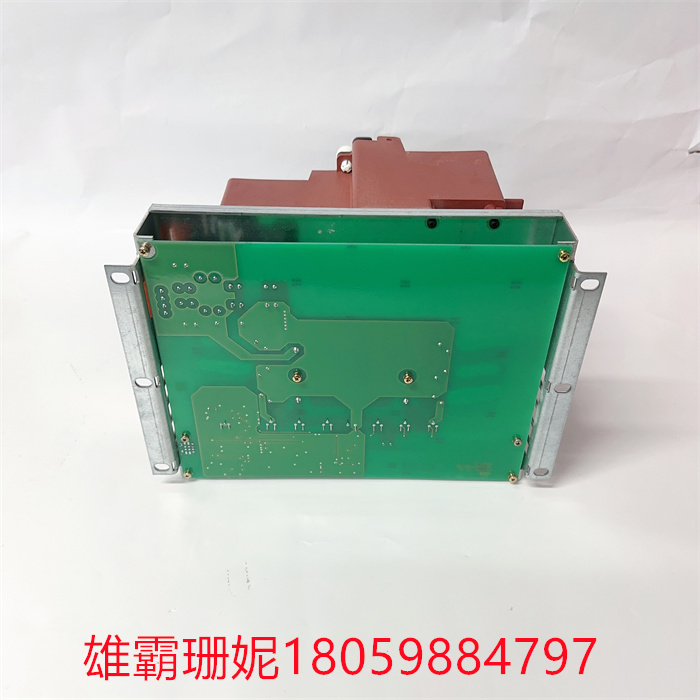

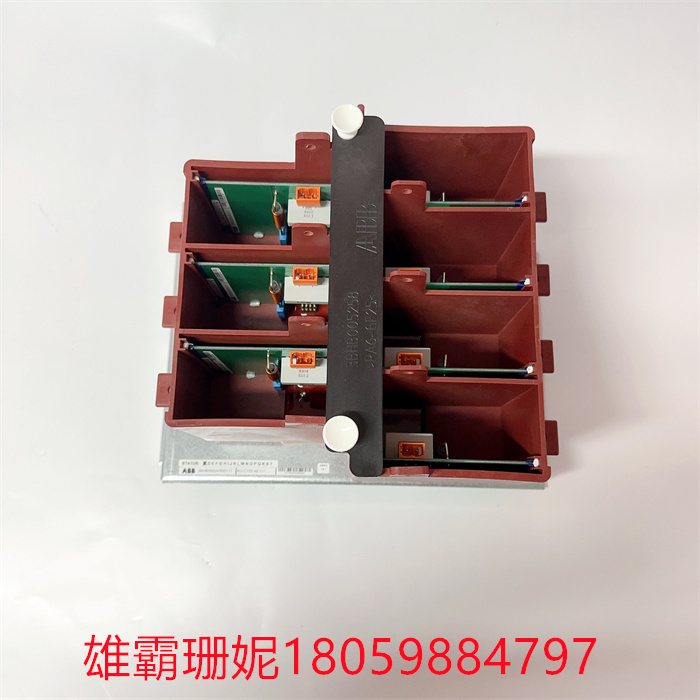

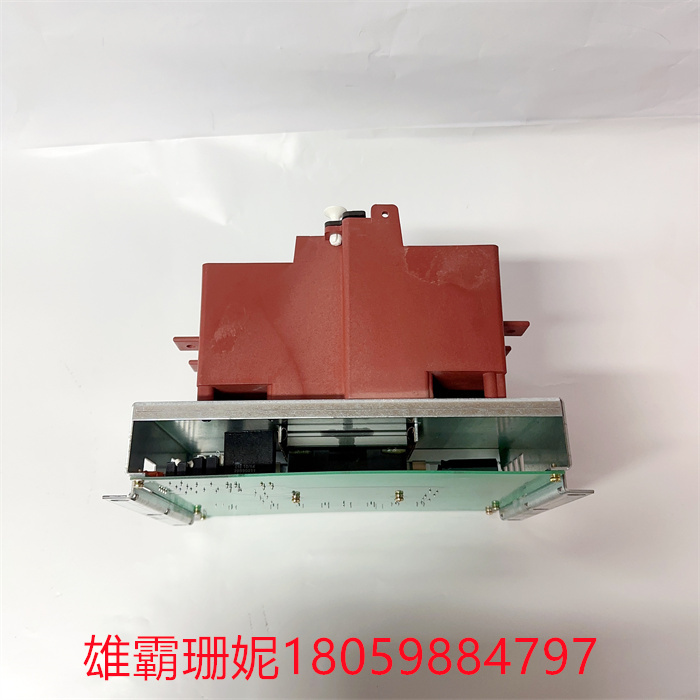

KUC755AE117 3BHB005243R0117PLC模块DCS系统模块

KUC755AE117 3BHB005243R0117PLC模块DCS系统模块

KUC755AE117 3BHB005243R0117 中高压驱动单元控制器当控制单元处于保护锁定状态时，面板红色保护指示灯点亮，此时必须输入 远方复位或按面板“复位”按键让系统返回待机状态。

 当设备收到该瞬时命令信号后： 系统处于待机状态时将启动电机向工作位运行 系统处于向工作位运行中则不响应本次命令 系统处于到试验位运行中则立即对电机制动返回待机状态

当设备收到该瞬时命令信号后： 系统处于待机时将启动电机向试验位运转 系统处于到试验位运转中则不响应本次命令 系统处于到工作位运行中则立即对电机制动返回待机状态 输入工作位触点，作为系统处于工作位置判断信号 输入试验位触点，作为系统处于试验位置判断信号 为端子1~5的公共负极 与控制单元总电源（端子7-8）隔离，允许使用另一套控制电源 控制单元供电正极 控制单元供电负极 控制单元驱动信号输出，连接到手车驱动电机负极“-” 控制单元驱动信号输出，连接到手车驱动电机正极“+” 正常时输出常闭接点，故障时保护启动后转换至常开 正常时输出常开接点，故障时保护启动后转换至常闭 保护微调跳线，当阻力达到门槛阻力时，保护启动 未短接时保护门槛阻力等于额定值，短接后保护门槛阻力增加20% 控制单元电源指示，正常通电后常亮 控制单元保护启动并锁定状态指示，复位或掉电后熄灭 就地复位按钮，功能等同于远方复位。

KUC755AE117 3BHB005243R0117 Medium and high voltage drive unit controller When the control unit is in the protection lock state, the red protection indicator on the panel lights up. In this case, you must enter remote reset or press the Reset button on the panel to return the system to standby state.

When the device receives the instantaneous command signal: when the system is in the standby state, the motor will start and run to the working position. When the system is in the working position, it will not respond to the command. When the system is in the test position, the motor will immediately brake and return to the standby state

When the device receives the instantaneous command signal: When the system is in standby, the motor will start to run to the test position, and the system will not respond to this command when it is running to the test position, and the system will immediately brake the motor to return to the standby state and input the working position contact, which will be used as the system is in working position to judge the signal and input the test position contact. As the system is in the test position, it is determined that the common negative terminal whose signal is terminal 1~5 is isolated from the total power supply of the control unit (terminal 7-8), allowing another set of control power control unit to supply the positive control unit to supply the negative control unit to drive the signal output, and connecting it to the negative "-" control unit to drive the signal output of the hand-car drive motor. Connect the positive pole of the car drive motor "+" to output normally closed contact when normal, switch to normally open contact when fault occurs after protection start, switch to normally open contact when fault occurs after protection start, and switch to normally closed protection fine-tuned jumper when fault occurs. When resistance reaches threshold resistance, the protection threshold resistance when protection start is not shorted is equal to the rated value. After short-circuiting, the resistance of the protection threshold increases by 20% to the power indicator of the control unit. After normal power-on, the control unit protection starts and locks the status indicator. After reset or power off, the local reset button is extinguished, which is equivalent to
