5069-OBV8S Compact5000 直流安全输出模块

5069-OBV8S Compact5000 直流安全输出模块

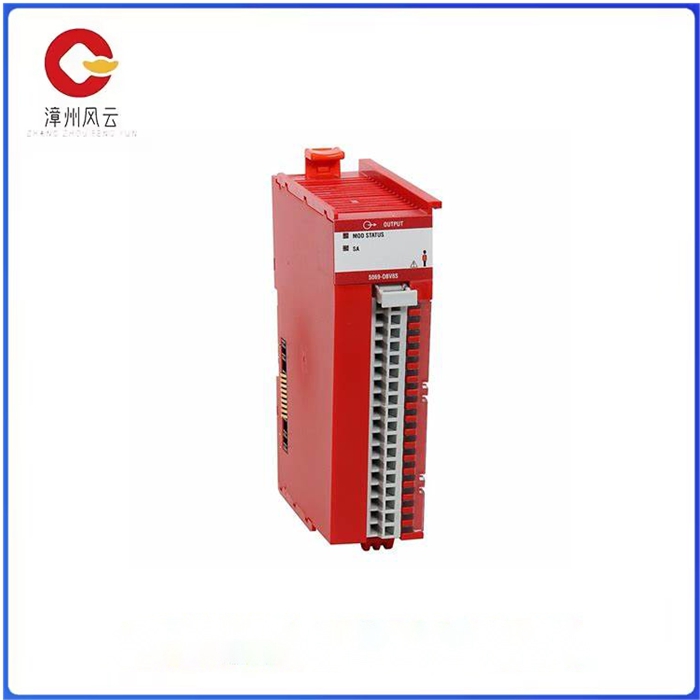

Allen-Bradley 5069-OBV8S是紧凑型5000 I/O安全输出模块。该模块具有内置的八(8)输出通道，在17.5-32VDC的电压范围内工作。该模块适用于要求高达安全完整性等级(SIL) CL3和PLe, Cat。安全水平。此外，还有通道安全输入模块。该模块支持源布线配置，并提供每个通道1 A的输出电流。

该模块可以与紧凑型GuardLogix 5380控制器一起安装，作为本地I/O模块。作为一个分布式I/O模块，该模块与GuardLogix 5580控制器一起工作。

5069-OBV8S具有现场失电、空载、输出短路、过载、输出过温、输出过温检测能力，嵌入式保护功能包括反压保护和过压保护。

对于安全功能，当控制器进入程序模式或故障模式时，模块的输出通道自动关闭。当检测到故障时，安全输出将切换到OFF状态，并将保持在此状态，直到故障原因被排除。另外，必须将安全输出调至安全状态，才能使模块恢复正常工作。

5069-OBV8S符合SIL CL3, PLe, Cat. 4的安全完整性等级(SIL)。安全反应时间(SRT)为4.5 ms，最小输出脉冲宽度为400µs。

这些模块使用生产者和消费者通信系统，该系统由模块和不同设备之间的智能数据传输组成。在这种操作模式下，每个模块都可以产生数据，而不需要先轮询。

Allen-Bradley 5069-OBV8S安全输出模块配有保形涂层，可保护其免受阴暗环境的影响。该模块是直流模块，其8点输出电压为17.5至32伏直流。Allen-Bradley 5069-OBV8S安全输出模块在水平方向上的最大温度范围为0到60摄氏度，在垂直方向上的最大温度范围为0到50摄氏度。温度不应高于最高额定值，因为它可能导致过热和损坏模块。该模块的输出额定值为每通道1安培。电线需要用铜制成，模块的隔离电压额定值高达250伏。所有的电线都需要紧固和安全，以避免在模块使用过程中出现故障。

5069-OBV8S Compact5000 直流安全输出模块

The Allen-Bradley 5069-OBV8S is a Compact 5000 I/O Safety output module. This module has built-in Eight (8) output channels that operated at voltage range of 17.5-32VDC. This module is suitable for use in application that require up to Safety Integrity Level (SIL) CL3 and PLe, Cat. Safety level. In addition, channel safety input module. This module support sourcing wiring configuration and delivers an output current of 1 A per channel.

This module may be installed with a Compact GuardLogix 5380 Controller, acting as a local I/O module. As a distributed I/O module, this module works with GuardLogix 5580 controllers.

The 5069-OBV8S is provided with capability of detecting of detecting Field power loss, No load, Output short circuit, Overload, Output overtemperature and Output overtemperature detection while embedded protection features include Reverse voltage protection and Overvoltage protection.

For safety functions, the module’s output channels automatically turns OFF when controller enters program mode or fault mode. The safety outputs switches to OFF state when the fault is detected and will remail latched in this state until the cause of the fault is removed. Additionally, the safety outputs must be commended into the safe state to enable the module return to normal operation.

The 5069-OBV8S has meets Safety Integrity Level (SIL) of SIL CL3, PLe, Cat. 4. It has Safety reaction time (SRT) of 4.5 ms and min. output pulse width of 400 µs.

These modules use a producer and consumer communication system that consists of intelligent data transfers between the modules and different devices. Under this operating model, each module can produce data without the need to be polled first.

The Allen-Bradley 5069-OBV8S safety output module comes with a conformal coating that protects it against dull environments. This module is a DC module and its 8-point output has a voltage of 17.5 to 32 Volts DC. The Allen-Bradley 5069-OBV8S safety output module operates with a temperature range of 0 to 60 degrees Celsius maximum in a horizontal orientation and a range of 0 to 50 degrees Celsius maximum in a vertical orientation. The temperature should not be higher than the maximum rating since it could cause overheating and damages to the module. The output rating of the module is 1 Amp per channel. The wire needs to be made out of copper and the isolation voltage rating of the module is up to 250 Volts. All the wires need to be tight and secure to avoid failures during the use of the module.
