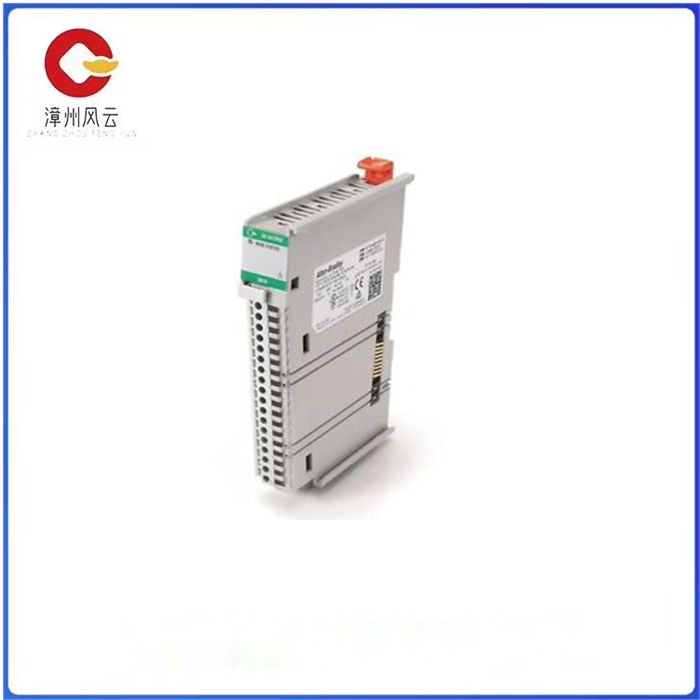

5069-OB16 是一款紧凑型 5000 分立输出模块

Allen-Bradley 5069-OB16 是一款分立输出模块，属于 Compact 5000 I/O 产品系列。它提供 10-32VDC 的输出电压范围，标称输出为 24VDC。它的输出电流额定值为每通道 0.5 A 电阻 @ 10...每个模块 32V DC 和 8 A 电阻 @ 10...最大 32V DC。每个通道能够承受 1 A 的最大浪涌电流，每点 10 ms，每 2 秒可重复一次。

与其他输出模块类似，该模块主要用于为电气负载供电和驱动。但是，5069-OB16 与在 12/24VDC 电压类别下运行的设备兼容。该模块的最小导通状态电压为 10VDC，最大导通状态电压为 32VDC，每个通道的最小导通状态电流为 1 mA。每个通道的输出延迟时间为 ？100 μs、±10 μs @ 25 °C （77 °F） @ 0.5 A，用于开到关和关到开的转换。该模块的输出最小脉冲宽度为 200 μs @ 0.5 A @ 25 °C （77 °F）。

5069-OB16 内部具有 Filed 功率损耗检测、每个通道的空载检测和单个输出短路、每个通道的输出过载和过热检测功能。它还配备了额定值为 36VDC 的反极性检测和过压检测。该模块具有内部保险丝保护功能。

即使控制器或模块已进入故障模式、编程模式和故障状态，也可以控制 5069-OB16 输出。可配置状态包括“保持上次状态”、“打开”和“关闭”，这是默认设置。

该模块的非工作冲击为 50g（3 个脉冲，11 ms）。该模块的振动为 5g，频率为 10 至 500 Hz。该模块的重量约为 175 克（0.39 磅）。此模块的机柜样式为“无”（开放式机柜）。Allen-Bradley 5069-OB16 的 ESD 抗扰度为 6 kV 接触放电和 8 kV 空气放电。Allen-Bradley 5069-OB16 的电压类别为 12-24V 直流电源。输出为 16 个通道（1 组，每组 16 个）。该模块的最大功耗为 3.25 W（16 个通道，电流为 0.5 A）。该模块的最大散热为 11.09 BTU/小时。该模块有 1 个绿色/红色模块状态指示灯和 16 个黄色/红色 I/O 状态指示灯。Allen-Bradley 5069-OB16 对静电放电敏感，这可能会导致内部损坏并影响操作。切勿触摸元件板上的连接器或引脚，切勿触摸设备内部的电路元件，并始终使用无静电工作站。

5069-OB16 是一款紧凑型 5000 分立输出模块

The Allen-Bradley 5069-OB16 is a discrete output module in the Compact 5000 I/O product family. It offers an output voltage range of 10-32VDC with a nominal output of 24VDC. Its output current rating is 0.5A per channel resistance @ 10... Each module 32V DC and 8A resistance @ 10... Maximum 32V DC. Each channel can withstand A maximum surge current of 1 A, 10 ms per point, and can be repeated every 2 seconds.

Similar to other output modules, this module is primarily used to power and drive electrical loads. However, the 5069-OB16 is compatible with devices operating in the 12/24VDC voltage category. The module has a minimum on-state voltage of 10VDC, a maximum on-state voltage of 32VDC, and a minimum on-state current of 1 mA per channel. What is the output delay time for each channel? 100 μs, ±10 μs @ 25 °C (77 °F) @ 0.5A for on-off and off-on conversion. The module has a minimum output pulse width of 200 μs @ 0.5A @ 25 °C (77 °F).

The 5069-OB16 has internal Filed power loss detection, no-load detection and single output short circuit of each channel, output overload and overheat detection of each channel. It is also equipped with reverse polarity detection and overvoltage detection with a rating of 36VDC. The module has an internal fuse protection function.

The 5069-OB16 output can be controlled even when the controller or module is in fault mode, programming mode, and fault state. Configurable states include "Keep Last State", "On", and "Off", which are the default Settings.

The module has a non-operating shock of 50g (3 pulses, 11 ms). The module vibrates at 5g with a frequency of 10 to 500 Hz. The module weighs about 175 grams (0.39 pounds). The cabinet of this module is "None" (open cabinet). The Allen-Bradley 5069-OB16 has ESD immunity of 6 kV contact discharge and 8 kV air discharge. The Allen-Bradley 5069-OB16's voltage class is 12-24V DC power supply. The output is 16 channels (1 group of 16 each). The module has a maximum power consumption of 3.25W (16 channels with a current of 0.5A). The module has a maximum heat dissipation of 11.09 BTU/ hour. The module has one green/red module status indicator and 16 yellow/red I/O status indicators. Allen-Bradley 5069-OB16 is sensitive to electrostatic discharge, which can cause internal damage and affect operation. Never touch connectors or pins on the component board, never touch circuit components inside the device, and always use a static-free workstation.
