5069-L306ER 是一款5380 CompactLogix控制器

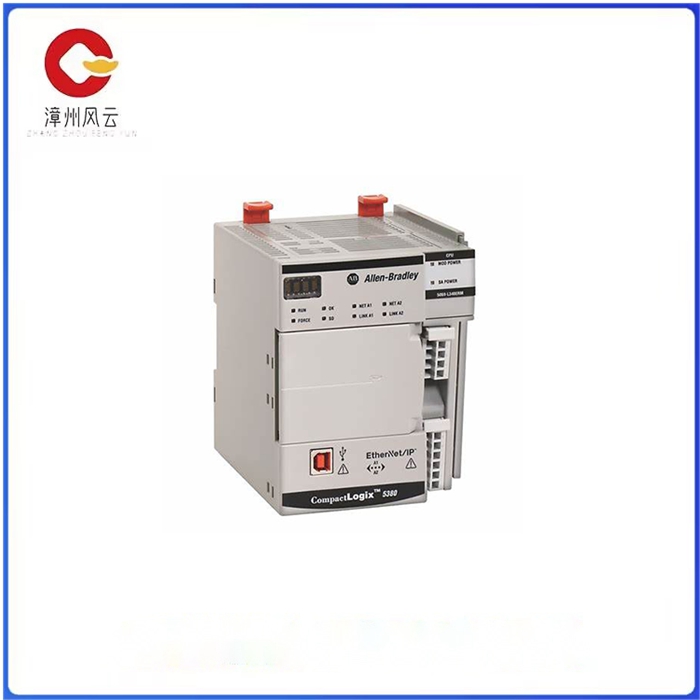

Allen-Bradley 5069-L306ER是一款5380 CompactLogix控制器。这是一种可编程自动化控制器(PAC)，具有紧凑和可扩展的硬件，用于不同行业的各种工业应用。

5069-L306ER具有嵌入式0.6 MB用户内存。该存储器不需要使用电池，因为它配备了能量存储解决方案，用于保留用户存储器的内容，而不需要电池。此外，5069-L306ER还配备了一个1784-SD2的安全数字(SD)卡，内存大小为2GB。它作为非易失性存储器，提供了从一个控制器到另一个控制器传输配置文件和用户程序的方便方法。可选配存储卡，如1784-SDHC8 (8gb)、1784-SDHC32 (32gb)、9509-CMSDCD4 (4gb) CodeMeter CmCard卡，增加非易失性内存容量。

5069- l306er支持安装多达8个5069紧凑型I/O模块。这种紧凑的I/O模块是小尺寸的I/O，有效地节省了面板空间，有助于降低5069控制器的安装成本。

5069-L306ER具有1个USB 2.0接口，传输速度高达12mbps，双以太网I/P通信接口支持线性、星形和环形拓扑。这些以太网端口能够在全双工模式下以10 / 100 / 1Gbps的传输速度交换数据。

5069-L306ER可配置多达32个任务，每个任务可配置1000个程序。该控制器还支持所有事件触发器。用户程序可以用继电梯(LD)、结构化文本(ST)、功能框图(FBD)和顺序功能图(SFC)语言编写。

该模块带有内置USB端口。该模块有2个以太网端口。该模块的以太网性能为10mbps、100mbps和1gbps，仅支持全双工。该模块支持的最大以太网/IP节点数为16个。该模块容量为0.6 MB。

Allen-Bradley 5069-L306ER尺寸为5.67 x 3.86 x 5.39英寸。该模块的重量约为0.768千克(1.693磅)。5069-L306ER的模块电源母线电压为18 ~ 32V DC。Allen-Bradley 5069-L306ER必须安装在ATEX/IECEx 2区认证的外壳中，最低入口等级至少为IP54(如EN/IEC 60529所定义)。当在2区应用时，该模块也可用于污染程度不高于污染2(如EN/IEC 60664-1所定义)的环境中。该模块不耐阳光或其他来源的紫外线辐射。外壳只能用工具才能进入。该模块的框类型为无(开放式框)。

5069-L306ER 是一款5380 CompactLogix控制器

The Allen-Bradley 5069-L306ER is a 5380 CompactLogix controller.  This is a Programmable Automation Controller (PAC) with a compact and expandable hardware, used in a wide variety of industrial applications in different industries.

The 5069-L306ER features an embedded 0.6 MB user memory.  This memory does not require use of battery as it is equipped with energy storage solution, used for retaining the contents of the user memory without the need of a battery.  Additionally, the 5069-L306ER is shipped with a 1784-SD2 Secure Digital (SD) Card with 2GB memory size.  This serves as the non-volatile memory and provides convenient method of transferring configuration files and user programs from one controller to another.  Optional memory cards may also be used such as 1784-SDHC8 (8 GB), 1784-SDHC32 (32 GB), and 9509-CMSDCD4 (4 GB) CodeMeter CmCard card for increasing non-volatile memory capacity.

The 5069-L306ER supports installation of up to Eight (8) 5069 Compact I/O modules.  This compact I/O modules are small form factor I/O that effectively saves panel space, contributing to lowered installation cost of this 5069 controller.

The 5069-L306ER has One (1) USB 2.0 port, capable of transmission speed up to 12 Mbps and Dual Ethernet I/P communication interface supporting linear, star and ring topology.  These Ethernet ports is able to exchange data at a transmission speed of 10 / 100 / 1Gbps in full-duplex mode.

The 5069-L306ER is configurable for up to 32 tasks with each task capable of 1000 programs.  All event triggers are supported by this controller as well.  User programs may be written in Relay Ladder (LD), Structured Texts (ST), Function Block Diagram (FBD) and Sequential Function Chart (SFC) languages.

This module comes with a built-in USB port.  This module has 2 ethernet ports.  The ethernet performance of this module is 10 Mbps, 100 Mbps, and 1 Gbps with full duplex only.  The maximum number of EtherNet/IP nodes supported by this module is 16.  The capacity of this module is 0.6 MB.

The Allen-Bradley 5069-L306ER measures 5.67 x 3.86 x 5.39 in.  The weight of this module is around 0.768 kg (1.693 lb).  The Module Power bus voltage of the 5069-L306ER is from 18 to 32V DC.  The Allen-Bradley 5069-L306ER must be installed in an ATEX/IECEx Zone 2 certified enclosure with a minimum entry level of at least IP54 (as defined in EN/IEC 60529).  This module is also used in an environment with a pollution degree no higher than Pollution 2 (as defined in EN/IEC 60664-1) when applied in Zone 2.  This module is not resistant to sunlight or other sources of UV radiation.  The enclosure should be accessible only with a tool.  The enclosure style of this module is none (open style enclosure).
