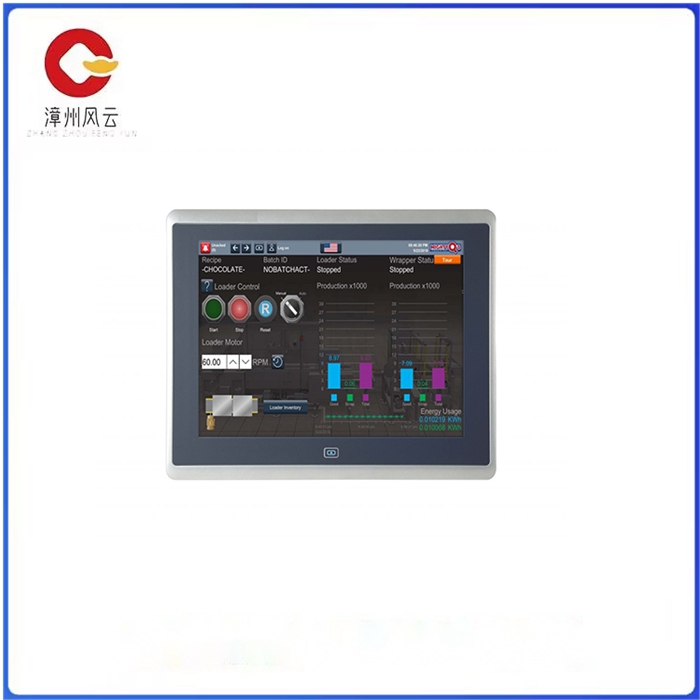

2715P-T12WD-B PanelView 5510 终端系列中的操作终端

2715P-T12WD-B 终端由 Allen-Bradley 设计，作为 PanelView 5510 终端系列中的操作终端。2715P-T12WD-B 端子类似于 Allen-Bradley 2715P-T12WD 端子型号，但 2715P-T12WD-B 端子出厂时没有印有 Allen-Bradley 标志。该终端由 12.1 英寸宽的触摸屏控制，并具有彩色图形。触摸屏是薄膜晶体管 （TFT） 液晶显示器 （LCD） 屏幕。触摸屏的面积为 10.3 x 6.4 英寸，分辨率为 800 x 600 像素。2715P-T12WD-B 终端的触摸屏由 LED 背光照亮，该背光无法更换，但在最高环境温度为 50,000 华氏度和 104 度半亮度下至少可持续使用 104 小时。该背光在正常运行期间使用约 5 瓦的能量。

Allen-Bradley 2715P-T12WD-B 操作界面终端具有 24 位彩色图形，可显示多达 1670 万种颜色。终端的内存分为 1 GB RAM 和 1 GB 非易失性存储内存，用于存储用户项目。2715P-T12WD-B 端子通过其 A 型 USB 端口连接到其他机器，这些端口在 5 伏直流电压下的额定电流为 0.5 安培。2715P-T12WD-B 端子的额定电压为 24 伏直流标称值和 18 至 30 伏直流输入电压。端子的额定输入电流为 7 安培。该终端配有 1 个安全数字或 （SD） 卡插槽，可将 Allen-Bradley 1784-SDx 卡用于外部存储。

2715P-T12WD-B PanelView 5510 终端系列中的操作终端

The 2715P-T12WD-B terminal was designed by Allen-Bradley as an operating terminal in the PanelView 5510 terminal family. The 2715P-T12WD-B terminal is similar to the Allen-Bradley 2715P-T12WD terminal model, but the 2715P-T12WD-B terminal is not shipped with the Allen-Bradley logo. The terminal is controlled by a 12.1 "wide touch screen and features color graphics. The touch screen is a thin film transistor (TFT) liquid crystal display (LCD) screen. The touchscreen measures 10.3 x 6.4 inches and has a resolution of 800 x 600 pixels. The touch screen of the 2715P-T12WD-B terminal is illuminated by an LED backlight that cannot be replaced but lasts for at least 104 hours at a maximum ambient temperature of 50,000 degrees Fahrenheit and a brightness of 104 degrees and a half. The backlight uses about 5 watts of energy during normal operation.

The Allen-Bradley 2715P-T12WD-B operator interface terminal features 24-bit color graphics that can display up to 16.7 million colors. The terminal's memory is divided into 1 GB RAM and 1 GB non-volatile storage memory for storing user items. The 2715P-T12WD-B terminal is connected to other machines through its Type A USB ports, which are rated for 0.5 amps at 5 volts DC. The 2715P-T12WD-B terminal is rated for 24 volts DC nominal and 18 to 30 volts DC input voltage. The rated input current of the terminal is 7 amps. The terminal is equipped with a secure digital or (SD) card slot that allows the Allen-Bradley 1784-SDx card to be used for external storage.
