1783-BMS10CL Stratix 5700 交换机 BMS

1783-BMS10CL Stratix 5700 交换机 BMS

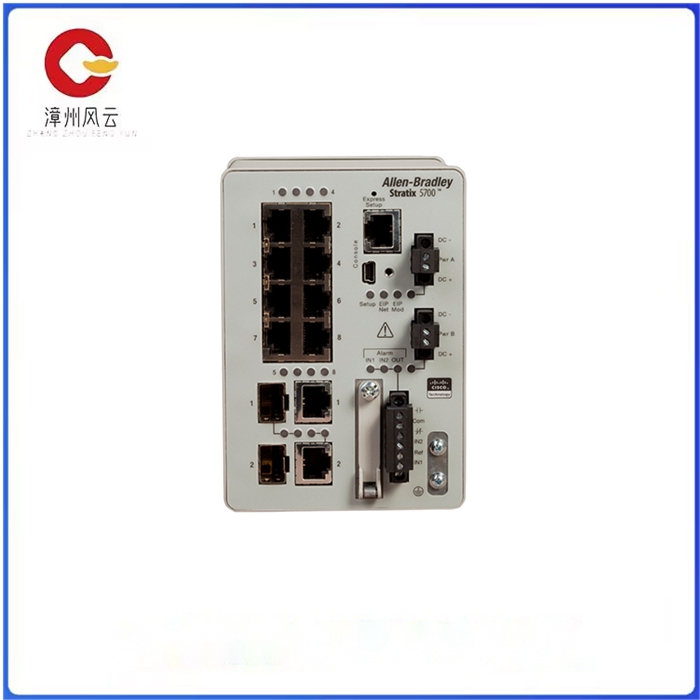

1783-BMS10CL 是罗克韦尔自动化（Allen-Bradley）的 Stratix 5700 系列工业以太网交换机的一个型号。这款交换机具有以下特点和规格：

端口配置：交换机共有 10 个端口，其中 2 个是组合端口（Combo Ports），8 个是 RJ45 端口。这些端口都支持快速以太网（Fast Ethernet）。

模块兼容性：五种不同的 SFP（Small Form-factor Pluggables）模块可以与组合端口一起使用，用于光纤连接。

网络功能：提供集成设备级环网（DLR，Device Level Ring）连接，有助于优化网络架构。此外，交换机还提供网络地址转换（NAT）功能，该功能允许从本地的设备级 IP 地址映射到工厂网络的 IP 地址。

供电选项：支持以太网供电（PoE，Power over Ethernet），这意味着可以通过以太网电缆为设备提供电源，减少了布线的复杂性。

安全特性：包含访问控制列表等安全功能，确保只有授权的设备、用户和流量可以访问网络。

扩展和存储：交换机支持可选的安全数字（SD）卡，用于简单的设备更换。特别地，可以安装在 1783-BMS10CL 交换机上的内存卡是 1784-SD1。

环境适应性：交换机的储存/运输温度范围为 -40 至 185 华氏度（-40 至 85 摄氏度），而工作温度范围为 -40 至 140 华氏度（-40 至 60 摄氏度）。

这款交换机是专为工业环境设计的，能够满足恶劣条件下的网络通信需求，并提供丰富的功能和配置选项。在轨道交通领域，这类交换机通常用于确保列车控制系统、安全系统和其他关键基础设施之间的可靠通信。

1783-BMS10CL Stratix 5700 交换机 BMS

The 1783-BMS10CL is a model of Rockwell Automation's (Allen-Bradley) Stratix 5700 series industrial Ethernet switch. This switch has the following features and specifications:

Port configuration: The switch has 10 Ports, of which 2 are Combo Ports and 8 are RJ45 ports. These ports all support Fast Ethernet.

Module compatibility: Five different SFP (Small Form-factor Pluggables) modules can be used with combination ports for fiber optic connections.

Network functionality: Provides integrated Device Level Ring (DLR) connectivity to help optimize network architecture. In addition, the switch provides network address translation (NAT), which allows mapping from local device-level IP addresses to IP addresses on the factory network.

Power supply options: Power over Ethernet (PoE) is supported, which means that power can be provided to the device through Ethernet cables, reducing the complexity of cabling.

Security features: Security features, such as access control lists, ensure that only authorized devices, users, and traffic can access the network.

Expansion and storage: The switch supports optional secure digital (SD) cards for simple device replacement. In particular, the memory card that can be installed on the 1783-BMS10CL switch is the 1784-SD1.

Environmental adaptability: The storage/transport temperature range of the switch is -40 to 185 degrees Fahrenheit (-40 to 85 degrees Celsius), while the operating temperature range is -40 to 140 degrees Fahrenheit (-40 to 60 degrees Celsius).

Designed for industrial environments, this switch is designed to meet the needs of network communications in harsh conditions and offers a wealth of features and configuration options. In the field of rail transit, such switches are often used to ensure reliable communication between train control systems, safety systems and other critical infrastructure.
