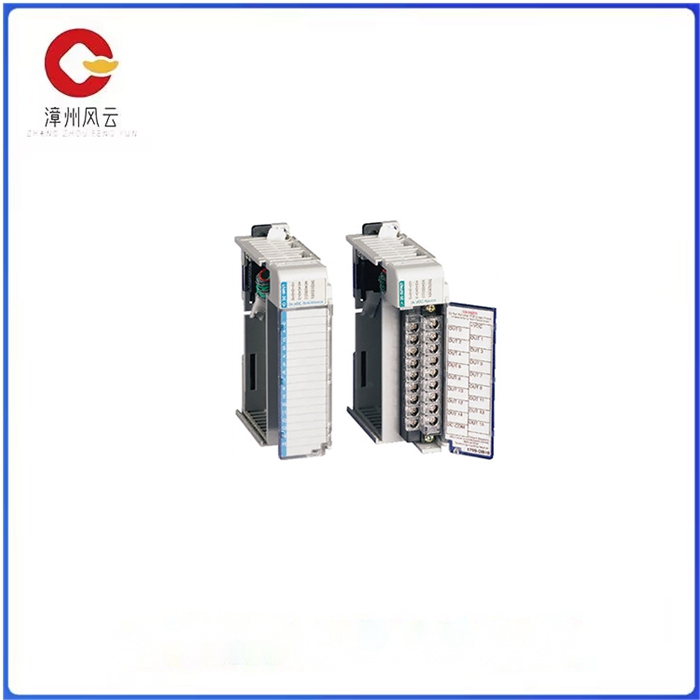

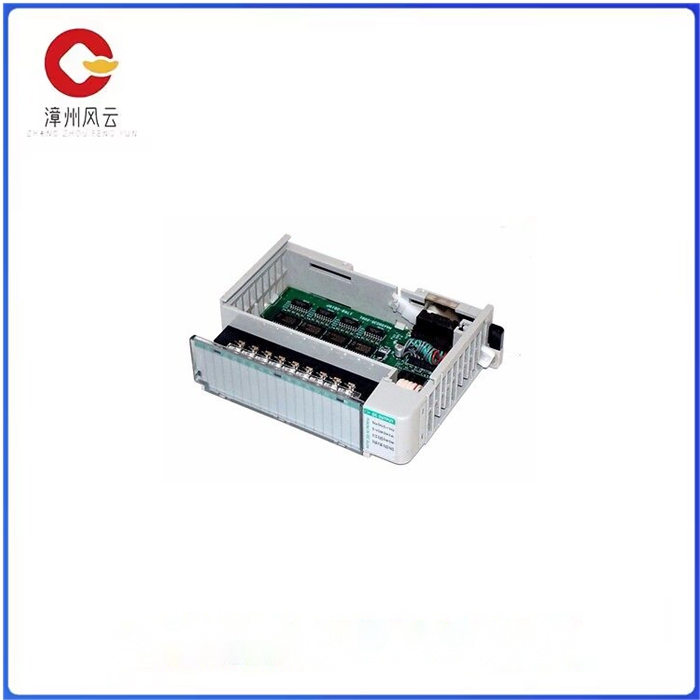

1769-OB16 罗克韦尔数字输出模块

1769-OB16 罗克韦尔数字输出模块

1769-OB16 是罗克韦尔自动化（Rockwell Automation）的一种数字量输出模块，用于 ControlLogix 控制器系列。这个模块的主要功能是将控制器内部的逻辑运算结果（通常是0或1的BOOL型数据）转换为外部的驱动信号，从而控制外部设备的开关状态。

以下是关于 1769-OB16 模块的一些详细信息：

数字量输出：该模块提供多个数字量输出通道，每个通道都可以独立地输出高电平（通常是24V直流）或低电平信号，用于驱动外部设备，如电机、阀门、指示灯等。

通道数量：1769-OB16 模块通常具有16个数字量输出通道，这意味着它可以同时控制多达16个外部设备的开关状态。

配置和灵活性：用户可以通过罗克韦尔自动化的编程软件（如 Studio 5000）对模块进行配置和编程，以满足特定的应用需求。每个输出通道都可以独立设置，包括输出类型（如脉冲、保持等）、输出状态（开/关）以及其他相关参数。

驱动能力：由于混砂车上的大部分数字量输出信号是直流信号（24V），1769-OB16 模块具有足够的驱动能力来驱动这些外部设备。它通常能够提供足够的电流来驱动大多数常见的工业负载。

通信和接口：1769-OB16 模块通过 ControlLogix 控制器的总线系统与其他模块和设备进行通信。它支持多种通信协议，如 EtherNet/IP、ControlNet 等，方便与整个控制系统进行集成。

可靠性和稳定性：作为罗克韦尔自动化产品的一部分**，1769-OB16** 模块经过严格的质量控制和测试，以确保其在恶劣的工业环境中具有高度的可靠性和稳定性。

需要注意的是，具体的模块功能、规格和参数可能会因产品升级或更新而有所变化。因此，在选择和使用 1769-OB16 模块时，建议参考罗克韦尔自动化的官方文档或联系相关技术支持人员，以获取最准确和详细的信息。此外，根据实际应用需求，用户还需要考虑负载类型、电流需求以及其他相关因素来选择合适的数字量输出模块。

1769-OB16 罗克韦尔数字输出模块

The 1769-OB16 is a digital output module from Rockwell Automation for use in the ControlLogix controller family. The main function of this module is to convert the logic operation result (usually 0 or 1 BOOL data) inside the controller into an external drive signal, so as to control the switching state of the external device.

Here are some details about the 1769-OB16 module:

Digital output: The module provides multiple digital output channels, each of which can independently output high (usually 24V DC) or low level signals for driving external devices such as motors, valves, indicators, etc.

Number of channels: The 1769-OB16 module typically has 16 digital output channels, which means that it can simultaneously control the switching state of up to 16 external devices.

Configuration and flexibility: Users can configure and program modules to meet specific application requirements through Rockwell Automation programming software such as Studio 5000. Each output channel can be set independently, including the output type (such as pulse, hold, etc.), output status (on/off), and other relevant parameters.

Drive capability: Since most of the digital output signal of the sand mixer is a DC signal (24V), the 1769-OB16 module has sufficient drive capability to drive these external devices. It is usually able to provide enough current to drive most common industrial loads.

Communication and interface: The 1769-OB16 module communicates with other modules and devices through the ControlLogix controller's bus system. It supports a variety of communication protocols, such as EtherNet/IP, ControlNet, etc., for easy integration with the entire control system.

Reliability and stability: As part of Rockwell Automation products **, the 1769-OB16** modules undergo rigorous quality control and testing to ensure a high degree of reliability and stability in harsh industrial environments.

It should be noted that specific module functions, specifications and parameters may change due to product upgrades or updates. Therefore, when selecting and using the 1769-OB16 module, it is recommended to refer to the official documentation of Rockwell Automation or contact the relevant technical support personnel for the most accurate and detailed information. In addition, according to the actual application requirements, users also need to consider the load type, current requirements and other relevant factors to choose the appropriate digital output module.
