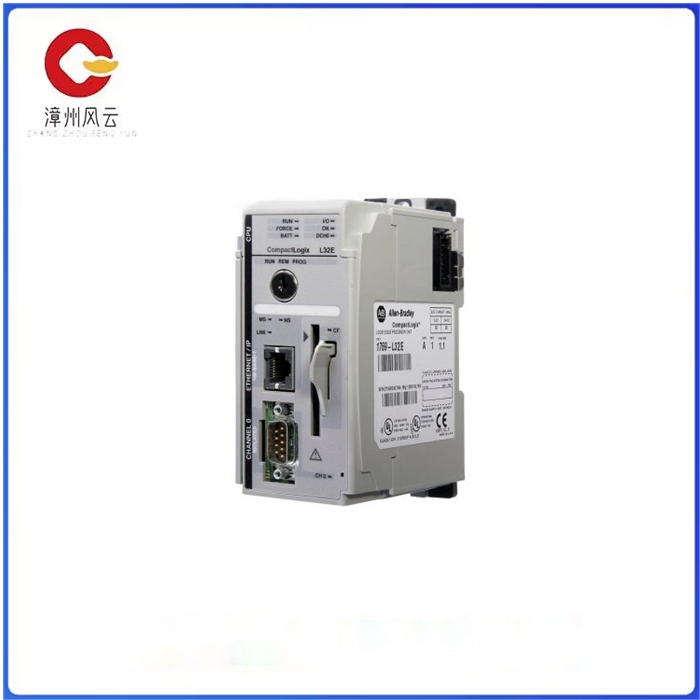

1769-L35E 是一款 1769 CompactLogix 控制器

Allen-Bradley 1769-L35E 1769 CompactLogix 控制器是一款可编程自动化控制器 （PAC），非常适合过程和工厂自动化行业的中型控制要求。该控制器具有集成的一 （1） 个 RS232 和一 （1） 个以太网通信端口，集成了 1.5MB 内存。

此控制器支持安装三十 （30） 个本地扩展组 I/O。它还允许使用两 （2） 根扩展电缆扩展多达三 （3） 个扩展组。

对于控制器修订版，16.对于修订版 17。对于 19.015，请使用 19.01.00，而对于 20.013，请使用 20.01.00。如果控制器版本为 21.00 及更高版本，请使用 Studio 5000 Logix Designer。

以太网可以通过RSNetworx配置为以太网，BOOTP-DHCP和提供的旋转开关。所需的通信是标准的 Cat5 或 Cat6 电缆，支持最远 100 m 的距离。它还支持 10/100 mbps 传输速率和自动协商功能。

Allen-Bradley 的 1769-L35E CompactLogix 控制器提供复杂的系统控制和通信域，并与各种工业机器系统兼容。它配备了以太网和 RS-232 串行通信端口，具有 1.5 兆字节的操作存储器。1769-L35E 兼容 1784-CF64 紧凑型闪存非易失性内存模块，最多可支持 30 个 I/O 模块，并配备 Allen-Bradley 1769-BA 可更换电池。1769-L35E 具有多达 30 个模块的扩展容量和 4 个模块的额定电源。1769-L35E 在 5 V DC 时的消耗电流为 660mA，散热率为 5.5 W，最大绝缘电压为 30 V，背板电流为 660 mA（DC 为 5 V）。尽管这是报废产品，但即使 1769-L35E 已经过时，我们也会继续销售它。

1769-L35E 可通过以太网使用 Allen-Bradley 1747-CP3/1756-CP3 电缆进行编程，并且可以使用 DIN 导轨（操作冲击等级为 20 G）或面板安装（操作冲击等级为 30 G）轻松安装。1769-L35E 在 10 至 500 赫兹的频率下具有 5 G 的工作振动。1769-L35E 可承受 1.1 至 1.8 N-m 的安装扭矩。它具有CISPA11 1 类（第 1 组）排放认证和开放式外壳。该 1769-L35E的重量约为0.30公斤（0.66磅）。它还具有 0 至 60 摄氏度（32 至 140 华氏度）的工作温度范围，-40 至 85 摄氏度（-40 至 185 华氏度）的存储温度范围，以及 0 至 95% 的相对湿度范围，无冷凝。本机可以安装多个不同的电源，包括 1769-PA4。

RS232 通信端口需要部件号为 1756-CP3 或 1747-CP3 串行电缆的兼容电缆。这也可以制造，因为 RS232 通信端口使用标准的 9 针 DB9 连接器。将电缆的长度限制为 15.2 m。它支持DF1、DH485通信协议。

该控制器符合 IEC-61131-3 对 PLC 和 PAC 编程语言的要求。该控制器支持梯形图、功能块、语句列表、结构化文本和序列功能图编程。这种编程语言可以组合使用，用于程序的不同部分。

1769-L35E 是一款 1769 CompactLogix 控制器

The Allen-Bradley 1769-L35E 1769 CompactLogix controller is a programmable automation controller (PAC) that is ideal for the mid-sized control requirements of the process and factory automation industries. The controller has integrated one (1) RS232 and one (1) Ethernet communication port with integrated 1.5MB memory.

This controller supports the installation of thirty (30) local extended group I/ OS. It also allows up to three (3) expansion groups to be extended using two (2) expansion cables.

For Controller revision, 16. For revision 17. For 19.015, use 19.01.00 and for 20.013, use 20.01.00. If the controller version is 21.00 or later, use the Studio 5000 Logix Designer.

Ethernet can be configured as Ethernet via RSNetworx, BOOTP-DHCP and provided rotation switch. The required communication is a standard Cat5 or Cat6 cable that supports distances up to 100 m. It also supports 10/100 mbps transfer rates and auto-negotiation.

Allen-Bradley's 1769-L35E CompactLogix controller provides complex system control and communication domains and is compatible with a wide range of industrial machine systems. It is equipped with Ethernet and RS-232 serial communication ports and has 1.5 megabytes of operating memory. The 1769-L35E is compatible with the 1784-CF64 compact flash non-volatile memory module, supports up to 30 I/O modules, and comes with an Allen-Bradley 1769-BA replaceable battery. The 1769-L35E has an expanded capacity of up to 30 modules and a rated power supply of 4 modules. The 1769-L35E has a current consumption of 660mA at 5 V DC, a heat dissipation rate of 5.5 W, a maximum insulation voltage of 30 V, and a backplane current of 660mA (5 V DC). Although this is a end-of-life product, we will continue to sell the 1769-L35E even though it is obsolete.

The 1769-L35E can be programmed over Ethernet using Allen-Bradley 1747-CP3/1756-CP3 cables and can be easily installed using a DIN rail (operating impact rating of 20 G) or panel mount (operating impact rating of 30 G). The 1769-L35E has an operating vibration of 5 G at frequencies from 10 to 500 Hz. The 1769-L35E can withstand mounting torques from 1.1 to 1.8 N-m. It has CISPA11 Class 1 (Group 1) emission certification and open housing. The 1769-L35E weighs about 0.30 kg (0.66 lb). It also has an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), a storage temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit), and a relative humidity range of 0 to 95% without condensation. The unit can be installed with several different power supplies, including 1769-PA4.

The RS232 communication port requires a compatible cable with part number 1756-CP3 or 1747-CP3 serial cable. This can also be manufactured because the RS232 communication port uses a standard 9-pin DB9 connector. Limit the length of the cable to 15.2m. It supports DF1 and DH485 communication protocols.

The controller complies with IEC-61131-3 requirements for PLC and PAC programming languages. The controller supports ladder diagram, function block, statement list, structured text and sequence function diagram programming. This programming language can be used in combination for different parts of a program.
