1756-IRT8I 模拟输入模块 用于电阻温度检测器热电偶

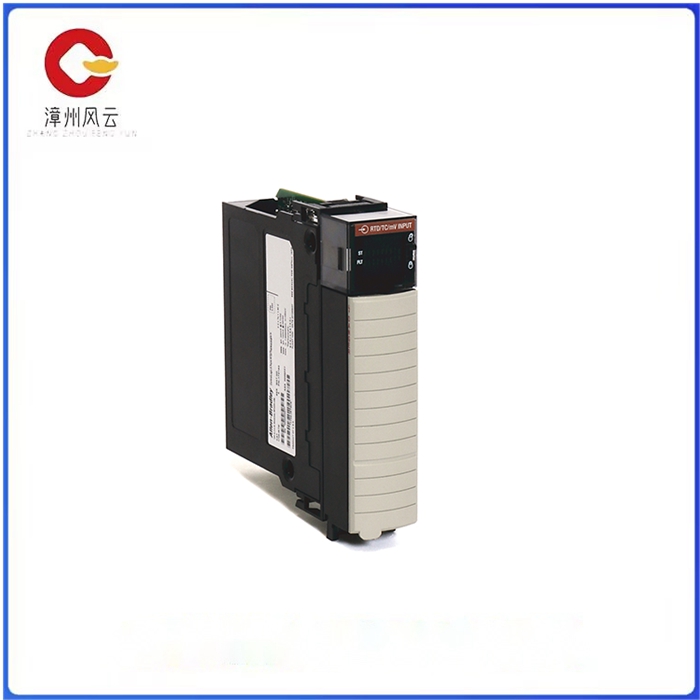

Allen-Bradley 1756-IRT8I是一个ControlLogix模拟输入模块，具有八(8)个可配置的通道，用于电阻温度检测器(RTD)、热电偶和毫伏输入。

该模块通过适马-德尔塔法实现高分辨率模数转换。转换后的数据保存到IEEE 32位浮点。人机界面(HMI)、监控和数据采集(SCADA)以及分布式控制系统(DCS)可以理想地访问转换后的数据。除了基于计算机的系统之外，信号数据可以用于计算，以及用于控制器的过程变量(PV ),例如比例+积分+微分(PID)。

该模块能够进行开路检测，热电偶输入和3线RTD的检测时间为2秒，4线RTD的检测时间为5秒。

该模块支持的输入范围是1 - 500？, 2 - 1000 ?, 4 - 2000 ?, 8 - 4000 ?和-100到100毫伏。该模块的总分辨率为24位。实际分辨率为0…510？:0.06 m？/计数0…1020？:0.12米？/计数0…2040？:0.25米？/计数0…4080？:0.50米？/count -101…101 mV: 0.01？v/计数。

支持的热电偶类型包括B型、C型、D型、E型、J型、K型、N型、R型、S型、T型、TXK/XK (L)型热电偶，带ITS-90线性化。兼容的RTD传感器包括100？PT 385，20？PT 385500？PT 385，1000？PT 385，100？PT 3916，20？PT 3916，500？PT 3916，1000？PT 3916，10？CU 427，120？倪672，100？倪618，120？倪618，200？NI 618和200？NI 618。兼容的毫伏信号应在-100至100毫伏范围内。

1756-IRT8I 模拟输入模块 用于电阻温度检测器热电偶

Allen-Bradley 1756-IRT8I is a ControlLogix analog input module with eight (8) configurable channels for resistance temperature detector (RTD), thermocouple, and millivolt inputs.

The module realizes high resolution analog-to-digital conversion by Sigma Delta method. The converted data is saved to IEEE 32-bit floating point. Human Machine interfaces (HMI), supervisory control and Data acquisition (SCADA), and distributed control systems (DCS) are ideal for accessing the converted data. In addition to computer-based systems, signal data can be used for computation, as well as process variables (PVS) for controllers, such as ratio + integral + differential (PID).

The module is capable of open circuit detection with thermocouple input and 3-wire RTD detection time of 2 seconds and 4-wire RTD detection time of 5 seconds.

The input range supported by this module is 1-500? 2-1000? , 4-2000? - 8-4000? And -100 to 100 millivolts. The total resolution of the module is 24 bits. The actual resolution is 0... A: 510? :0.06 m? / Count 0... 1020? :0.12 meters? / Count 0... 2040? :0.25 meters? / Count 0... 4080? :0.50 meters? /count -101… 101 mV: 0.01? v/ count.

Supported thermocouple types include Type B, Type C, Type D, Type E, Type J, Type K, Type N, Type R, Type S, type T, TXK/XK (L) thermocouples with ITS-90 linearization. Compatible RTD sensors include 100? PT 385,20? PT 385500? PT 385,1000? PT 385,100? PT 3916,20? PT 3916,500? PT 3916,1000? PT 3916,10? CU 427,120? Ni 672,100? Ni 618,120? Ni 618,200? NI 618 and 200? NI 618. Compatible millivolt signals should be in the range of -100 to 100 millivolts.
