1756-IF8I  ControlLogix系列 模拟量模块

1756-IF8I  ControlLogix系列 模拟量模块

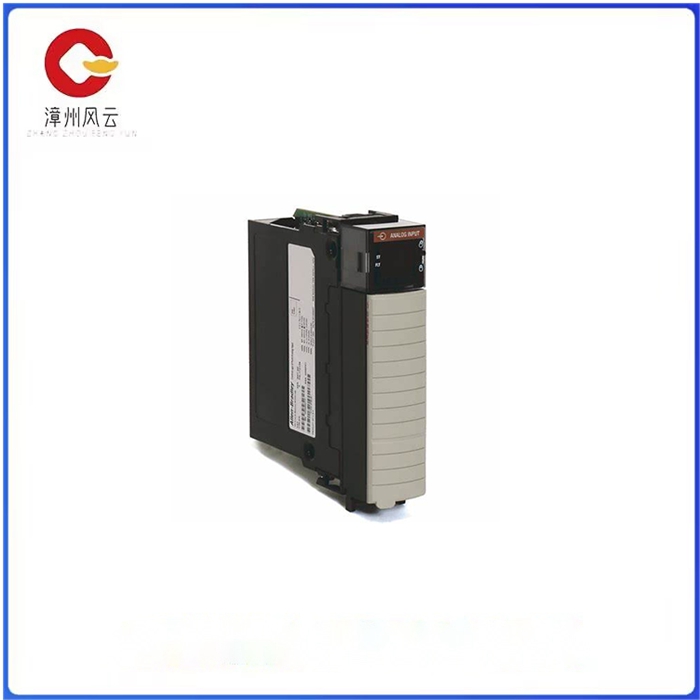

1756-IF8I 是罗克韦尔自动化（Rockwell Automation）ControlLogix系列中的一个模拟量输入模块。该模块用于接收模拟信号，如温度、压力、流量等传感器产生的信号，并将其转换为数字信号，供ControlLogix PLC（可编程逻辑控制器）进行处理和控制。

1756-IF8I 的特点：

模拟量输入：1756-IF8I 模块提供了8个模拟量输入通道，可以同时接收多个模拟信号。

高精度测量：该模块具有高精度模拟信号处理能力，能够准确地将模拟信号转换为数字信号，提供可靠的测量数据。

多种信号范围：1756-IF8I 支持多种信号范围，如0至10V、±5V、±10V、4至20mA等，适应不同传感器的输出信号要求。

配置灵活性：用户可以通过编程软件对模块进行配置，设置输入通道的范围、偏移、增益等参数，以满足特定的应用需求。

快速响应：该模块具有快速的数据处理能力，能够实时响应模拟信号的变化，确保控制系统的及时性和准确性。

高可靠性：罗克韦尔自动化的产品以高可靠性著称，1756-IF8I 模块也经过严格的质量控制和环境测试，适用于各种工业环境。

易于集成：该模块与ControlLogix PLC系列兼容，可以通过标准的工业接口和电缆方便地集成到现有的ControlLogix系统中。

应用场景：

1756-IF8I 模拟量模块广泛应用于需要接收和处理模拟信号的工业自动化系统中。它可以与各种传感器配合使用，如温度传感器、压力传感器、流量传感器等，实现对工业过程参数的实时监测和控制。这些参数对于保证产品质量、提高生产效率以及确保设备安全运行至关重要。

注意事项：

在使用 1756-IF8I 模块时，建议遵循以下几点：

仔细阅读模块的技术文档和手册，了解其特性和使用方法。

确保正确配置模块的输入通道和参数，以匹配传感器的输出信号。

在进行布线和连接时，遵循制造商的推荐和指南，确保信号的准确性和稳定性。

定期检查和维护模块，确保其正常工作并延长使用寿命。

如遇到故障或问题，建议联系制造商或专业维修人员进行检修和维修。

此外，由于 1756-IF8I 模块是ControlLogix系列的一部分，因此在使用时可能需要熟悉ControlLogix PLC的编程和配置软件。如果不确定如何进行配置或使用，建议咨询专业人士或罗克韦尔自动化的技术支持团队。

1756-IF8I  ControlLogix系列 模拟量模块

The 1756-IF8I is an analog input module in Rockwell Automation's ControlLogix family. The module is used to receive analog signals, such as those generated by sensors such as temperature, pressure, and flow, and convert them into digital signals for processing and control by ControlLogix PLC (Programmable Logic Controller).

1756-IF8I Features:

Analog input: The 1756-IF8I module provides eight analog input channels that can receive multiple analog signals at the same time.

High-precision measurement: The module has high-precision analog signal processing capabilities, which can accurately convert analog signals to digital signals and provide reliable measurement data.

Multiple signal ranges: The 1756-IF8I supports a variety of signal ranges, such as 0 to 10V, ±5V, ±10V, 4 to 20mA, etc., to adapt to the output signal requirements of different sensors.

Configuration flexibility: Users can configure the module through programming software to set parameters such as the range, offset, and gain of the input channel to meet specific application requirements.

Fast response: The module has fast data processing capabilities and can respond to changes in analog signals in real time to ensure the timeliness and accuracy of the control system.

High reliability: Rockwell Automation's products are known for their high reliability, and the 1756-IF8I module is also subject to rigorous quality control and environmental testing for use in a variety of industrial environments.

Easy integration: The module is compatible with the ControlLogix PLC family and can be easily integrated into existing ControlLogix systems via standard industrial interfaces and cables.

Application scenario:

The 1756-IF8I analog module is widely used in industrial automation systems that need to receive and process analog signals. It can be used with a variety of sensors, such as temperature sensors, pressure sensors, flow sensors, etc., to achieve real-time monitoring and control of industrial process parameters. These parameters are essential to ensure product quality, improve production efficiency and ensure the safe operation of equipment.

Note:

The following are recommended when using the 1756-IF8I module:

Read the module's technical documentation and manual carefully to understand its features and usage.

Make sure the input channels and parameters of the module are configured correctly to match the output signals of the sensor.

When wiring and connecting, follow the manufacturer's recommendations and guidelines to ensure signal accuracy and stability.

Regular inspection and maintenance of modules to ensure that they work properly and extend their service life.

If you encounter faults or problems, it is recommended to contact the manufacturer or professional maintenance personnel for overhaul and repair.

In addition, since the 1756-IF8I module is part of the ControlLogix family, familiarity with the programming and configuration software of the ControlLogix PLC may be required when using it. If you are unsure how to configure or use it, it is recommended to consult a professional or Rockwell Automation's technical support team.
