25C-D013N114 一款可调频率 PowerFlex 527 交流变频器

25C-D013N114 一款可调频率 PowerFlex 527 交流变频器

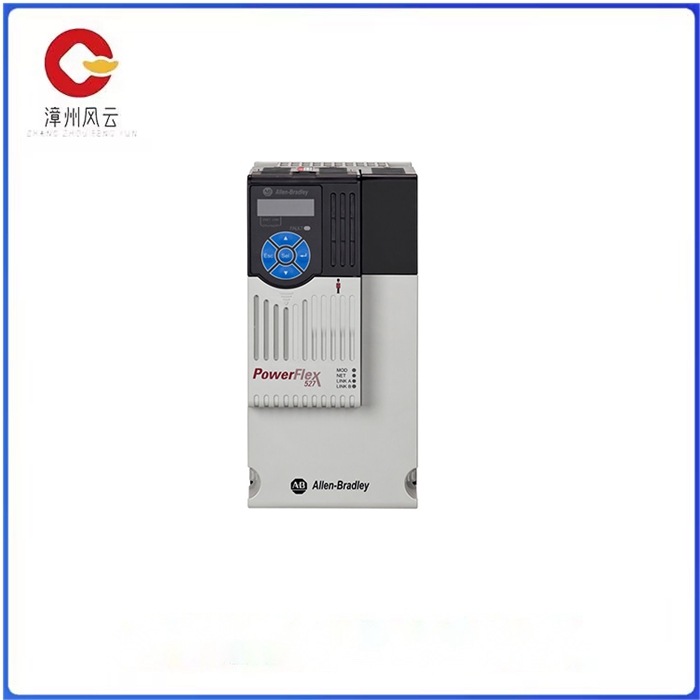

Allen-Bradley 25C-D013N114 是一款可调频率 PowerFlex 527 交流变频器，专门用于 Allen-Bradley Logix 控制器，适用于需要感应电机速度控制的机器应用。它配备了一个 5 位 16 段 LCD，带有人机界面模块，可支持多种语言，并具有描述性的 QuickView 滚动文本和集成键盘。该驱动器上配有可拆卸接线端子以帮助安装，其零堆叠功能允许您水平或垂直并排堆叠驱动器。该驱动器的双端口以太网/IP 具有设备级环网 （DLR） 功能，可以支持多种网络拓扑。

它还具有安全功能，其内置的安全扭矩关闭可以是硬接线安全，也可以是使用以太网/IP 网络的集成安全。该驱动器上可用的电机控制选项包括无传感器矢量控制、伏特/赫兹和闭环速度矢量控制。25C-D013N114 驱动器上的 I/O 接线是 2 个模拟输入，包括 1 个电压模拟输入和 1 个电流模拟输入、4 个数字输入、2 个光输出、2 个继电器输出和 1 个模拟输出。

该驱动器的输入电压范围为 323-528 伏，输出电流为 13 A，总瓦特损耗为 175 马力。该变频器在正常负载和重载应用下的额定输出是相同的，特别是 7.5 HP 和 5.5 kW。这款 C 型机架尺寸驱动器具有 IP20 开放式外壳防护等级和 -20-50 的环境工作温度oC.

25C-D013N114 一款可调频率 PowerFlex 527 交流变频器

The Allen-Bradley 25C-D013N114 is an adjustable frequency PowerFlex 527 AC inverter designed specifically for Allen-Bradley Logix controllers for machine applications requiring induction motor speed control. It comes with a 5-bit 16-segment LCD with a HMI module that supports multiple languages and features descriptive QuickView scrolling text and an integrated keyboard. There are detachable terminals on the drive to help with installation, and its zero stacking feature allows you to stack the drive horizontally or vertically side by side. The driver's dual-port Ethernet /IP features device-level ring networking (DLR) capabilities to support multiple network topologies.

It also has safety features and its built-in safe torque off can be either hardwired safe or integrated safe using Ethernet /IP networks. Motor control options available on this drive include sensorless vector control, volts/Hertz, and closed-loop speed vector control. The I/O wiring on the 25C-D013N114 driver is 2 analog inputs, including 1 voltage analog input and 1 current analog input, 4 digital inputs, 2 optical outputs, 2 relay outputs, and 1 analog output.

The drive has an input voltage range of 323-528 volts, an output current of 13 A and a total watt loss of 175 HP. The inverter's rated output is the same for normal load and heavy duty applications, in particular 7.5 HP and 5.5 kW. This Type C rack-size driver features an IP20 open housing protection rating and an ambient operating temperature oC of -20 to 50.
