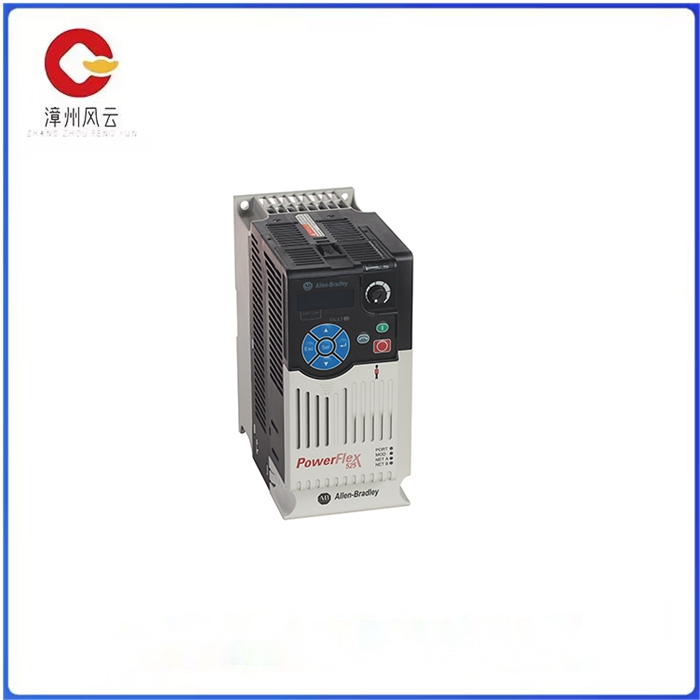

25B-D010N114 是一款PowerFlex 525可调变频器

25B-D010N114 是一款PowerFlex 525可调变频器

Allen-Bradley 25B-D010N114是一款PowerFlex 525可调变频器。该装置是一种电机控制设备，主要用于执行基本的电机操作，调节其速度并实现保护和能耗功能。

这种可调频率驱动器通常被其他人员称为变频驱动器 （VFD） 或变速驱动器或逆变器。该驱动器通过向 ints 输入端子提供电源电压来工作，电压范围为 380-480VAC，三相。它向电机提供输出电流和功率，输出额定值包括 0-460VAC，三相，额定电流为 10.5 A，功率为 4.0 kW （5.0 HP）。

对于基本的电机控制，该驱动器能够命令电机启动/停止;前进/后退/点动;。它的输出频率可以改变以调节电机。该驱动器的输出频率范围为 0-500 Hz，完全可编程。它通过多种可选的控制方法实现速度调节，例如伏特/赫兹、无传感器矢量控制 （SVC）、闭环速度矢量控制和永磁电机控制方法。通过这些控制方法，还可以实现扭矩控制。

25B-D010N114 是一款PowerFlex 525可调变频器

The Allen-Bradley 25B-D010N114 is a PowerFlex 525 adjustable frequency converter. The device is a motor control device that is mainly used to perform basic motor operations, regulate its speed and achieve protection and energy consumption functions.

Such adjustable frequency drivers are often referred to by others as variable frequency drives (VFDS) or variable speed drives or inverters. The driver works by providing a power supply voltage to the ints input terminals in the voltage range 380-480VAC, three phases. It provides output current and power to the motor, with output ratings ranging from 0-460VAC, three-phase, rated at 10.5A, and power of 4.0 kW (5.0 HP).

For basic motor control, the driver can command the motor to start/stop; Forward/backward/point moving; . Its output frequency can be changed to adjust the motor. The driver has an output frequency range of 0-500 Hz and is fully programmable. It achieves speed regulation through a variety of optional control methods, such as volts/Hertz, sensorless vector control (SVC), closed-loop velocity vector control and permanent magnet motor control methods. Through these control methods, torque control can also be achieved.
