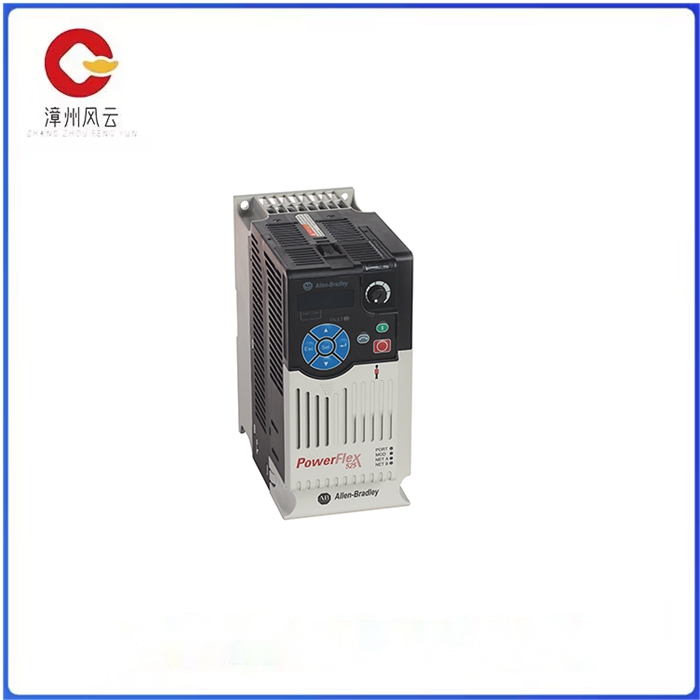

Allen-Bradley 25B-D010N104 可调频率交流变频器是一款带有独立可拆卸控制模块的变频器，可在从独立操作到简单系统集成的各种工业应用中提供全方位且经济高效的电机控制。其模块化设计使其易于现场配置和安装，用户还可以通过嵌入式以太网/IP 端口远程控制、配置和访问应用数据，这是传统驱动器的额外优势。

25B-D010N104 是 3 相 480 伏交流驱动器，输出电流为 10.5 安培，与某些 Powerflex 525 驱动器不同，额定输出功率为 5.0 马力。该变频器设计有内置保护功能，如自动总线电压调节和快速电流限制，还具有所有 PowerFlex 525 变频器通用的安全转矩关闭功能，可在发生与安全相关的停止时更快地响应应用，并保护内部组件和人员。25B-D010N104 设计有增强的功率损耗穿越时间和可拆卸金属氧化物压敏电阻，可在未接地条件下使用时提供接地故障保护。25B-D010N104 可编程为伏特/赫兹控制、无传感器矢量控制、闭环速度矢量控制和永磁电机控制。

它利用具有 2 至 16 kHz 可编程载波频率范围的脉宽调制信号，并提供从 0 到额定电机电压范围的可选输出电压。在 100：1 的速度范围内，它提供基本速度的 +/- 0.5% 的频率性能范围，无需编码器设备，运行效率为 97.5%。25B-D010N104 提供 2 个可编程加速/减速时间，以 0.1 秒的增量编程，最长可达 60 秒，还提供正常占空比过载额定值，即输出额定值的 110% 持续 60 秒，正常占空比过载额定值为 15%，持续 3 秒。它具有 I/O 2 个模拟输入、7 个数字输入、1 个模拟输出和 2 个继电器输出，用于额外控制。

25B-D010N104 使用嵌入式以太网/IP 端口进行通信，允许对以太网进行控制，并且它还具有集成的 RS-485 串行接口，允许多点通信配置。该驱动器是带有开放式机箱的框架 D 驱动器，其工作温度限制为 -20 至 50 摄氏度（-4 至 122 华氏度），不会降额。25B-D010N104 通过了 ATEX、KCC、KUV、CE、RCM 和 cUL-us 认证，重量约为 1.6 千克，总安装尺寸为 87 x 180 x 172 毫米。

PowerFlex 525 还配有嵌入式键盘，允许进行本地操作，例如启动/停止/点动/前进/后退命令以及参数配置。它与嵌入式液晶显示器 （LCD） 读数配对，允许用户监控驱动器的当前状态和当前参数菜单。

25B-D010N104 一款带有独立可拆卸控制模块

The Allen-Bradley 25B-D010N104 Adjustable Frequency AC converter is a frequency converter with a separate detachable control module that provides comprehensive and cost-effective motor control in a variety of industrial applications from standalone operation to simple system integration. Its modular design makes it easy to configure and install in the field, and users can also remotely control, configure and access application data via an embedded Ethernet /IP port, an additional advantage over traditional drives.

The 25B-D010N104 is a 3-phase 480-volt AC drive with an output current of 10.5 amps, and unlike some Powerflex 525 drives, is rated at 5.0 HP. The drive is designed with built-in protection features such as automatic bus voltage regulation and fast current limiting, as well as a safe torque shut-off feature common to all PowerFlex 525 drives to respond faster to applications in the event of safety-related stops and to protect internal components and personnel. The 25B-D010N104 is designed with enhanced power loss traverse time and removable metal oxide varistors to provide ground fault protection when used in ungrounded conditions. The 25B-D010N104 is programmable for volt/Hertz control, sensorless vector control, closed-loop velocity vector control and permanent magnet motor control.

It utilizes pulse-width-modulated signals with a programmable carrier frequency range of 2 to 16 kHz and offers optional output voltages from 0 to the rated motor voltage range. In a speed range of 100:1, it provides a frequency performance range of +/ -0.5% of the base speed, without encoder equipment, and an operating efficiency of 97.5%. The 25B-D010N104 offers two programmable acceleration/deceleration times, programmed in 0.1 second increments for up to 60 seconds, as well as a normal duty cycle overload rating of 110% of the output rating for 60 seconds and a normal duty cycle overload rating of 15% for 3 seconds. It has I/O 2 analog inputs, 7 digital inputs, 1 analog output, and 2 relay outputs for additional control.

The 25B-D010N104 communicates using an embedded Ethernet /IP port that allows for control over Ethernet, and it also has an integrated RS-485 serial interface that allows for multipoint communication configurations. The drive is a frame D drive with an open chassis that has an operating temperature limit of -20 to 50 degrees Celsius (-4 to 122 degrees Fahrenheit) with no derating. The 25B-D010N104 is ATEX, KCC, KUV, CE, RCM and cUL-us certified and weighs approximately 1.6 kg with a total mounting size of 87 x 180 x 172 mm.

The PowerFlex 525 also has an embedded keyboard that allows local operations such as start/stop/click/forward/back commands as well as parameter configuration. It is paired with an embedded liquid crystal display (LCD) reading, allowing the user to monitor the current status of the drive and the current parameter menu.
