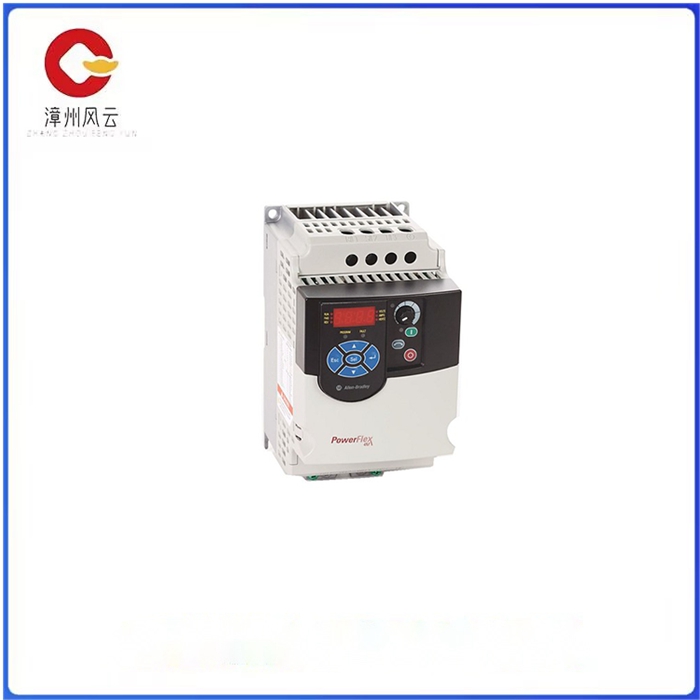

Allen-Bradley 22F-D6P0N103 是一款 PowerFlex 4M 可调频率交流变频器。该驱动器主要用于实现速度控制以及降低工业交流电机的能耗。该驱动器配备 IP20、NEMA UL 型开放式外壳，带有集成的人机接口模块 （HIM），但是，它没有集成 IGBT 制动机构以及 EMC 滤波器。

22F-D6P0N103 的集成 HIM 具有四 （4） 位显示屏和十 （10） 个 LED 指示灯，旨在提供驱动器状态和操作的读数。它带有导航按钮、开始/停止按钮以及用于调制输出频率的本地电位器，直接影响所连接交流电机的速度。可选地，远程手持键盘也可用于提供操作灵活性。此可选键盘具有 NEMA/UL Type 4X 和 NEMA/UL Type 1 手持式 LCD 键盘的防护等级。

22F-D6P0N103 支持 DIN 导轨安装，以及通过随附的安装片直接安装面板。此外，它还支持在安装 PowerFlex 4M 驱动器阵列时进行零堆叠配置。这种零堆叠选项可有效减少面板空间消耗，因为零堆叠允许以非常小的间隙安装驱动器。

此外，22F-D6P0N103 还配有可拆卸的金属氧化物压敏电阻 （MOV），允许驱动器用于未接地的系统。它还具有继电器预充电功能，可有效限制浪涌电流。该驱动器具有伏特/赫兹 （V/Hz） 控制性能，并自动提供 IR 补偿。该驱动器具有集成的 RS485 通信接口。

此外，此驱动器未配备符合 CE 标准的过滤器。22F-D6P0N103 驱动器在运行时能够产生 2.2 千瓦或 3 马力的输出功率。它采用三相交流电压运行，额定输入功率为 480 伏交流电。它的框架尺寸为 B，物理尺寸为宽 3.94 英寸、高 6.85 英寸和深 5.35 英寸。Allen-Bradley/Rockwell Automation PowerFlex 4 22F-D6P0N103 变频器设计紧凑，重量约为 4.6 磅。它被设计为安装在大多数应用中的面板上，但它也支持某些应用的DIN导轨安装。该驱动器可以安装在不同的工业网络设置中。22F-D6P0N103 驱动器可以安全运行的最高环境温度为 50 摄氏度或 122 华氏度。它在运行期间支持 50 至 60 赫兹的频率。22F-D6P0N103 驱动器适用于输送系统和纺织行业的不同应用。

22F-D6P0N103 可调频率交流变频器

The Allen-Bradley 22F-D6P0N103 is a PowerFlex 4M adjustable frequency AC converter. The driver is mainly used to achieve speed control and reduce the energy consumption of industrial AC motors. The driver is equipped with IP20, NEMA UL type open housing with integrated Human Machine Interface module (HIM), however, it does not integrate IGBT braking mechanism and EMC filter.

The integrated HIM of the 22F-D6P0N103 features a four (4) bit display and ten (10) LED indicators designed to provide readings of drive status and operation. It has a navigation button, a start/stop button, and a local potentiometer for modulating the output frequency, which directly affects the speed of the connected AC motor. Optionally, a remote handheld keyboard can also be used to provide operational flexibility. This optional keyboard has the protection rating of NEMA/UL Type 4X and NEMA/UL Type 1 handheld LCD keyboards.

The 22F-D6P0N103 supports DIN rail mounting and direct panel mounting via the included mounting strip. In addition, it supports a zero-stack configuration when installing PowerFlex 4M drive arrays. This zero stacking option effectively reduces panel space consumption because zero stacking allows drivers to be installed with very small gaps.

In addition, the 22F-D6P0N103 comes with a detachable metal oxide varistor (MOV), allowing the driver to be used in ungrounded systems. It also has a relay pre-charge function, which can effectively limit the surge current. The driver has Volt/Hertz (V/Hz) control performance and automatically provides IR compensation. The driver has an integrated RS485 communication interface.

In addition, this drive is not equipped with CE compliant filters. The 22F-D6P0N103 drive is capable of producing 2.2 kW or 3 HP of output power when in operation. It operates with three-phase AC voltage and has a rated input power of 480 volts AC. Its frame size is B, and its physical dimensions are 3.94 inches wide, 6.85 inches high, and 5.35 inches deep. Allen-Bradley/Rockwell Automation PowerFlex 4 22F-D6P0N103 inverter is compact and weighs approximately 4.6 pounds. It is designed to be mounted on panels in most applications, but it also supports DIN rail mounting for some applications. The drive can be installed in different industrial network Settings. The 22F-D6P0N103 drive can safely operate at a maximum ambient temperature of 50 degrees Celsius or 122 degrees Fahrenheit. It supports frequencies of 50 to 60 Hertz during operation. The 22F-D6P0N103 drive is suitable for different applications in conveying systems and the textile industry.
