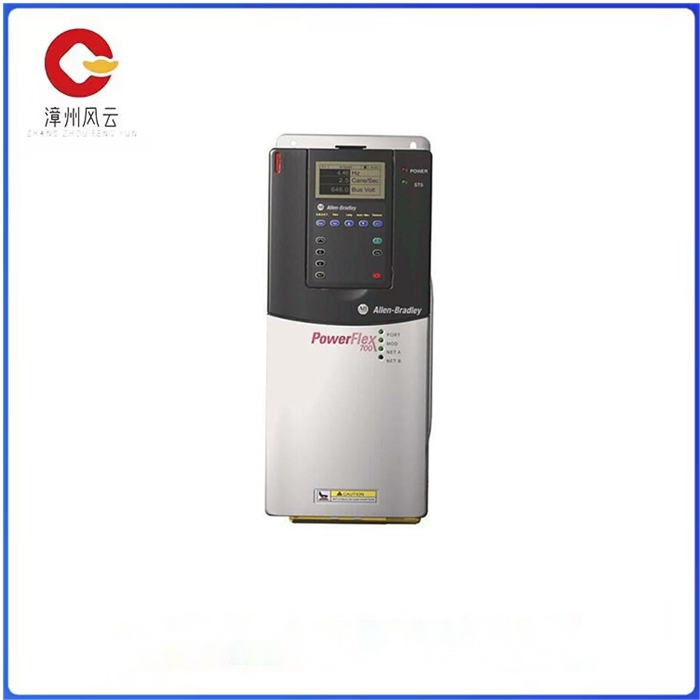

Allen-Bradley 20BD248A0ANNANC0 是一款可调频率三相 PowerFlex 700 交流变频器，具有 480V 交流额定电压，在 480V/60 Hz 输入下具有 248 A 和 200 HP 的正常负载额定值。它使用框架尺寸 6，并具有 NEMA 1 型 IP20 外壳。此驱动器的人机接口模块 （HIM） 为空，并附带手动文档。虽然 20BD248A0ANNANC0 驱动器具有 EMC 滤波器和 CM 扼流圈，但它没有配备内部制动电阻器，只有标准控制。该驱动器可以安装在机柜内部或外部，但重要的是其位置没有腐蚀性颗粒或挥发性蒸气、气体或灰尘。它还应该在运行时具有 0 到 50 °C 的环境温度，在驱动器存储时具有 -40 到 70 °C。其相对湿度也应在5%至95%之间，并具有1级或2级周围环境污染程度。运行时，20BD248A0ANNANC0 驱动器在 11 ms （+/- 1 ms） 内具有 1 g 峰值工作振动和 15 g 峰值工作冲击。20BD248A0ANNANC0 驱动器有 3 种可用的电机控制，即每赫兹伏特控制、使用专利 Allen-Bradley Force 技术的矢量控制和无传感器矢量控制。它还具有其他功能，例如惯性穿越、飞启动、整体过程 PI 控制、速度和扭矩规定、高速模拟输入、位置索引器/速度曲线器、电流限制和总线电压调节、TorqProve 和编程灵活性。

Allen-Bradley 20BD248A0ANNANC0 是一款 PowerFlex 700 可调频率交流变频器。该驱动器主要具有 380-480 伏交流电 3 相的输入电源电压范围，并提供 0-460 伏交流电 3 相的输出电压。它通过其适用的输出功率（正常负载时为 200 马力）和重载运行时为 150 马力，连续输出电流为 248 安培。

作为 PowerFlex 700 变频器产品系列的一部分，额定功率为 200 马力，它具有固有的功能，例如集成式 EMC 滤波;内部沟通;集成式动态制动晶体管。它还能够采用多种电机控制方法，包括用于风扇和泵应用的伏特/赫兹 （V/Hz）;用于扭矩调节的无传感器矢量控制 （SVC）。20BD248A0ANNANC0 专门配备了矢量控制功能，与 SVC 相比，可提供出色的扭矩调节，包括出色的低速/零速性能。矢量控制方法利用了Allen-Bradley的专利技术，FORCE技术。

此外，20BD248A0ANNANC0 具有快速电流限制和总线电压调节功能，可实现最大的加速和减速时间，而不会导致驱动器跳闸。它支持快速启动，用于与旋转负载建立平稳和瞬时连接，无需速度反馈，也不受指令电机旋转方向的影响。它还具有惯性穿越功能，可利用存储的惯性防止驱动器跳闸。此功能在停电时很实用。

20BD248A0ANNANC0 还配备了集成比例 + 积分 （P+I） 控制器算法，使驱动器成为独立控制器。这样就无需外部 PID 控制器来操作驱动器。它还具有TorqProve功能，可确保在驱动和机械制动器之间转移控制权期间控制负载。

20BD248A0ANNANC0 可调频率交流变频器

Allen-Bradley 20BD248A0ANNANC0 is an adjustable frequency three-phase PowerFlex 700 AC inverter with A 480V AC rating and normal load ratings of 248A and 200 HP at 480V/60 Hz inputs. It uses frame size 6 and has a NEMA Type 1 IP20 housing. The Man Machine interface module (HIM) for this drive is empty and comes with manual documentation. Although the 20BD248A0ANNANC0 driver has an EMC filter and CM choke, it is not equipped with an internal brake resistor, only standard controls. The drive can be installed inside or outside the cabinet, but it is important that its location is free of corrosive particles or volatile vapors, gases, or dust. It should also have an ambient temperature of 0 to 50 °C when running and -40 to 70 °C when the drive is stored. Its relative humidity should also be between 5% and 95%, and have a level 1 or 2 ambient pollution degree. In operation, the 20BD248A0ANNANC0 driver has 1 g peak operating vibration and 15 g peak operating shock in 11 ms (+/ -1 ms). The 20BD248A0ANNANC0 driver has three available motor controls, namely per-hertz volt control, vector control using patented Allen-Bradley Force technology, and sensorless vector control. It also has additional features such as inertial crossing, fly start, overall process PI control, speed and torque specification, high-speed analog input, position indexer/speed curve, current limiting and bus voltage regulation, TorqProve, and programming flexibility.

The Allen-Bradley 20BD248A0ANNANC0 is a PowerFlex 700 adjustable frequency AC inverter. The driver mainly has an input power supply voltage range of 380-480 volts AC 3 phase and provides an output voltage of 0-460 volts AC 3 phase. It has a continuous output current of 248 amps through its applicable output power (200 HP at normal load) and 150 HP at heavy load operation.

As part of the PowerFlex 700 inverter product family, rated at 200 HP, it has inherent features such as integrated EMC filtering; Internal communication; Integrated dynamic brake transistor. It also enables a variety of motor control methods, including volts/Hertz (V/Hz) for fan and pump applications; Sensorless vector control (SVC) for torque regulation. The 20BD248A0ANNANC0 is specially equipped with vector control to provide excellent torque regulation compared to the SVC, including excellent low/zero speed performance. The vector control method utilizes Allen-Bradley's patented technology, FORCE technology.

In addition, the 20BD248A0ANNANC0 features fast current limiting and bus voltage regulation for maximum acceleration and deceleration times without causing the driver to trip. It supports fast start for a smooth and instantaneous connection to a rotating load without speed feedback and is not affected by the direction of rotation of the command motor. It also has an inertial traverse function, which can use stored inertia to prevent the drive from tripping. This feature is useful during power outages.

The 20BD248A0ANNANC0 is also equipped with an integrated proportional + integral (P+I) controller algorithm that makes the drive a standalone controller. This eliminates the need for an external PID controller to operate the drive. It also has a TorqProve function, which ensures that the load is controlled during the transfer of control between the drive and the mechanical brake.
