20AC060A0AYNANC0 控制系统

20AC060A0AYNANC0 控制系统

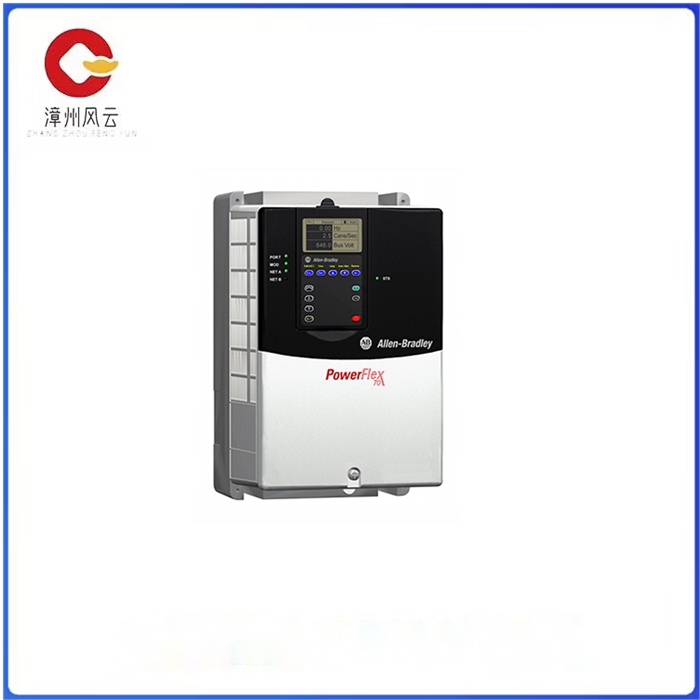

20AC060A0AYNANC0 是一款 PowerFlex 70 系列 Allen-Bradley 驱动器。20AC060A0AYNANC0 的输入电压为 400 伏交流电，是三相驱动器。20AC060A0AYNANC0 的输出电流为 60 安培，采用面板安装式 IP20 NEMA Type 1 和防腐蚀涂层。20AC060A0AYNANC0 还提供框架尺寸 E。该驱动器具有基本加选项，并设计有空白的 HMI 插槽。

20AC060A0AYNANC0没有通信模块。这款 PowerFlex 70 变频器采用无制动电阻的制动 IGBT，并根据 CE EMC 指令设计了第二个环境滤波器。20AC060A0AYNANC0 支持人机界面。通常，PowerFlex 70 驱动器系列支持 LCD HMI。HMI 支持一个大而易于阅读的 7 线背光显示屏。该显示器还支持多种语言，并具有替代控制键。

20AC060A0AYNANC0 的环境工作温度范围为 0 至 50 摄氏度，而 20AC060A0AYNANC0 的存储温度范围为 -40 至 70 摄氏度。该变频器还具有 5% 至 95% 的相对湿度额定值，无冷凝。Allen-Bradley 驱动器具有不同的功能，因此它实现了最大的控制和性能。无传感器矢量控制有助于驱动器在不同的速度范围内产生高扭矩水平。这些驱动器还带有具有总线电压调节功能的快速电路限制。这有助于在不跳闸的情况下实现最大的加速和减速。20AC060A0AYNANC0 具有可调节的总线欠压跳闸，并配有散热器，可通过微处理器供电的过温跳闸进行有效监控。20AC060A0AYNANC0 在满载时具有 15 毫秒的功率直通。

20AC060A0AYNANC0 控制系统

The 20AC060A0AYNANC0 is a PowerFlex 70 series Allen-Bradley drive. The input voltage of 20AC060A0AYNANC0 is 400 volts AC. It is a three-phase driver. The 20AC060A0AYNANC0 has an output current of 60 amps and is panel mounted with IP20 NEMA Type 1 and corrosion resistant coating. 20AC060A0AYNANC0 also provides frame size E. The drive has a basic plus option and is designed with a blank HMI slot.

None. 20AC060A0AYNANC0 No communication module is available. The PowerFlex 70 inverter uses a braking IGBT with no braking resistance and a second environmental filter designed according to the CE EMC directive. 20AC060A0AYNANC0 Supports the man-machine interface. Typically, the PowerFlex 70 drive family supports LCD HMI. The HMI supports a large and easy to read 7-wire backlit display. The display also supports multiple languages and has alternative control keys.

The ambient operating temperature of 20AC060A0AYNANC0 ranges from 0 to 50 degrees Celsius, while the storage temperature of 20AC060A0AYNANC0 ranges from -40 to 70 degrees Celsius. The inverter also has a relative humidity rating of 5% to 95% with no condensation. The Allen-Bradley drive has different features, so it achieves maximum control and performance. Sensorless vector control helps the drive produce high torque levels over different speed ranges. These drivers also come with fast circuit limits with bus voltage regulation. This helps achieve maximum acceleration and deceleration without tripping. The 20AC060A0AYNANC0 has an adjustable bus undervoltage trip and is equipped with a heat sink for effective monitoring through microprocessor-powered overtemperature trips. The 20AC060A0AYNANC0 has a power pass through of 15 ms at full load.
