20AC037A0AYNANC0 PowerFlex70 400V交流 11KW

20AC037A0AYNANC0 PowerFlex70 400V交流 11KW

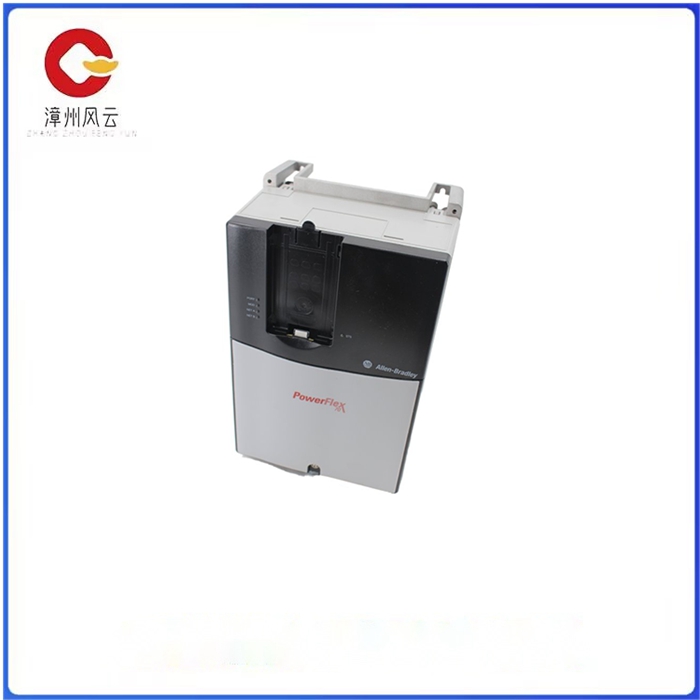

Allen-Bradley 的 18.5 千瓦 20AC037A0AYNANC0 是一款可调频驱动器。它是一款 PowerFlex 70 系列交流变频器，采用面板安装式 NEMA/UL Type 1 外壳，并包括一个制动 IGBT。20AC037A0AYNANC0 支持增强控制。如果需要这些功能，则需要订购用于反馈和安全转矩关闭的可选模块。驱动器的输出功率为 18.5 千瓦（25 马力）。驱动器的输出电流为 37 安培，具有 3 相 400 伏交流输入。D 框架 20AC037A0AYNANC0 的重量约为 20 磅，尺寸如下：高 13.78 英寸，宽 8.66 英寸，深 7.08 英寸。

内置通信插槽不可用。Allen-Bradley 提供 19 种可选通信模块，包括 RS-485 DF1、ControlNet、Modbus/TCP、BACnet 和以太网模块。20AC037A0AYNANC0 的交流输入过压和欠压跳闸值为 475 伏交流电和 138 伏交流电。驱动器可以运行的输入电压范围为 342 至 528 伏交流电，驱动器可在输出端提供全功率的输入电压范围为 400 至 528 伏交流电。驱动器运行期间耗散的总功率为 404.3 瓦，其中 363.8 瓦为外部功率，40.5 瓦为内部功率。驱动器可以在不降额的情况下运行的最大高度为 3000 英尺。

20AC037A0AYNANC0 PowerFlex70 400V交流 11KW

Allen-Bradley's 18.5 kW 20AC037A0AYNANC0 is an adjustable frequency driver. It is a PowerFlex 70 series AC inverter in a panel mounted NEMA/UL Type 1 housing and includes a brake IGBT. 20AC037A0AYNANC0 Enhanced control is supported. If these features are required, an optional module for feedback and safe torque shutdown will need to be ordered. The drive has an output of 18.5 kW (25 HP). The driver has an output current of 37 amps with a 3-phase 400 volt AC input. The D-frame 20AC037A0AYNANC0 weighs approximately 20 pounds and has the following dimensions: 13.78 inches high, 8.66 inches wide, and 7.08 inches deep.

The built-in communication slot is unavailable. Allen-Bradley offers 19 optional communication modules, including RS-485 DF1, ControlNet, Modbus/TCP, BACnet and Ethernet modules. 20AC037A0AYNANC0 AC input overvoltage and undervoltage trip values are 475 volts AC and 138 volts AC. The driver can operate in the input voltage range of 342 to 528 volts AC, and the driver can provide full power at the output in the input voltage range of 400 to 528 volts AC. The total power dissipated during the operation of the drive is 404.3 watts, of which 363.8 watts is external power and 40.5 watts is internal power. The maximum height at which the drive can operate without derating is 3000 feet.
