Y-3023-2-H00AA Y系列无刷伺服电机 机器人伺服驱动

Y-3023-2-H00AA Y系列无刷伺服电机 机器人伺服驱动

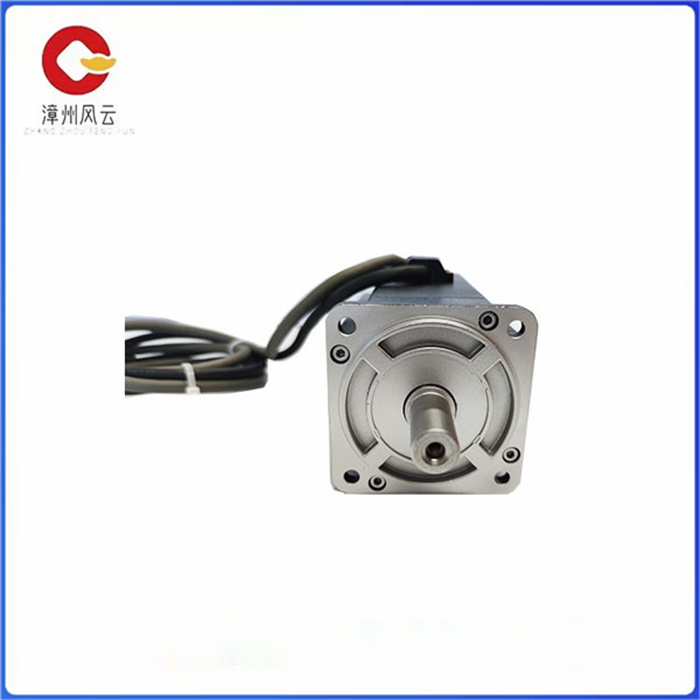

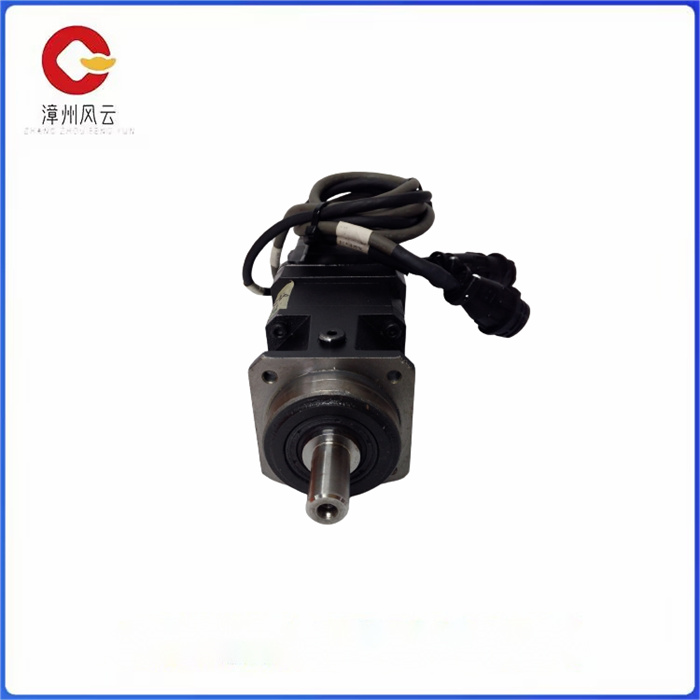

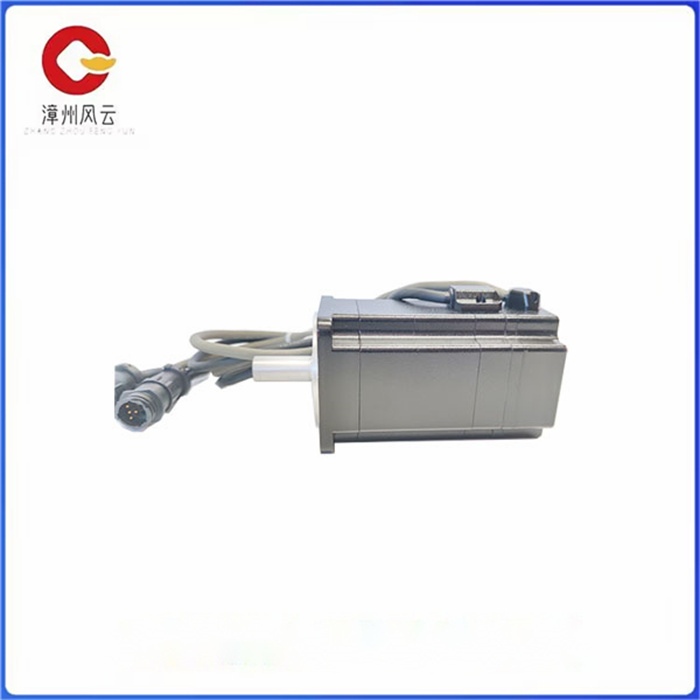

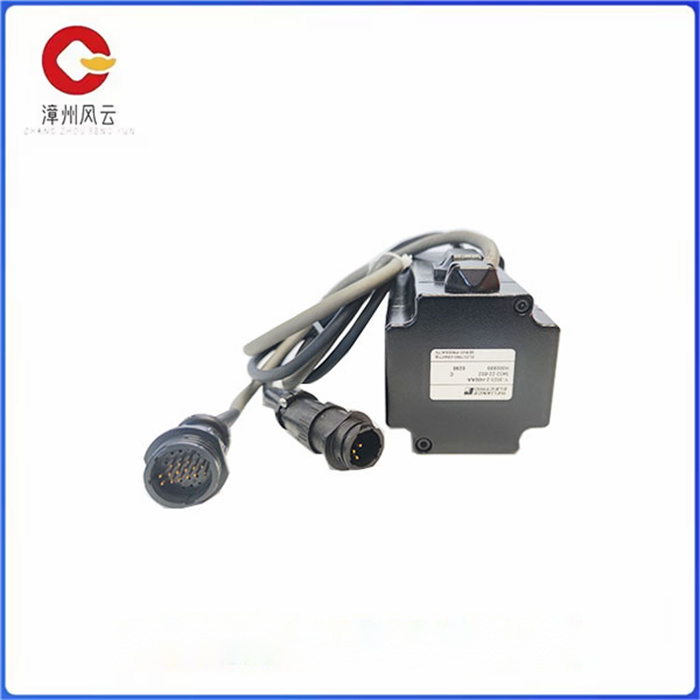

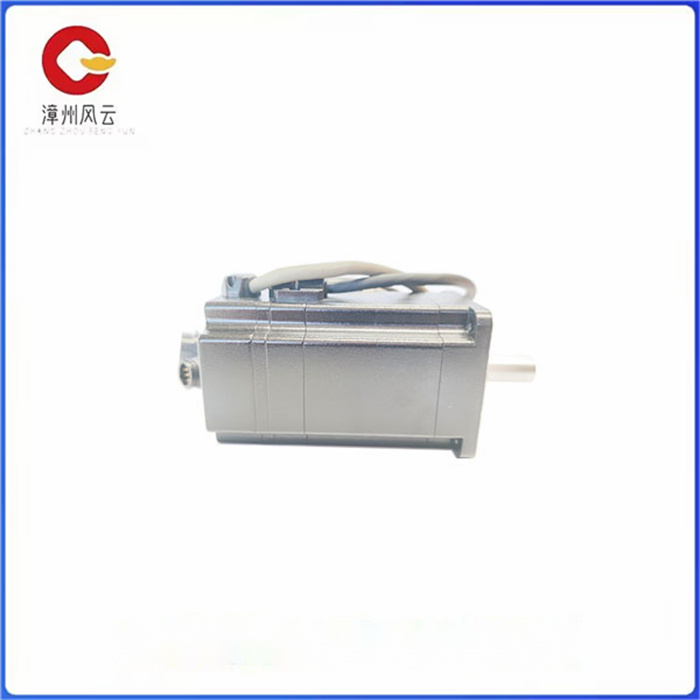

Allen-Bradley Y-3023-2-H00AA无刷伺服电机包含一个轻型工业系列代号、  一个3023机架尺寸和一个230V交流电机绕组Ke代号。  Y-3023-2-H00AA在35 kg最大径向（FR）负载和8个极的情况下运行。    Y-3023-2-H00AA是Allen Bradley的Y系列无刷伺服电机。  一般来说，它的目的是在工业机器上执行复杂的定位和完美的速度应用以及加速度控制。  它是轻工业Y系列中机架尺寸最大的伺服电机。  它的绕组在230伏的交流电压下工作。  光学编码器线路计数可用，不包括中断选项。  Y-3023-2-H00AA伺服电机高能磁体（钕）为快速加速提供低惯量。  其额定转速为4500转/分。获得了IP43额定外壳保护。  Y-3023-2-H00AA有8个极。    Y-3023-2-H00AA的一个特点是安装在电机上的光学编码器线计数，  具有2000 P/R分辨率和换向信号。5伏直流电压用于编码器电源。  需要一个伺服驱动器来完成伺服驱动器定位系统。  Allen-Bradley建议将以下伺服驱动器与以下任何伺服电机一起使用：  1398-DDM-019、1398-DDM202093-AM02、2094-AM02或2098-DSD-020。  与伺服电机轴的系统连接应是刚性的，以防止联轴器、皮带轮或皮带随着时间的推移而滑动并导致轴劣化。  连接电缆应尽可能短。该模块的运输重量为3.9千克（8.7磅）。  其工作温度范围为0至40摄氏度（32至104华氏度）。  Y-3023-2-H00AA伺服电机应在标准工业环境中使用。  不要将其暴露在高湿度或高环境温度下。  Y-3023-2-H00AA尺寸为140 x 80 x 80毫米（5.57 x 3.15 x 3.15英寸）。  其轴直径为16毫米（0.63英寸）。

Y-3023-2-H00AA Y系列无刷伺服电机 机器人伺服驱动

The Allen-Bradley Y-3023-2-H00AA brushless servo motor contains a light industrial series designation, a 3023 frame size, and a 230V AC motor winding Ke designation. The Y-3023-2-H00AA operates at a maximum radial (FR) load of 35 kg and 8 poles. The Y-3023-2-H00AA is Allen Bradley's Y-series brushless servo motor. In general, it is designed to perform complex positioning and perfect speed applications as well as acceleration control on industrial machines. It is the largest rack size servo motor in the light industry Y series. Its windings operate at 230 volts AC. Optical encoder line counts are available and do not include interrupt options. Y-3023-2-H00AA servo motor High Energy magnets (Neodymium) provide low inertia for rapid acceleration. Its rated speed is 4500 RPM. IP43 rated enclosure protection. Y-3023-2-H00AA has eight poles. One of the features of the Y-3023-2-H00AA is an optical encoder line count mounted on the motor with 2000 P/R resolution and commutation signal. 5 V DC voltage for encoder power supply. A servo drive is required to complete the servo drive positioning system. Allen-Bradley recommends using the following servo drives with any of the following servo motors: 1398-DDM-019, 1398-DDM202093-AM02, 2094-AM02, or 2098-DSD-020. The system connection to the servo motor shaft should be rigid to prevent the coupling, pulley or belt from sliding over time and causing shaft deterioration. The connection cable should be as short as possible. The module has a shipping weight of 3.9 kg (8.7 lb). Its operating temperature range is 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit). Y-3023-2-H00AA servo motor should be used in a standard industrial environment. Do not expose it to high humidity or ambient temperatures. The Y-3023-2-H00AA measures 140 x 80 x 80 mm (5.57 x 3.15 x 3.15 inches). Its axis is 16 mm (0.63 in) in diameter.
