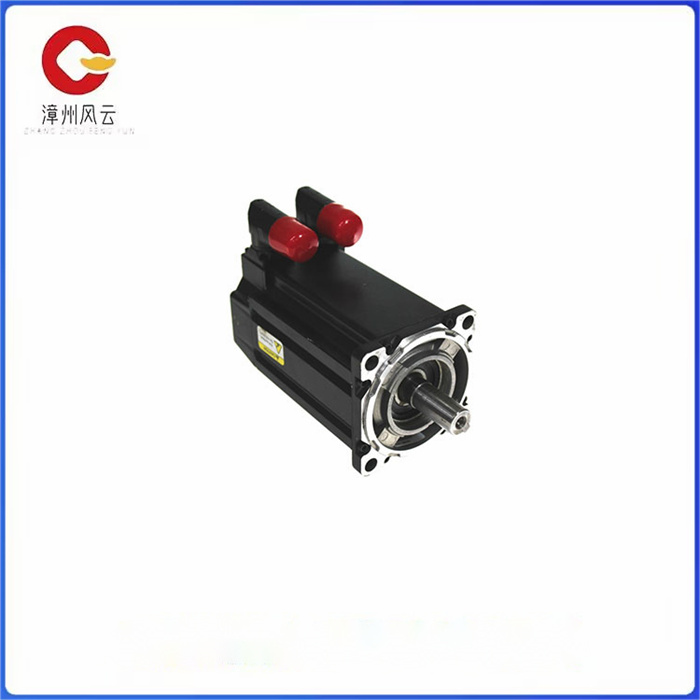

Allen-Bradley MPL-B320P-MJ74AA伺服电机是一台额定转速为5000 rpm的1.5千瓦交流电机，具有50.8毫米的磁体堆长度和100毫米的框架尺寸。MPL-B320P-MJ74AA伺服电机属于Allen-Bradley的MP系列伺服电机，包括额定转速高达8000 rpm、输出功率为0.16至18.6千瓦的电机。MP系列低惯性电机的连续失速扭矩范围为0.26至163 N-m，峰值失速扭矩范围为0.74至278N-m。MP系列电机可与Allen-Bradley Kinetix 6000、Kinetix 300/350和Kinetix 7000驱动器配合使用。

MPL-B320P-MJ74AA伺服电机的额定峰值转速为5000 rpm。它的输出额定值为1.5千瓦，输入额定值为400伏交流电。对于安装，可以使用IEC公制电机法兰上的FF型自由安装孔。反馈通过板载1024正弦/余弦绝对多圈编码器提供(采用hiperface协议)。对于制动，MPL-B320P-MJ74AA伺服电机上提供了一个集成的24伏DC制动器。MPL-B320P-MJ74AA伺服电机包括标准控制选项。伺服电机可以用电缆连接到任何艾伦-布拉德利Kinetix系列驱动器。该电缆通过可旋转180度的电机上的圆形DIN连接器与电机连接。电机上有轴键，但没有轴封。电机轴的默认防护等级为IP 50。可选轴封的安装将电机轴防护等级提高到IP 66级别。切勿将电机轴用于搬运或提升电机。

MPL-B320P-MJ74AA 伺服电机 是额定转速1.5千瓦交流电机

The Allen-Bradley MPL-B320P-MJ74AA servo motor is a 1.5kW AC motor rated at 5000 rpm with a magnet pile length of 50.8 mm and a frame size of 100 mm. The MPL-B320P-MJ74AA servo motor is part of Allen-Bradley's MP family of servo motors, including motors rated up to 8,000 rpm and with output power ranging from 0.16 to 18.6 kW. The MP series low inertia motors have a continuous stall torque range of 0.26 to 163 N-m and a peak stall torque range of 0.74 to 278N-m. The MP series motors can be used with Allen-Bradley Kinetix 6000, Kinetix 300/350 and Kinetix 7000 drives.

The MPL-B320P-MJ74AA servo motor has a rated peak speed of 5000 rpm. It has an output rating of 1.5 kilowatts and an input rating of 400 volts AC. For installation, the FF free mounting hole on the flange of the IEC metric motor can be used. Feedback is provided via an onboard 1024 sine/cosine absolute multi-turn encoder (using hiperface protocol). For braking, an integrated 24-volt DC brake is provided on the MPL-B320P-MJ74AA servo motor. The MPL-B320P-MJ74AA servo motor includes standard control options. The servo motor can be connected to any Allen-Bradley Kinetix series drive by cable. The cable is connected to the motor through a circular DIN connector on the motor that can be rotated 180 degrees. There are shaft keys on the motor, but no shaft seals. The default protection class of the motor shaft is IP 50. The installation of the optional shaft seal raises the motor shaft protection level to IP 66. Do not use motor shafts to carry or lift motors.
