1756-OW16I/A 十六(16)通道离散输出模块

1756-OW16I/A 十六(16)通道离散输出模块

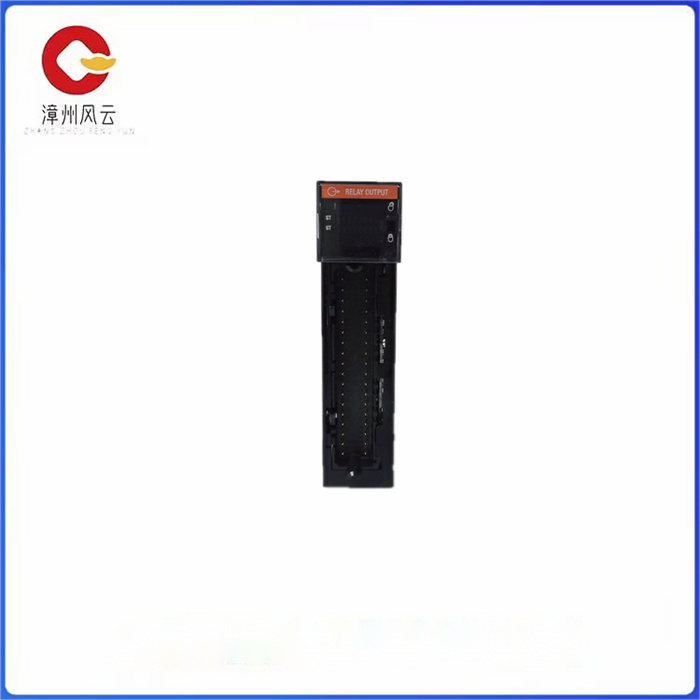

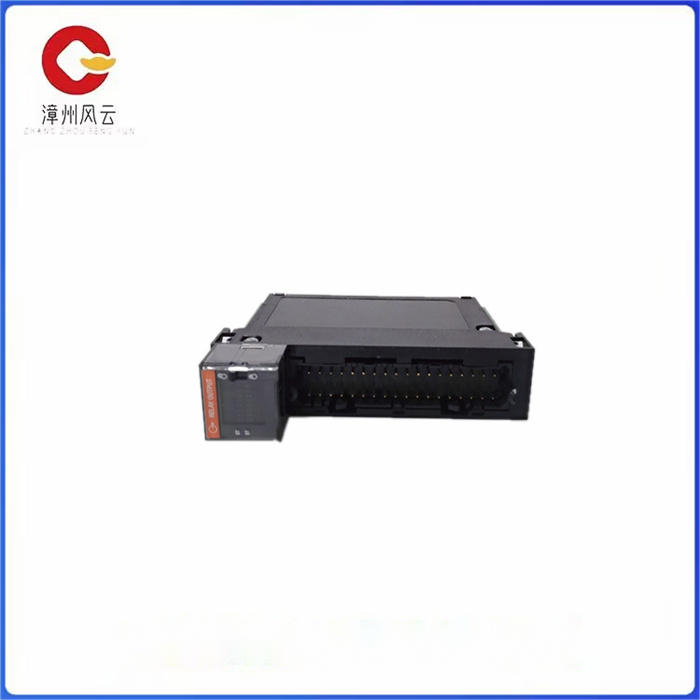

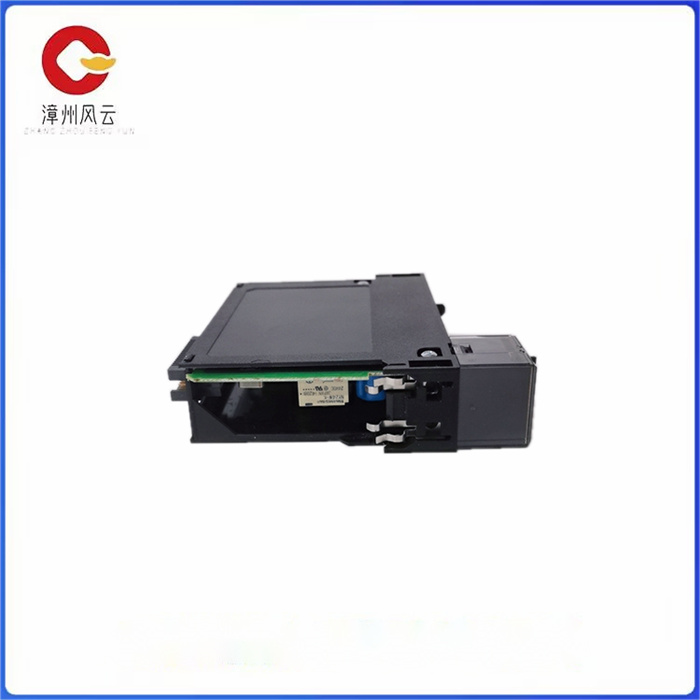

Allen-Bradley 1756-OW16I是十六(16)通道离散输出模块，是ControlLogix自动化平台的一部分。该模块是一个继电器输出模块触点形式为常开(N.O .，带有独立隔离。该模块也可称为干触点输出模块，可兼容在5-125VDC和10-240VAC的电压范围内运行

1756-0W161在5-30V DC时输出电流额定值为1a; 48伏直流电时为0.5安: 125伏直流电时为0.22安;120伏交流电时为1.5安，5060赫兹，240伏交流电时为0.75安，50/60赫兹。该模块的先导占空比为C300/R150。

对于两种信号转换，每个输出通道的最大输出延迟时间为10 ms在5.1 VDC和24VDC下，它从背板汲取150 mA电流，总背板功耗为4.4瓦。

1756-OW16I/A 十六(16)通道离散输出模块

Allen-Bradley 1756-OW16I is a sixteen (16) channel discrete output module that is part of the ControlLogix automation platform. The module is a relay output module with contact form normally open (N.O.) with independent isolation. The module can also be referred to as the dry contact output module and is compatible to operate in the voltage range of 5-125VDC and 10-240VAC

1756-0W161 output current rating is 1a at 5-30V DC; 0.5 amps at 48 volts DC; 0.22 amps at 125 volts DC; 1.5 amps at 5060 Hz at 120 volts AC and 0.75 amps at 50/60 Hz at 240 volts AC. The module has a lead duty cycle of C300/R150.

For both signal conversions, with a maximum output delay of 10 ms per output channel at 5.1 VDC and 24VDC, it draws 150 mA of current from the backplane for a total backplane power consumption of 4.4 watts.
