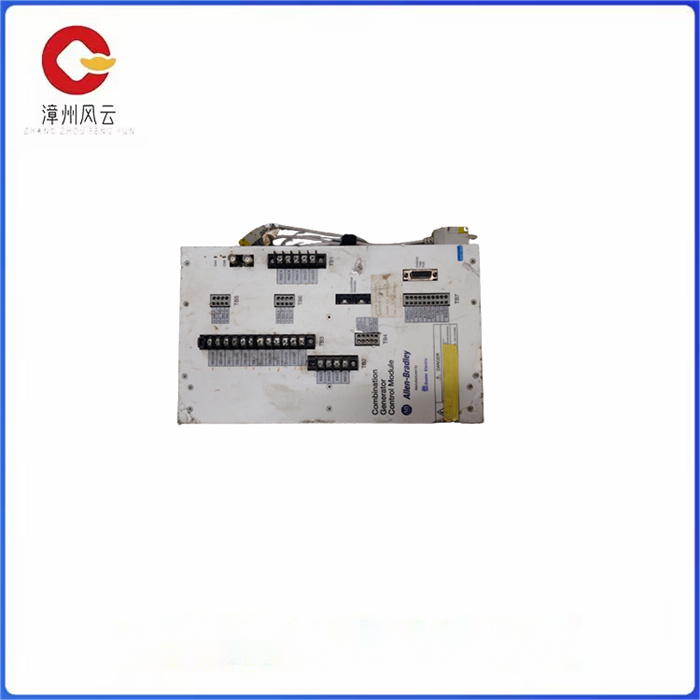

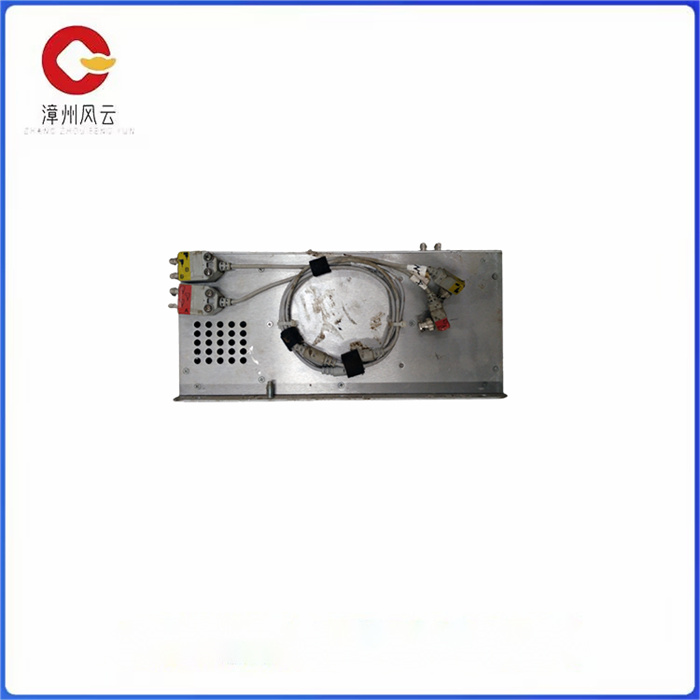

1407-CGCM 组合式发电机控制模块

1407-CGCM 组合式发电机控制模块

简介

组合式发电机控制模块（CGCM 单元）是一种基于微处理器的控制和保护装置。

CGCM 单元可与 Logix 系列可编程控制器集成，提供发电机控制、保护和同步功能。

通过对系统参数、调节设置和保护功能的可编程性，CGCM 单元可广泛应用于各种场合。

功能

以下各节概述了设备的功能。

发电机调节和控制功能

该列表包含发电机调节和控制功能：

- 四种励磁控制模式

- 自动电压调节 (AVR)

- 手动或现场电流调节 (FCR)

- 功率因数 (PF)

- 无功功率 (VAR)

- 在 AVR 和 FCR 控制模式下，通过可调斜坡实现软启动电压升高

- 在 AVR、VAR 和 PF 控制模式中限制过励磁 (OEL) 和欠励磁 (UEL)

- 欠频补偿（伏特/赫兹）

- 线路跌落补偿

- 运行模式之间和冗余 CGCM 单元之间的自动跟踪

- 在冗余系统中自动转移到备用 CGCM 单元

- 带无功下降补偿或交叉电流（无功差动）补偿的发电机并联

- 发电机并联与实际功率负载分担

- 一个或两个断路器同步

1407-CGCM 组合式发电机控制模块

intro

The combined generator control module (CGCM unit) is a microprocessor based control and protection device.

CGCM units can be integrated with Logix series programmable controllers to provide generator control, protection and synchronization.

With programmability of system parameters, adjustment Settings and protection functions, CGCM units can be used in a wide range of applications.

Feature

The following sections outline the capabilities of the device.

Generator regulation and control functions

This list includes generator regulation and control functions:

- Four excitation control modes

- Automatic Voltage Regulation (AVR)

- Manual or field current Regulation (FCR)

- Power Factor (PF)

- Reactive Power (VAR)

- Soft start voltage increase via adjustable ramp in AVR and FCR control modes

- Limit overexcitation (OEL) and underexcitation (UEL) in AVR, VAR and PF control modes

- Underfrequency compensation (volts/Hertz)

- Line drop compensation

- Automatic tracking between running modes and between redundant CGCM units

- Automatic transfer to standby CGCM units in redundant systems

- Parallel generators with reactive drop compensation or cross current (reactive differential) compensation

- Generators in parallel with actual power load sharing

- One or two circuit breakers are synchronized
