2711P-T10C4A9 是一款 Panelview Plus 6 1000 操作终端

 2711P-T10C4A9 是一款 Panelview Plus 6 1000 操作终端

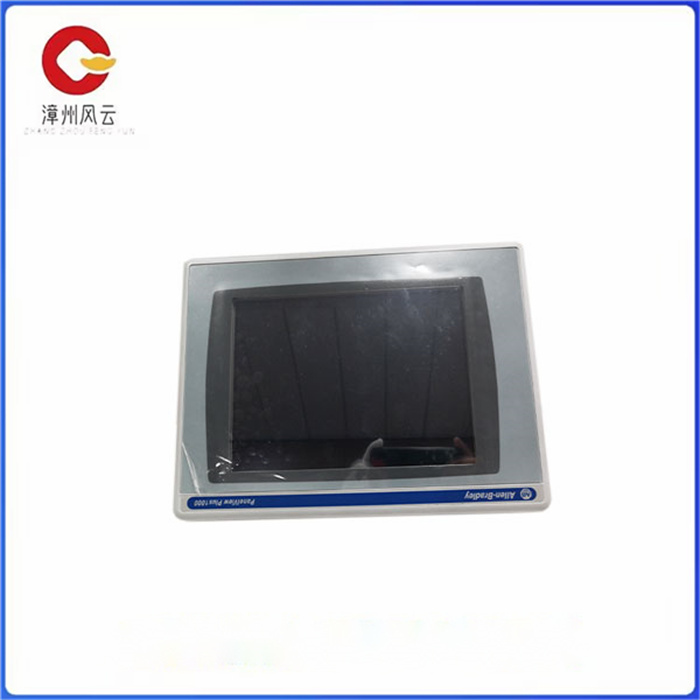

Allen-Bradley 2711P-T10C4A9 PanelView Plus 6 终端具有扩展功能和文件查看器。它可以以图形方式显示应用程序状态信息，允许操作员控制和监视其他机器。2711P-T10C4A9具有灵活的配置过程，具有独立的显示模块和逻辑模块以及可选的通信模块。用户可以通过触摸屏输入信息和数据来控制操作界面。2711P-T10C4A9 配备 10.4 英寸彩色显示屏，输入选项采用电阻式触摸屏。触摸屏分辨率为 640 x 480，具有 18 位彩色图形。它具有 512 MB 的 RAM 和 512 MB 的非易失性存储器，用于用户存储。它重 8 磅，尺寸为 16 x 14 x 8 英寸。其输入电压为 100 至 240 伏交流电，频率为 50 至 60 赫兹，最大功耗为 160 伏。对于通信，它有一个以太网端口、一个 RS-232 端口和 2 个 USB 端口。2711P-T10C4A9 还可以支持可选的 DH-485、DH+、ControlNet 和以太网模块。它配备了一个电池供电的实时时钟，并支持用于外部存储的 SD 卡。

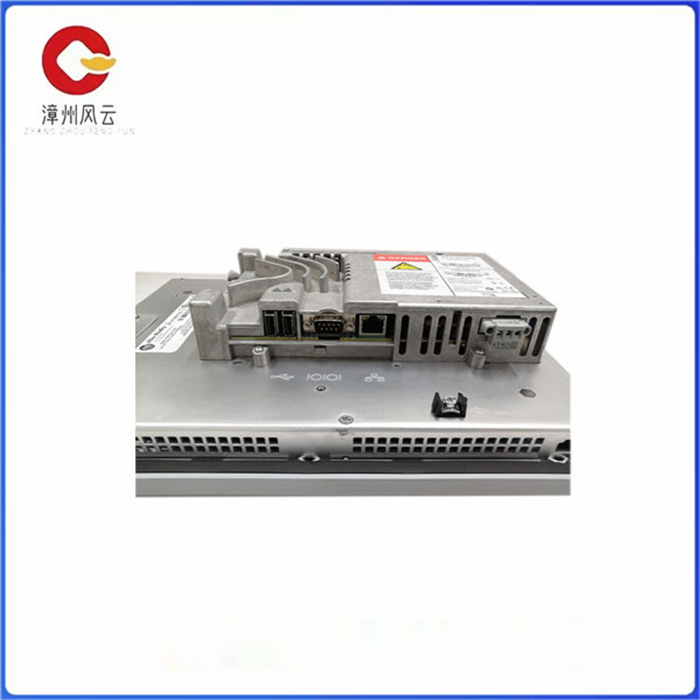

2711P-T10C4A9 在处理器速度、内存、照明和连接性方面比以前的 PanelView 终端有了显著改进。以太网端口使用网络和标准以太网连接连接到 EtherNet/IP 网络上的控制器。此端口可以处理应用程序传输和打印。EtherNet/IP 屏幕允许用户修改 PanelView 终端的某些 EtherNet/IP 通信设置。如果需要另一个以太网端口，2711P-RN20 以太网通信模块可用于 700 至 1500 终端。该模块具有自己唯一的 IP 地址。此端口具有用于网络通信的 RJ45、10/100Base-T 连接器，并支持 MDI/MDI-X 连接。

这是一项实用功能，允许设备显示各种文档，例如手册、报告、配方、图表，以帮助系统正常运行。这些功能已添加到基本功能中，例如文件传输协议 （FTP）<VNC 客户端和服务器连接、PDF 文件查看器和 Active X 控件。该操作终端也可以配置为开放式或封闭式系统配置。

该操作终端具有 10.4 英寸显示屏，内嵌 8 线模拟电阻式触摸屏，可承受多达 1 万次按压，推荐的驱动力为 10-110 g。它配备了 512MB 闪存和 512 MB 随机存取存储器 （RAM）。它由 100-240VAC、50-60 Hz 的外部电源供电。

 2711P-T10C4A9 是一款 Panelview Plus 6 1000 操作终端

Allen-Bradley 2711P-T10C4A9 PanelView Plus 6 terminal with extension function and file viewer. It can graphically display application status information, allowing operators to control and monitor other machines. The 2711P-T10C4A9 has a flexible configuration process with separate display and logic modules as well as an optional communication module. The user can enter information and data through the touch screen to control the operation interface. The 2711P-T10C4A9 features a 10.4-inch color display with resistive touch screen input options. The touchscreen has a resolution of 640 x 480 and features 18-bit color graphics. It has 512 MB of RAM and 512 MB of non-volatile memory for user storage. It weighs 8 pounds and measures 16 x 14 x 8 inches. Its input voltage is 100 to 240 volts AC, the frequency is 50 to 60 Hertz, and the maximum power consumption is 160 volts. For communication, it has one Ethernet port, one RS-232 port, and two USB ports. The 2711P-T10C4A9 also supports optional DH-485, DH+, ControlNet, and Ethernet modules. It comes with a battery-powered real-time clock and supports SD cards for external storage.

The 2711P-T10C4A9 is a significant improvement over previous PanelView terminals in terms of processor speed, memory, lighting, and connectivity. EtherNet ports connect to controllers on EtherNet/IP networks using network and standard Ethernet connections. This port can handle application transfer and printing. The EtherNet/IP screen allows users to modify certain EtherNet/IP communication Settings for PanelView terminals. If another Ethernet port is required, the 2711P-RN20 Ethernet communication module is available for 700 to 1500 terminals. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connectivity.

This is a utility feature that allows the device to display various documents, such as manuals, reports, recipes, diagrams, to help the system function properly. These features have been added to basic features such as File Transfer Protocol (FTP) <VNC client and server connections, PDF file viewer, and Active X controls. The operating terminal can also be configured as an open or closed system configuration.

The operating terminal features a 10.4-inch display with an embedded 8-wire analog resistive touch screen that can withstand up to 10,000 compressions with a recommended driving force of 10-110 g. It comes with 512MB of flash memory and 512MB of random access memory (RAM). It is powered by an external power supply of 100-240VAC, 50-60 Hz.
