2711-K6C5 是一款 PanelView 600 标准操作终端

2711-K6C5 是一款 PanelView 600 标准操作终端

2711-K6C5 的 PanelView Standard 操作终端是 Allen-Bradley 的 PanelView 600 可视化组件。该操作终端更广为人知的是人机界面 （HMI），其主要目的是通过嵌入在 HMI 中的功能组合为过程操作员提供实时监控和过程接口。

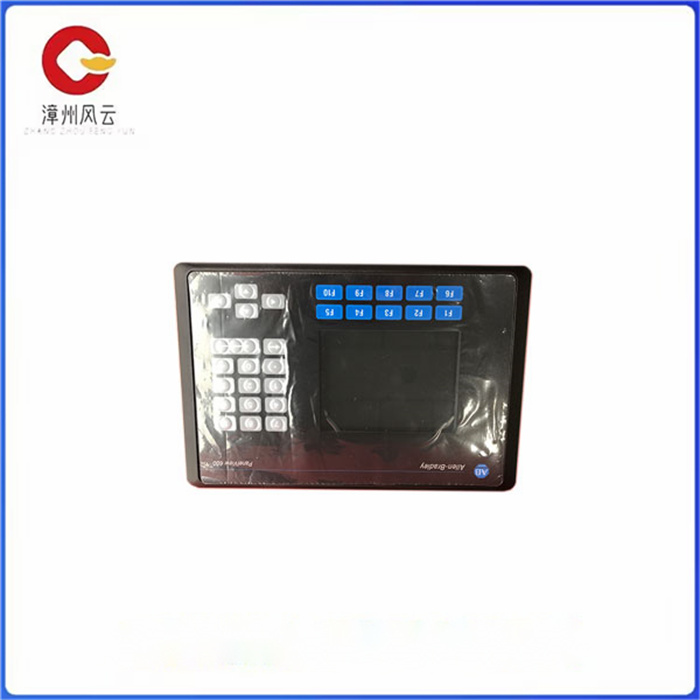

过程可视化是通过 5 英寸彩色图形显示器实现的，其中可以实现带有颜色编码信息的动画。这款彩色屏幕的功能显示区域为 115 x 86 毫米（4.54 x 3.4 英寸）。屏幕分辨率为 320 x 234 像素。屏幕与内部背光配对，可现场更换，预计运行时间可达 50,000 小时。 操作员控制和界面由嵌入式键盘提供，该键盘由十 （10） 个功能键、导航键和数字键组成。

每个键都执行单独的功能，功能键能够接受本地和全局分配。这些键预计最多可执行 1 万次操作，并可与功能键图例插入一起安装。

2711-K6C5 具有 DH485 通信端口，与 Allen-Bradley 的不同可编程逻辑控制器 （PLC） 产品兼容，例如 SLC 500、MicroLogix、CompactLogix 和 ControlLogix 处理器。它还与第三方控制器和设备兼容，以实现过程可视化和集中监控。

3-K2711C6 是小型机器和工艺的理想选择。它具有内置的 5 0KB 非易失性存储器和 240KB 运行时应用程序存储器。它的额定电源输入范围为 190-85V AC，频率为 264-47 Hz。 这款 PV 63 具有鲜艳的 600 英寸。

彩色显示。用户能够使用键盘控制HMI输入信息和数据。

本机使用 5-85 VAC 电源供电。本机具有以下内部存储器：264 KB非易失性存储器和240KB运行存储器。190-K2711C6 PanelView 具有可更换的背光，用于 A 系列和 B 系列单元的 5-NL2711，以及用于 C 系列单元的 3-NL2711。

RS-5（DH-232 协议）终端使用 DH-485 协议连接到 MicroLogix 和 SLC 500 控制器。点对点配置对高优先级数据使用单独的连接。他们还可以使用 AIC+ 模块连接到 DH-485 网络。

此过程也可以通过 RS-485 打印机端口、标准 RS-232/DH-232 端口或使用 PC 存储卡（如 485-NM2711）完成。

2711-K6C5 是一款 PanelView 600 标准操作终端

The 2711-K6C5 PanelView Standard operating terminal is the Allen-Bradley PanelView 600 visual component. Better known as the Human Machine Interface (HMI), the main purpose of this operating terminal is to provide process operators with real-time monitoring and process interfaces through a combination of functions embedded in the HMI.

Process visualization is achieved through a 5-inch color graphic display where animations with color-coded information can be implemented. The color screen has a functional display area of 115 x 86 mm (4.54 x 3.4 inches). The screen resolution is 320 x 234 pixels. The screen is paired with an internal backlight and can be replaced on site, with an estimated operating time of up to 50,000 hours. Operator control and interface are provided by an embedded keyboard consisting of ten (10) function keys, navigation keys, and number keys.

Each key performs a separate function, and function keys are capable of accepting both local and global assignments. These keys are expected to perform up to 10,000 operations and can be installed with function key legend inserts.

The 2711-K6C5 has a DH485 communication port and is compatible with different programmable logic controller (PLC) products from Allen-Bradley, such as the SLC 500, MicroLogix, CompactLogix, and ControlLogix processors. It is also compatible with third-party controllers and devices for process visualization and centralized monitoring.

The 3-K2711C6 is ideal for small machines and processes. It has a built-in 50 KB of non-volatile memory and 240KB of runtime application memory. It has a rated power input range of 190-85V AC and a frequency of 264-47 Hz. This PV 63 has a vivid 600 inch.

Display in color. Users can use the keyboard to control HMI input information and data.

The unit uses 5-85 VAC power supply. The unit has the following internal memory: 264 KB non-volatile memory and 240KB running memory. The 190-K2711C6 PanelView features A replaceable backlight, 5-NL2711 for Series A and B units, and 3-NL2711 for Series C units.

RS-5 (DH-232 protocol) terminals use the DH-485 protocol to connect to MicroLogix and SLC 500 controllers. A peer-to-peer configuration uses separate connections for high-priority data. They can also connect to DH-485 networks using AIC+ modules.

This process can also be done via an RS-485 printer port, a standard RS-232/DH-232 port, or using a PC memory card such as 485-NM2711.
