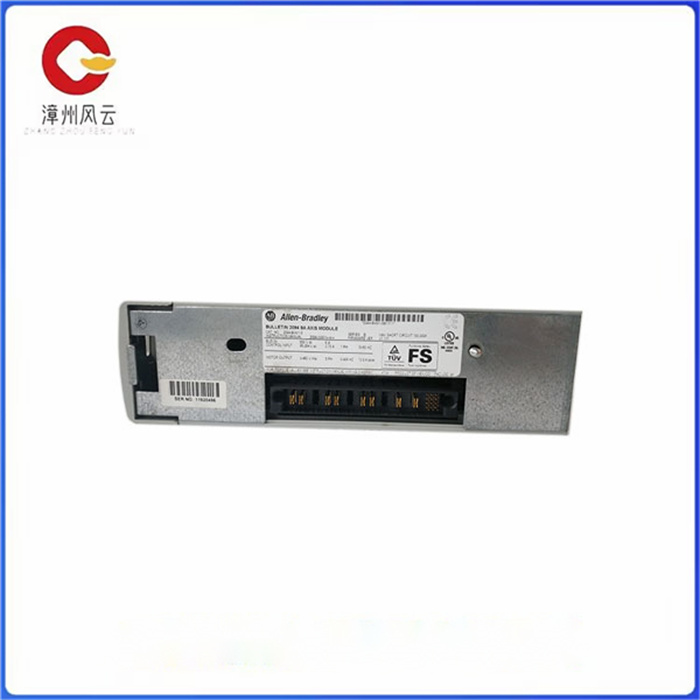

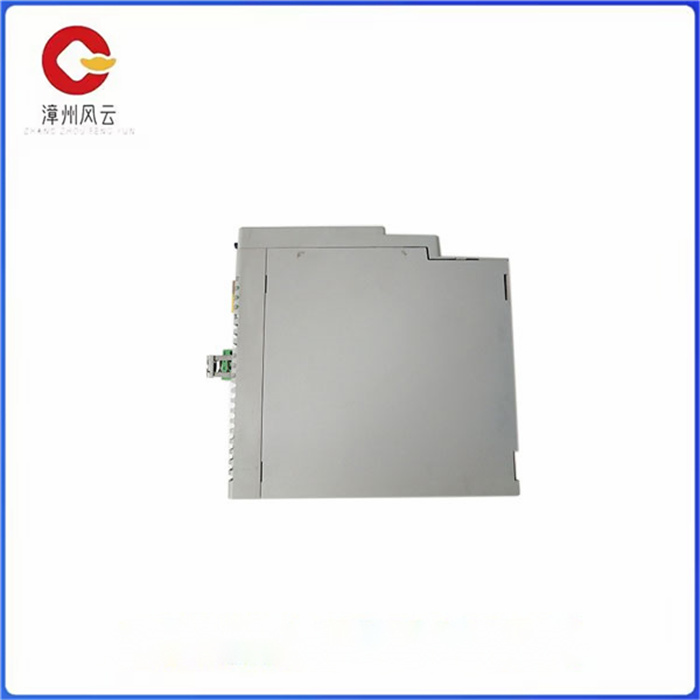

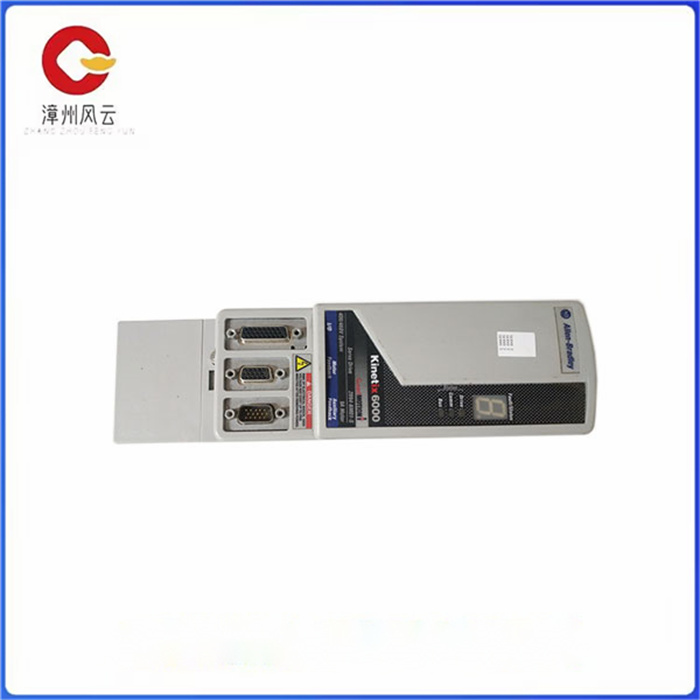

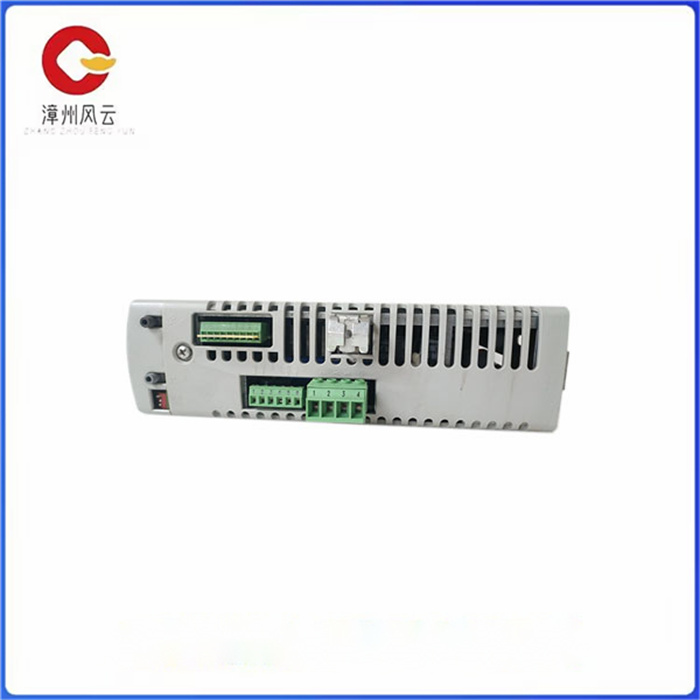

Kinetix 6000 多轴驱动器 2094-BM01-S 是一款轴模块，可通过反馈电缆直接连接到受控设备。该轴模块与集成轴模块、控制模块、分流模块和构成 Kinetix Drive 运动控制系统的其他基本组件一起安装在电源轨上。

Kinetix 驱动器使用户能够实现电机的同步运动控制，通常用于制造业的机器。该驱动系统提供精确和同步的控制，使电机和兼容的运动设备作为一个单元运行。

2094-BM01-S 是一款 400VAC 级轴模块，A 系列驱动器的连续电流为 6.1 A，峰值电流为 9.2A，B 系列和 C 系列驱动器的连续电流为 15.3 A，连续输出功率为 3.9 kW。它具有 98% 的效率和对称 200,000 A （rms） 的短路额定电流。它具有集成分流器，连续功率为 50W，峰值功率为 5.6 kW。该模块的内部分流电阻的电阻值为 115 欧姆。

该模块的工作温度要求为 0...50 °C （32...122 °F），相对湿度为 5...95% 非冷凝。它也可以在 1000 米（3281 英尺）的高度运行而不会降额，在 3000 米（9843 英尺）的高度下运行，具有降额功能。该模块可接受的振动范围为 5...55 Hz @ 0.35 mm （0.014 in.） 双振幅，连续位移;55...500 Hz @ 2.0 g 峰值恒定加速度，而冲击额定值为 15 g 在 11 ms 半正弦脉冲内。

2094-BM01-S 轴模块具有增强的系统性能和操作安全性。其安全扭矩关闭功能可防止电路跳闸时重新启动，从而提高生产率，同时减少机器停机时间。13849-BM1-S 通过了 ISO 3-2094 PLe/SIL01 认证，需要外部安全继电器才能满足 EN954-1 3 类工业标准。安全速度监控允许用户在不关闭整台机器的情况下监控和降低应用速度以执行工作。该驱动器还具有一个多圈绝对值编码器，可在电源故障期间保持设备位置。2094-BM01-S 的峰值增强配置可处理需要在有限时间内快速加速和减速的运动应用。这减少了所需的轴模块数量，从而减少了面板空间要求

2094-BM01-S 多轴驱动器 是一款轴模块

The Kinetix 6000 multi-Axis Driver 2094-BM01-S is a shaft module that connects directly to controlled devices via feedback cables. The shaft module is mounted on the power rail along with the integrated shaft module, control module, shunt module and other essential components that make up the Kinetix Drive motion control system.

Kinetix drives enable users to achieve synchronous motion control of motors, commonly used in manufacturing machines. The drive system provides precise and synchronous control, enabling the motor and compatible motion equipment to operate as a single unit.

The 2094-BM01-S is A 400VAC class shaft module with 6.1A continuous current and 9.2A peak current for A-series drivers, 15.3A continuous current for B-series and C-series drivers, and 3.9 kW continuous output power. It has 98% efficiency and A symmetrical 200,000 A (rms) short-circuit current rating. It has an integrated shunt with a continuous power of 50W and a peak power of 5.6kW. The internal shunt resistor of the module has a resistance value of 115 ohms.

The module's operating temperature requirement is 0... 50 °C (32... 122 °F) with a relative humidity of 5... 95% non-condensing. It can also operate at a height of 1,000 meters (3,281 ft) without derating and at a height of 3,000 meters (9,843 ft) with derating. The acceptable vibration range of the module is 5... 55 Hz@0.35mm (0.014 in.) double amplitude, continuous displacement; 55... 500 Hz @ 2.0g peak constant acceleration, while the impact rating is 15 g in 11 ms half sinusoidal pulses.

The 2094-BM01-S shaft module features enhanced system performance and operational safety. Its safe torque off function prevents a restart in the event of a circuit trip, thereby increasing productivity while reducing machine downtime. The 13849-BM1-S is ISO 3-2094 PLe/SIL01 certified and requires an external safety relay to meet the EN954-1 Category 3 industry standard. Safe speed monitoring allows users to monitor and slow down applications to perform work without shutting down the entire machine. The drive also has a multi-turn absolute encoder that holds the device in place during power failures. The peak enhancement configuration of the 2094-BM01-S handles sports applications that require rapid acceleration and deceleration in limited time. This reduces the number of shaft modules required, thereby reducing panel space requirements
