1756-L61 ControlLogix 系列控制器

1756-L61 ControlLogix 系列控制器

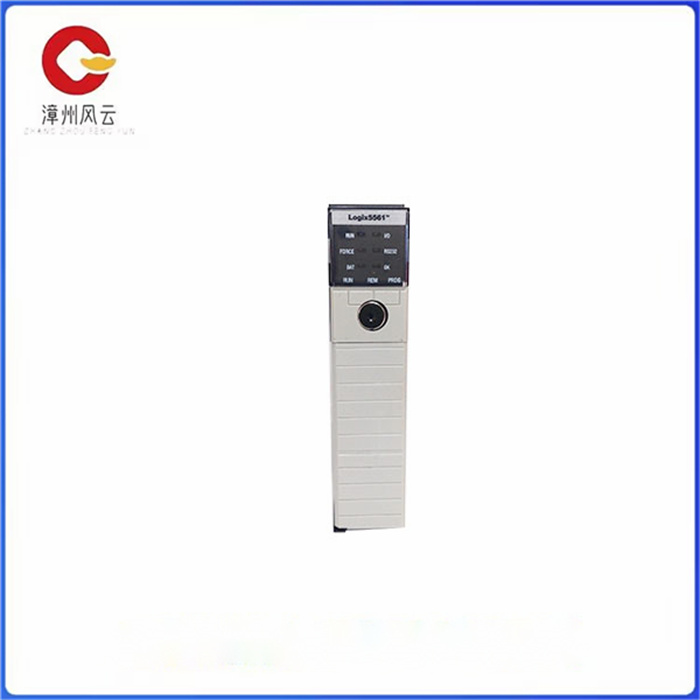

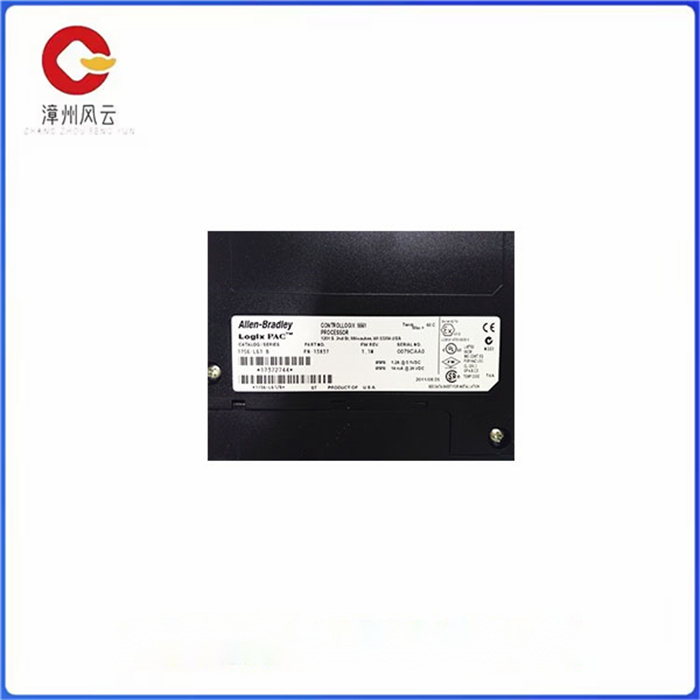

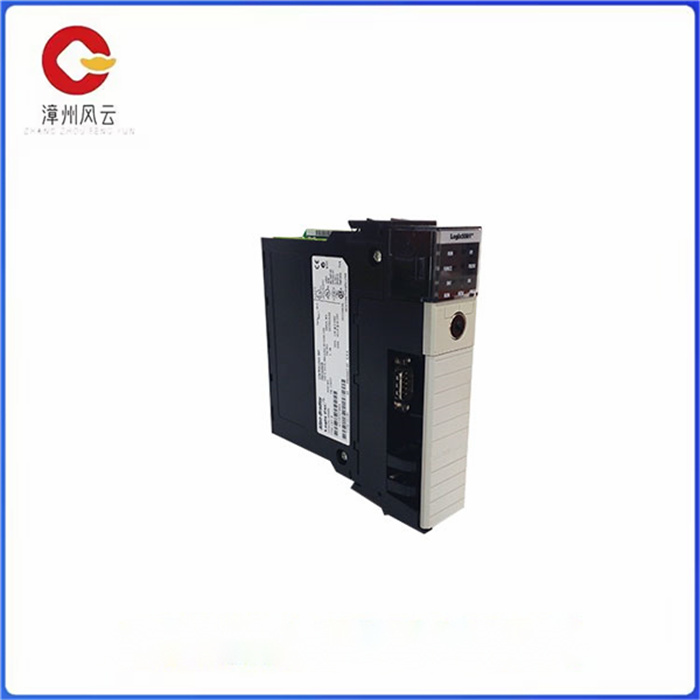

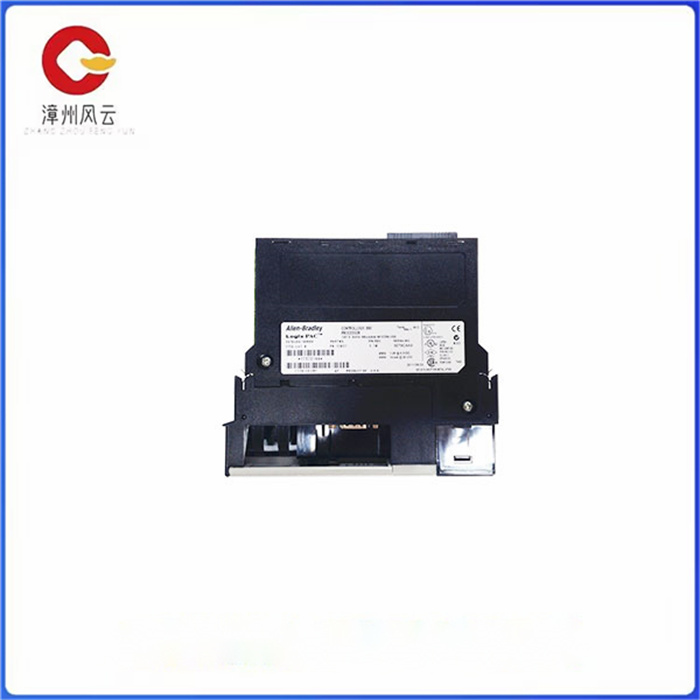

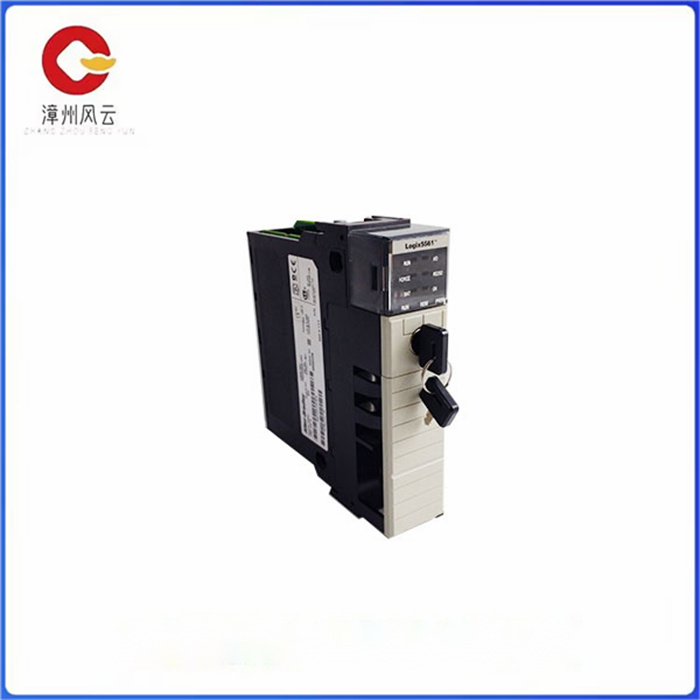

Allen-Bradley 1756-L61 是一款 ControlLogix 控制器。它具有 2 MB 用户存储器和 478 KB I/O 存储器，以及可选的 128 MB 非易失性存储存储器，使用 1784-CF128 CompactFlash 存储卡。它是基于机箱的控制器，可以放置在 1756 ControlLogix 机箱的任何可用插槽中。此控制器的兼容机箱为 1756-A4、1756-A7、1756-A10、1756-A13 和 1756-A17。它采用开放式机箱，最多可支持 250 个控制器连接。它还具有内置的 RS-232 串行通信端口。RS232 端口支持的协议包括 DF1 全双工/半双工、ASCII、DF1 无线电调制解调器、Modbus via logic 和 DH-485。

它的最大数字 I/O 为 128,000，最大模拟 I/O 为 4,000，最大总 I/O 为 128,000。1756-L61 的控制器任务包括 32 个任务、每个任务 100 个程序和事件任务：所有事件触发器。1756-L61 具有多种通信选项，例如 ControlNet、Data Highway Plus、EtherNet/IP、DeviceNet、SynchLink、远程 I/O 以及第三方过程和设备网络。1756-L61 控制器的电流消耗在 1200.5V DC 时为 1 mA，在 14V DC 时为 24 mA。功耗为 3.5 W，散热为 11.9 BTU/hr。它还具有 30V 的连续隔离电压，并在 720V DC 下测试了 60 秒。它的工作温度为 0 至 60 摄氏度，存储温度为 -40 至 85 摄氏度，周围最高气温为 60 摄氏度。相对湿度在 5% 至 95%（非冷凝）之间，在 2 至 10 Hz 时振动为 500 g，操作和非操作冲击分别为 30 g 和 50 g。

Allen-Bradley 1756-L61 是一款 ControlLogix 控制器，具有集成的 2MB 用户内存，使控制器能够处理多达 128,000 个离散和 4000 个模拟 I/O。该控制器具有集成的 RS232 通信端口，可通过逻辑配置为 ASCII、DF1 全/半双工、DF1 无线电调制解调器、DH-485 和 Modbus。

该控制器支持独立和分布式 I/O 应用程序的实现。虽然该模块允许 250 个连接。根据所使用的通信模块，网络连接可能会有所不同。它还支持冗余，以提高系统可用性，这在关键系统中通常是必需的。

该控制器还通过嵌入式 SERCOS 接口集成了运动，模拟输入选项，如编码器输入、LDT 输入和 SSI 输入。如果与以太网通信模块一起使用，该驱动器可以通过以太网 I/P 实现运动，

控制器支持的编程语言包括继电器梯形图、结构化文本、功能块图 （FBD） 和顺序功能图 （SFC）。

与模块通讯，需要RS232通讯线。该模块的适当通信方式为 1756-CP3 或 1747-CP3，与控制器的直角连接器，直至串行端口，3 m （9.84 ft）。该模块使用电池将用户程序和数据保留在其内存中。对于 A 系列控制器，合适的电池是 1756-BA1、1756-BATM、1756-BATA，而 B 系列控制器的电池为 1756-BA2。

该控制器非常适合在指定的 I/O 容量范围内用于大多数中型过程。为了提高模块的性能，可以安装其他模块，例如通信模块、专业和智能模块，以及包含合作伙伴模块

1756-L61 ControlLogix 系列控制器

The Allen-Bradley 1756-L61 is a ControlLogix controller. It has 2 MB of user memory and 478 KB of I/O memory, as well as an optional 128 MB of non-volatile storage memory, using a 1784-CF128 CompactFlash memory card. It is a chassis based controller that can be placed in any available slot in the 1756 ControlLogix chassis. Compatible enclosures for this controller are 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. It uses an open chassis and can support up to 250 controller connections. It also has a built-in RS-232 serial communication port. Protocols supported by the RS232 port include DF1 full duplex/half duplex, ASCII, DF1 radio modem, Modbus via logic, and DH-485.

It has a maximum digital I/O of 128,000, a maximum analog I/O of 4,000, and a maximum total I/O of 128,000. The controller tasks of the 1756-L61 consist of 32 tasks, 100 programs per task, and event tasks: all event triggers. The 1756-L61 has a variety of communication options, such as ControlNet, Data Highway Plus, EtherNet/IP, DeviceNet, SynchLink, remote I/O, and third-party process and device networking. The current consumption of the 1756-L61 controller is 1 mA at 1200.5V DC and 24 mA at 14V DC. Power consumption is 3.5W and heat dissipation is 11.9BTU /hr. It also has a continuous isolation voltage of 30V and was tested at 720V DC for 60 seconds. It has an operating temperature of 0 to 60 degrees Celsius, a storage temperature of -40 to 85 degrees Celsius, and a maximum ambient temperature of 60 degrees Celsius. Relative humidity is between 5% and 95% (non-condensing), vibration is 500 g at 2 to 10 Hz, and operating and non-operating shocks are 30 g and 50 g respectively.

The Allen-Bradley 1756-L61 is a ControlLogix controller with an integrated 2MB of user memory that enables the controller to handle up to 128,000 discrete and 4,000 analog I/ OS. The controller has an integrated RS232 communication port and can be logically configured for ASCII, DF1 full/half duplex, DF1 radio modem, DH-485 and Modbus.

The controller supports the implementation of independent and distributed I/O applications. Although the module allows 250 connections. Depending on the communication module used, the network connection may vary. It also supports redundancy to improve system availability, which is often required in critical systems.

The controller also integrates motion, analog input options such as encoder input, LDT input, and SSI input via an embedded SERCOS interface. If used with an Ethernet communication module, the driver can achieve motion through Ethernet I/P,

Programming languages supported by the controller include relay ladder diagram, structured text, function block diagram (FBD), and Sequential Function diagram (SFC).

To communicate with the module, RS232 communication cable is required. The appropriate mode of communication for this module is 1756-CP3 or 1747-CP3, right Angle connector with the controller, up to the serial port, 3 m (9.84 ft). The module uses batteries to keep user programs and data in its memory. For the A-series controllers, the appropriate batteries are 1756-BA1, 1756-BATM, 1756-BATA, while the B-series controllers have 1756-BA2 batteries.

The controller is ideal for use in most medium-sized processes within the specified I/O capacity range. To improve the performance of the module, additional modules can be installed, such as communication modules, professional and intelligent modules, as well as inclusion partner modules
