1756-IB16 是一款 ControlLogix 分立式输入模块

1756-IB16 是一款 ControlLogix 分立式输入模块

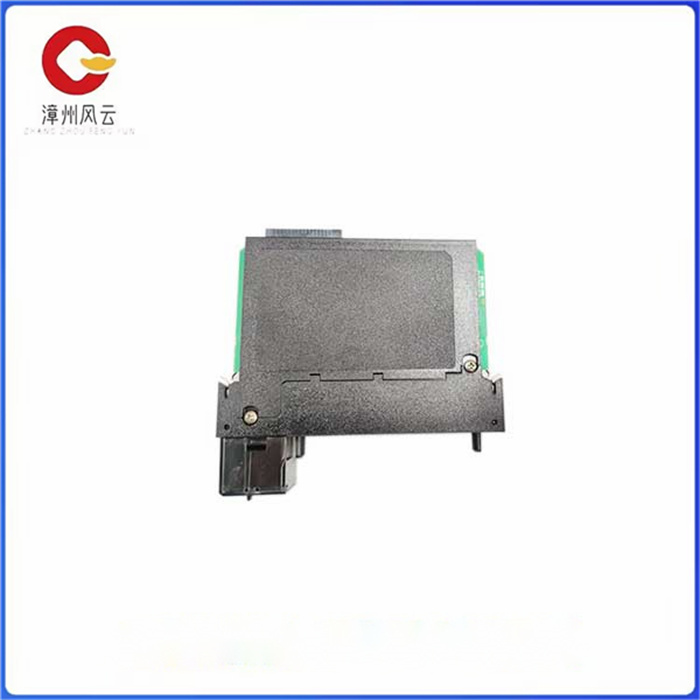

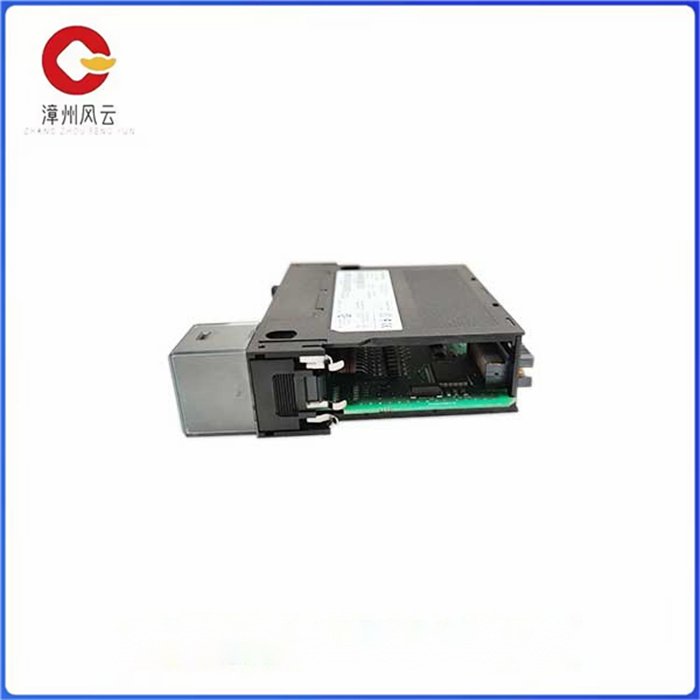

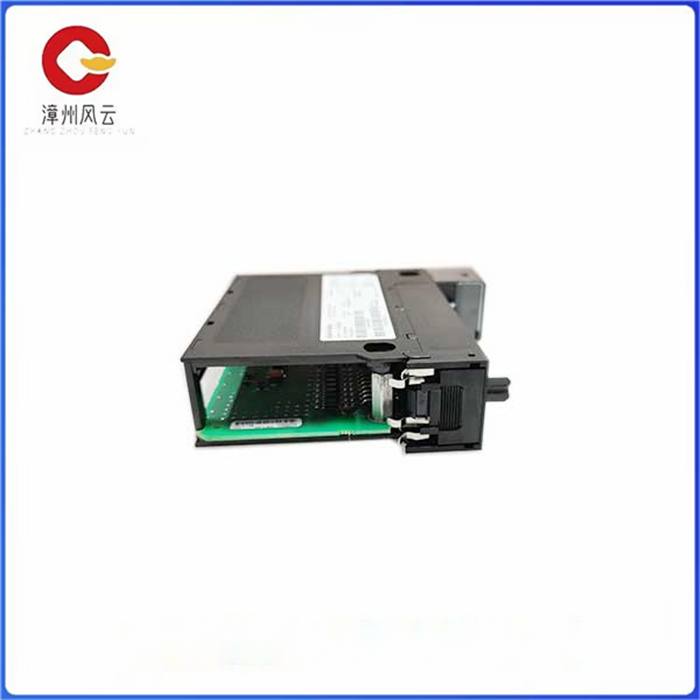

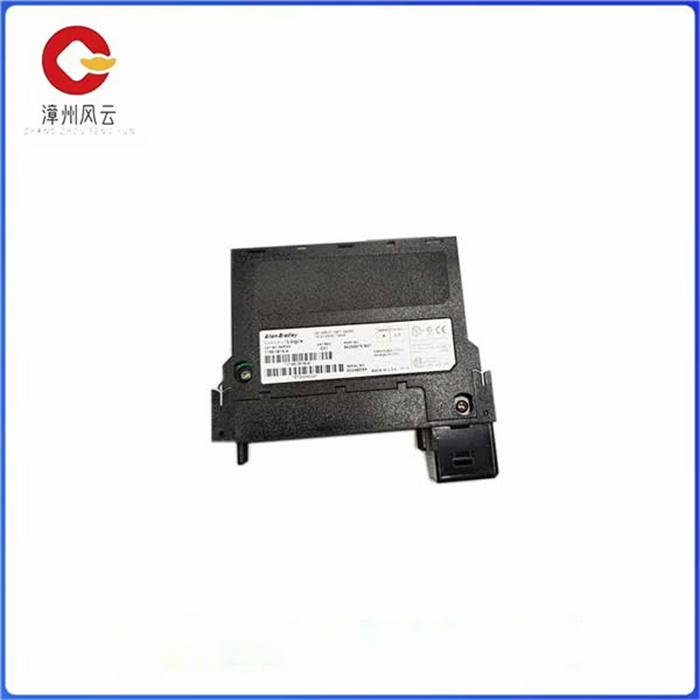

Allen-Bradley 1756-IB16是一款ControlLogix I/O模块.该 16 点直流输入模块（每组 8 点）可连接到 1756 ControlLogix 机箱。兼容的可拆卸接线端子外壳 （RTB） 是 1756-TBNH 20 位 NEMA RTB 和 1756-TBSH 20 位弹簧夹 RTB。请注意，在安装之前，用户应准备好兼容的 RTB，并且应安装 1756 机箱和电源并接地。

1756-IB16 模块的标称输入电压为 24 伏直流电，而电压类别为 12/24 伏直流灌电流。其工作电压范围为 10 至 31.2 伏直流电，背板总功率为 0.56W。5.1 V DC 时的电流消耗为 100 mA。在 24 V 时，电流消耗为 2 mA。该模块的最大浪涌电流峰值为 250 mA，在 37 毫秒内衰减至 22%，无需激活。其隔离电压为 250 伏连续电压。该模块在 5.1 摄氏度时的功耗约为 60 瓦，散热为 17.39 BTU/小时。该模块的导通电流范围为 2 V DC 时的 0.10 mA 至 10.31 V DC 时的 2 mA。在关断状态下，它的最大电压为 5V，最大电流为 1.5 mA。该模块的输入延迟时间最大为 1 ms 硬件延迟加上用户可配置的滤波器时间（0、1 或 2 毫秒）。它的最大硬件延迟时间为 2 毫秒，外加用户可配置的滤波时间（0、1、2、9 或 18 毫秒）。

Allen-Bradley 1756-IB16 是一款直流灌电流输入模块，可在 24VDC 的标称输入电压下工作。该模块用于 24VDC 输入信号，但仍可用于交流输入电压tage，前提是安装了适当的插入电路或组件。

该模块支持单机架、独立控制器配置，适用于较小和不太重要的应用。它也可以用于涉及更高关键程度的大型应用，例如远程 I/O 系统或分布式控制系统 （DCS）。

该模块可用作任何 ControlLogix 配置的离散输入模块，甚至是 Allen-Bradley 的 PlantPaX DCS 平台。该模块的安装数量几乎没有限制。实例数或安装数取决于处理器的内存容量以及使用的物理机箱或可用插槽。

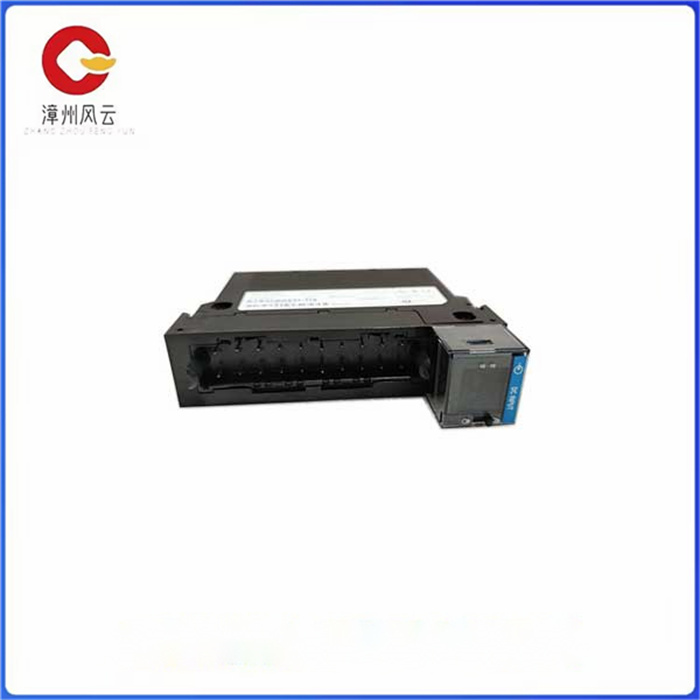

1756-IB16 使用可拆卸端子锁，提供端接输入信号的模块化方式。它可以替换为 RTB 部件号 1756-TBNH 1756-TBSH。它具有状态更改属性，该属性可由用户配置，在某个输入信号更改为定义状态时需要立即采取行动的应用中非常有用。状态更改 （COS） 绕过处理器的正常扫描周期，以实现更快的逻辑执行。

1756-IB16 是一款 ControlLogix 分立式输入模块

The Allen-Bradley 1756-IB16 is a ControlLogix I/O module. The 16-point DC input modules (each set of 8 points) can be connected to the 1756 ControlLogix chassis. The compatible removable terminal housing (RTB) is the 1756-TBNH 20-bit NEMA RTB and the 1756-TBSH 20-bit spring clip RTB. Note that the user should have a compatible RTB ready before installation, and the 1756 case and power supply should be installed and grounded.

The 1756-IB16 module has a nominal input voltage of 24 volts DC, while the voltage class is 12/24 volts DC perfusion. Its operating voltage range is 10 to 31.2 volts DC, and the total power of the backplane is 0.56W. The current consumption at 5.1 V DC is 100 mA. At 24 V, the current consumption is 2 mA. The module has a maximum surge current peak of 250 mA and decays to 22% in 37 milliseconds without activation. Its isolation voltage is 250 volts continuous. The module has a power consumption of about 60 watts at 5.1 degrees Celsius and a heat dissipation of 17.39 BTU/ hour. The conduction current of the module ranges from 0.10 mA at 2 V DC to 2 mA at 10.31 V DC. In the off state, it has a maximum voltage of 5V and a maximum current of 1.5mA. The module has an input delay of up to 1 ms hardware delay plus a user-configurable filter time (0, 1 or 2 ms). It has a maximum hardware latency of 2 milliseconds, plus user-configurable filtering times (0, 1, 2, 9 or 18 milliseconds).

Allen-Bradley 1756-IB16 is a DC perfusion current input module that operates at a nominal input voltage of 24VDC. The module is used for 24VDC input signals, but can still be used for AC input voltage tage, provided the appropriate plug-in circuits or components are installed.

The module supports single-stand, standalone controller configurations for smaller and less critical applications. It can also be used for larger applications that involve a higher degree of criticality, such as remote I/O systems or distributed control systems (DCS).

The module can be used as a discrete input module for any ControlLogix configuration, even Allen-Bradley's PlantPaX DCS platform. There is almost no limit to the number of installations of this module. The number of instances or installations depends on the memory capacity of the processor and the physical chassis or available slots used.

1756-IB16 Uses detachable terminal locks to provide a modular way of terminating input signals. It can be replaced with the RTB part number 1756-TBNH 1756-TBSH. It has a state-changing property that can be configured by the user and is useful in applications where immediate action is required when an input signal changes to a defined state. State change (COS) bypasses the processor's normal scan cycle for faster logical execution.
