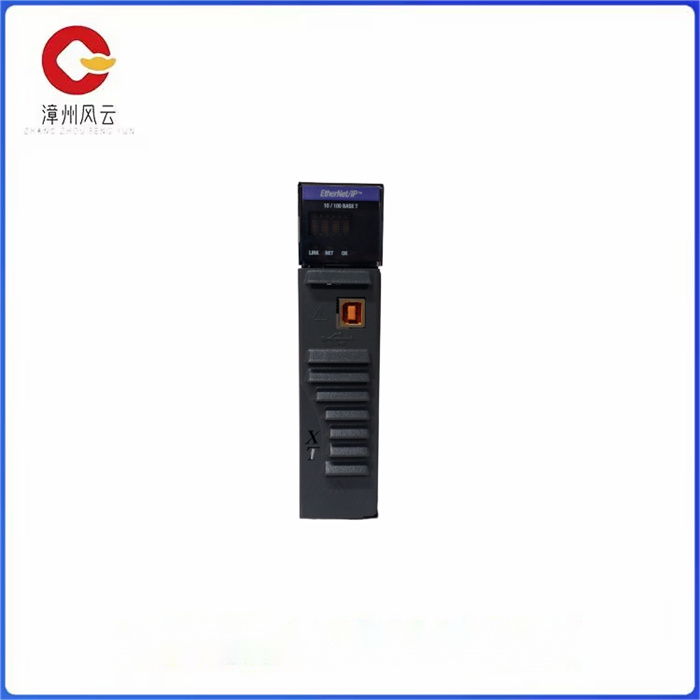

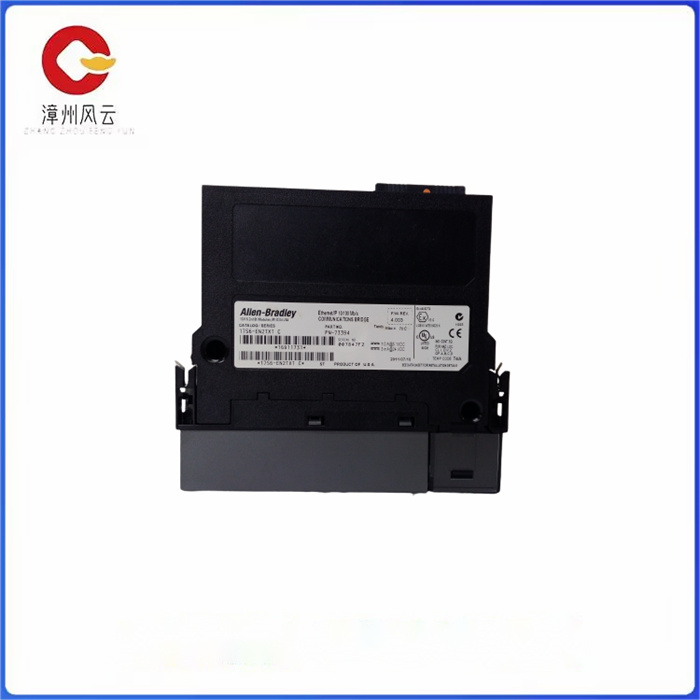

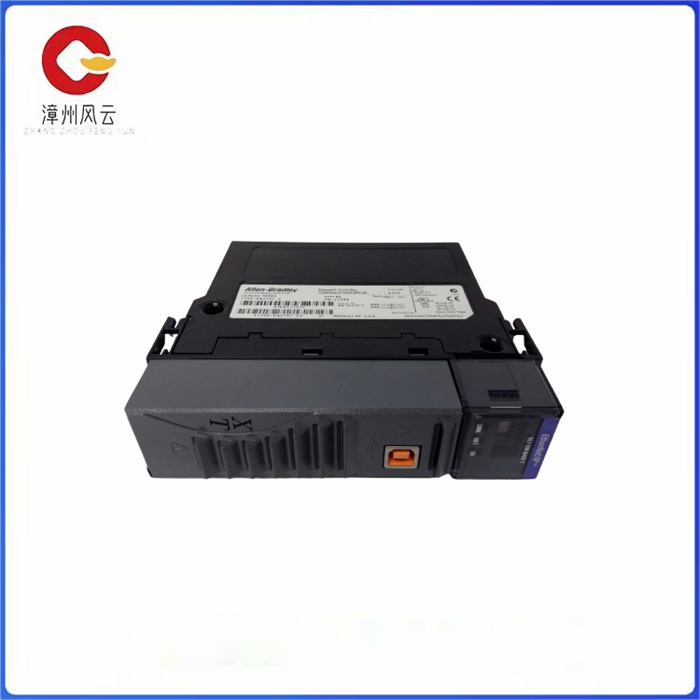

1756-EN2TXT 是一款带嵌入式交换机的高性能桥接器

1756-EN2TXT 是一款带嵌入式交换机的高性能桥接器

Allen-Bradley 1756-EN2TXT 网桥在温度范围为 -25 至 70 °C（-13 至 158 °F）的环境中提供 EtherNet/IP 网络通信和控制。它是 1756 ControlLogix 通信模块的 ControlLogix-XT 产品线。它安装在背板中，用于链接或路由控制和信息数据，支持实时 I/O 消息传递和消息交换。它具有 128 个 TCP 连接、256 个 CIP/Logix 连接和 128 + 128 个 CIP 未连接消息（背板 + 以太网）。

1756-EN2TXT 以太网桥具有 10/100 Mbps 的网络通信速率。它支持SNMP（需要密码）并附带套接字服务。它的数据包速率容量为每秒 10,000 个 I/O 和 2,000 个 HMI/MSG 数据包。当与 1756-L7x ControlLogix 控制器一起使用时，它可以在 EtherNet/IP 网络轴上支持多达 8 个集成运动控制，其 I/O 数据包速率容量增加到每秒 25,000 个数据包。

1756-EN2TXT 通信模块非常适合需要 Internet/Intranet 连接、包含商业技术（如 IP 视频、通过单个网络进行数据配置和收集）、工厂管理和时间敏感（无需既定时间表）的应用。它与 1756-A4LXT、1756-A5XT、1756-A7XT 和 1756-A7LXT 机箱兼容。

1756-EN2TXT 是一款带嵌入式交换机的高性能桥接器

The Allen-Bradley 1756-EN2TXT bridge provides EtherNet/IP network communication and control in a temperature range of -25 to 70 °C (-13 to 158 °F). It is the ControlLoGIX-XT line of 1756 ControlLogix communication modules. It is installed in the backplane and is used to link or route control and information data, supporting real-time I/O messaging and message exchange. It has 128 TCP connections, 256 CIP/Logix connections, and 128 + 128 CIP unconnected messages (backplane + Ethernet).

The 1756-EN2TXT Ethernet bridge has a 10/100 Mbps network communication rate. It supports SNMP (password required) and comes with a socket service. It has a packet rate capacity of 10,000 I/O and 2,000 HMI/MSG packets per second. When used with the 1756-L7x ControlLogix controller, it can support up to eight integrated motion controls on the EtherNet/IP networking axis, increasing its I/O packet rate capacity to 25,000 packets per second.

The 1756-EN2TXT communication module is ideal for applications that require Internet/Intranet connectivity, incorporate business technologies such as IP video, data configuration and collection over a single network, plant management, and time-sensitive applications that do not require a set schedule. It is compatible with the 1756-A4LXT, 1756-A5XT, 1756-A7XT, and 1756-A7LXT chassis.
