1746-A4 一款带有 500 个插槽的 SLC 4 I/O 机箱

1746-A4 一款带有 500 个插槽的 SLC 4 I/O 机箱

Allen-Bradley 1746-A4 是一款扩展模块，由 4 个插槽和安装片组成，用于容纳 SLC 500 系列的模块。该部件本身属于 SLC 500 A 模块化机箱系列。该面板安装机架需要自己的电源，该电源将用螺钉安装在左端面板（电源支撑面板）上。右端和中心面板通过闩锁保持静止，因此不需要任何螺钉。通过固定安装卡舌的 4 个孔将机箱安装在机箱上。为了在机箱和后面板之间留出一条通电通道，可能需要刮掉一些油漆。

4 插槽 1746-A4 模块化机箱可应用于具有多个机箱的配置中，也可作为单个单元配置应用。单独使用时，请将机箱的连接器插头放在左侧。使用机箱互连电缆最多可以将三个机箱连接在一起。此设置最多创建 30 个 I/O 插槽。请注意，不同的安装布局需要不同的电缆。并排连接机箱时，请使用长度为 1746.7 毫米（152 英寸）的 4-C6 电缆。要将一个机箱置于另一个机箱下方，请选择 14.4 毫米（36 英寸）长的 1746-C9 或 1.27 米（50 英寸）长的 1746-C16。

1746-A4 的最大背板电流为 5.1 V DC（10 A）和 24 V DC（2.88 A）。如果没有模块，它的重量约为 0.75 千克（1.7 磅）。它的尺寸为 17.7 x 17.1 x 14.5 厘米（7.1 x 6.8 x 5.8 英寸），工作温度在 0 至 60 摄氏度（32 至 140 华氏度）之间，相对湿度为 5% 至 95%（无冷凝）。

1746-A4 一款带有 500 个插槽的 SLC 4 I/O 机箱

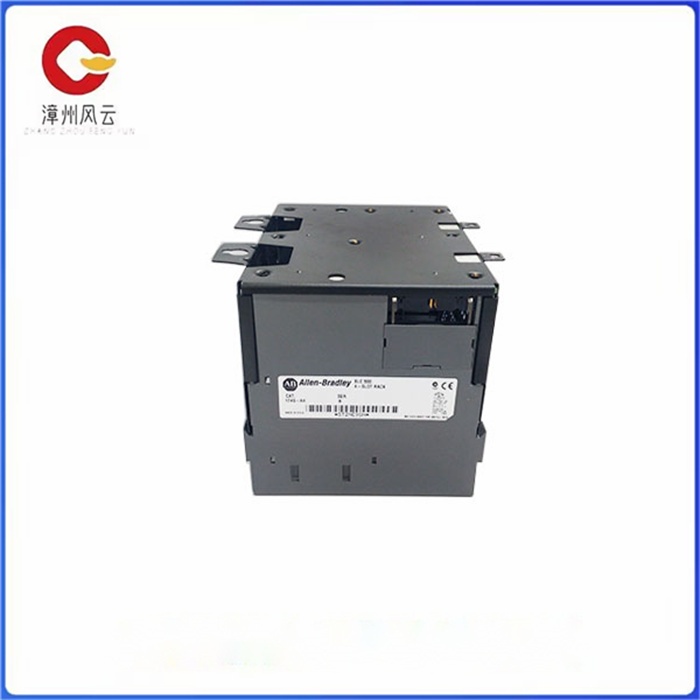

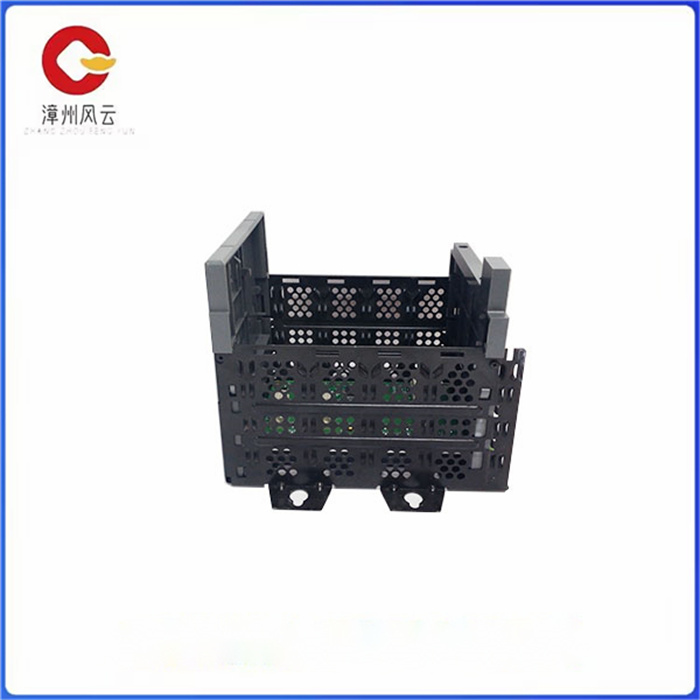

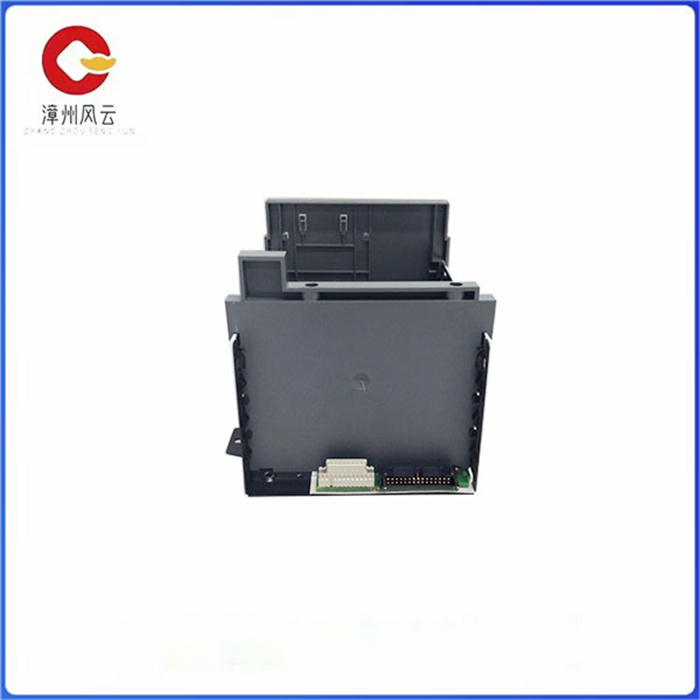

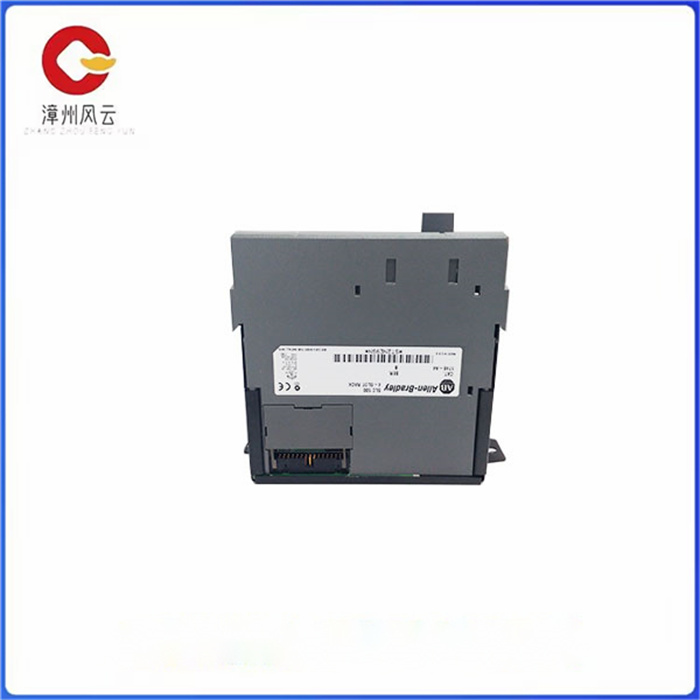

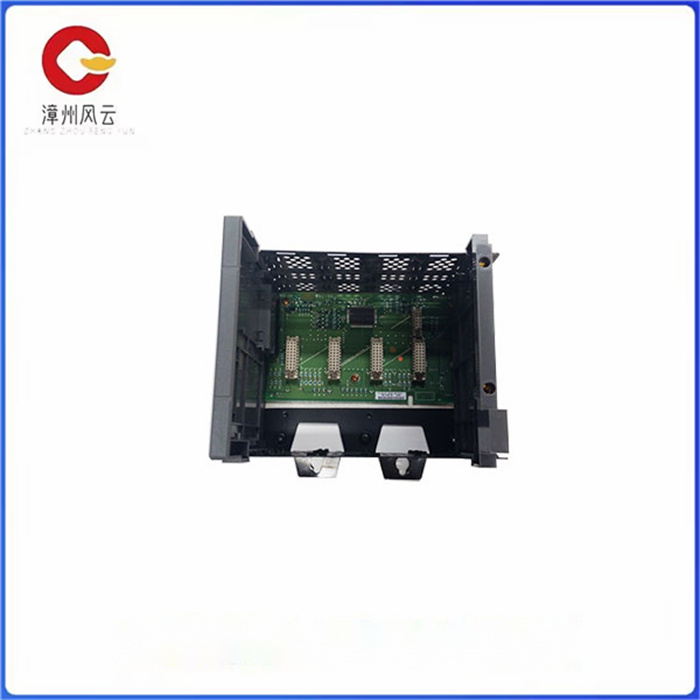

The Allen-Bradley 1746-A4 is an expansion module consisting of 4 slots and mounting pieces to house modules from the SLC 500 series. The part itself belongs to the SLC 500 A modular chassis family. The panel mounting rack requires its own power supply, which will be bolted to the left end panel (power support panel). The right end and center panels are held still by latches, so no screws are required. Install the chassis on the chassis through the four holes for securing the mounting latch. In order to leave an energized channel between the case and the rear panel, some paint may need to be scraped off.

The 4-slot 1746-A4 modular chassis can be used in configurations with multiple chassis or as a single unit configuration. When used alone, place the chassis connector plug on the left side. Up to three chassis can be connected together using chassis interconnection cables. This setting creates a maximum of 30 I/O slots. Please note that different installation layouts require different cables. When connecting cases side-by-side, use a 4-C6 cable with a length of 1746.7 mm (152 in). To place one case under another, select a 14.4 mm (36 in) long 1746-C9 or a 1.27 m (50 in) long 1746-C16.

The 1746-A4 has A maximum backplane current of 5.1 V DC (10 A) and 24 V DC (2.88 A). Without the module, it weighs about 0.75 kilograms (1.7 pounds). It measures 17.7 x 17.1 x 14.5 cm (7.1 x 6.8 x 5.8 in), operates at temperatures between 0 and 60 degrees Celsius (32 to 140 degrees Fahrenheit) and has a relative humidity of 5 to 95 percent (non-condensing).
