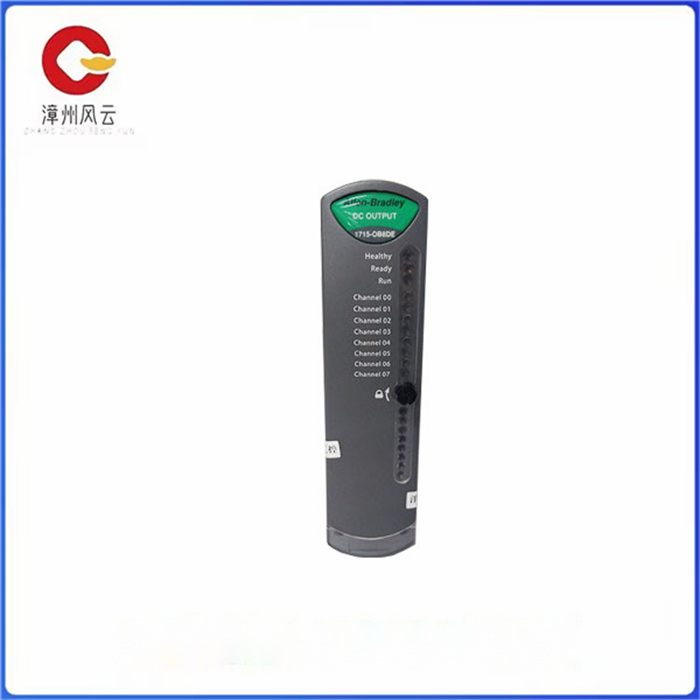

1715-OB8DE 冗余 I/O 模块 8 点数字输出模块

1715-OB8DE 冗余 I/O 模块 8 点数字输出模块

1715-OB8DE 由 Allen-Bradley 制造，是一款冗余 I/O 模块，归类于 1715 系列 Allen-Bradley 冗余 I/O 模块。1795-OB8DE 的最大功率容量耗散为 3 瓦。1715-OB8DE 的工作温度最低为 -25 摄氏度，最高为 70 摄氏度。冗余 l/o 模块被描述为 8 点数字输出模块，电线尺寸为 18 至 16 AWG。该装置的运输重量约为 290 克。1715-OB8DE 是基于机箱的应用，它带有 DIN 导轨安装类型。

1715-OB8DE 的外壳类型为开放式，并配有显示系统，用作模块的运行状况和状态显示仪表板。1715-OB8DE 带有 18 至 32 伏直流电的输出信号。1715-OB8DE 的运输尺寸为长 1 5/8 英寸、宽 4 5/8 英寸和高 6 1/2 英寸。根据制造商的说法，1715-OB8DE 配备 18-16 AWG 实心绞合铜线，额定功率小于 2 瓦。

1715-OB8DE 的抗振性为 2 g，在 DIN 导轨和运行状态下的抗冲击等级为 25 g。在非工作状态下和安装在DIN导轨上时，该模块具有30 g的抗冲击能力，卸载时具有50 g的抗冲击能力。1715-OB8DE 具有电流源输出类型和浪涌瞬态抗扰度。

1715-OB8DE 冗余 I/O 模块 8 点数字输出模块

The 1715-OB8DE, manufactured by Allen-Bradley, is a redundant I/O module that belongs to the 1715 series Allen-Bradley Redundant I/O module. The 1795-OB8DE has a maximum power capacity dissipation of 3 watts. The 1715-OB8DE operates at a minimum of -25 degrees Celsius and a maximum of 70 degrees Celsius. Redundant l/o modules are described as 8-point digital output modules with wire sizes of 18 to 16 AWG. The transport weight of the device is about 290 grams. The 1715-OB8DE is a chassis based application with a DIN rail mounting type.

The 1715-OB8DE has an open housing type and is equipped with a display system that acts as a dashboard for the module's health and status display. The 1715-OB8DE has an output signal of 18 to 32 volts DC. The 1715-OB8DE has transport dimensions of 1 5/8 inches long, 4 5/8 inches wide and 6 1/2 inches high. According to the manufacturer, the 1715-OB8DE is equipped with 18-16 AWG solid stranded copper wire with a power rating of less than 2 watts.

The 1715-OB8DE has a vibration resistance of 2 g and an impact rating of 25 g on DIN rail and in operation. The module has an impact resistance of 30 g when not in operation and when mounted on a DIN rail, and 50 g when unloaded. The 1715-OB8DE has a current source output type and surge transient immunity.
