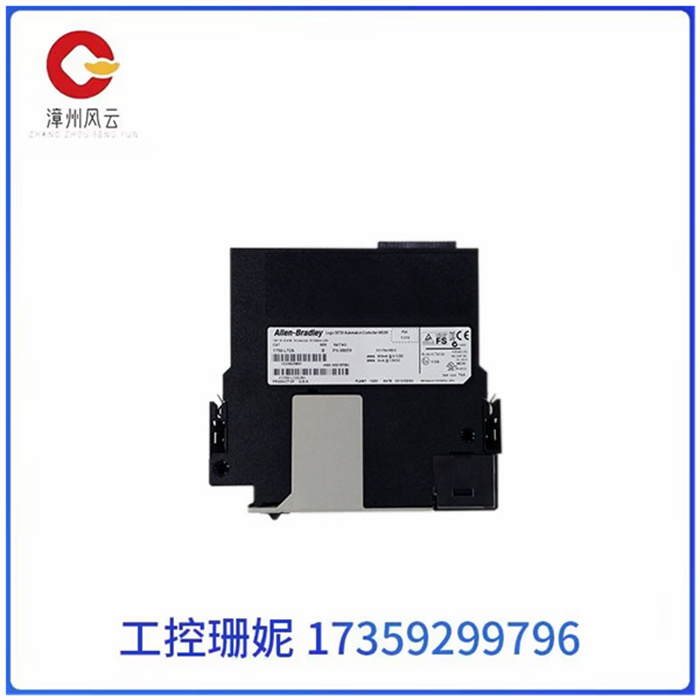

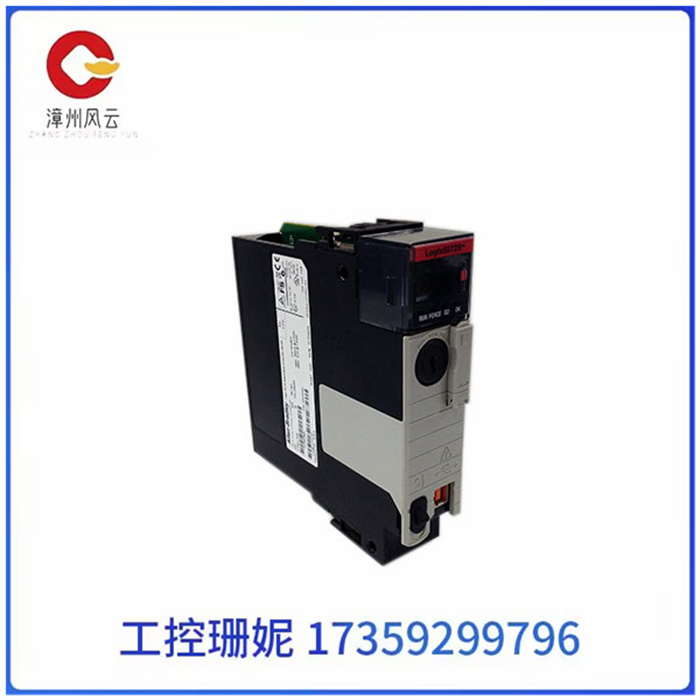

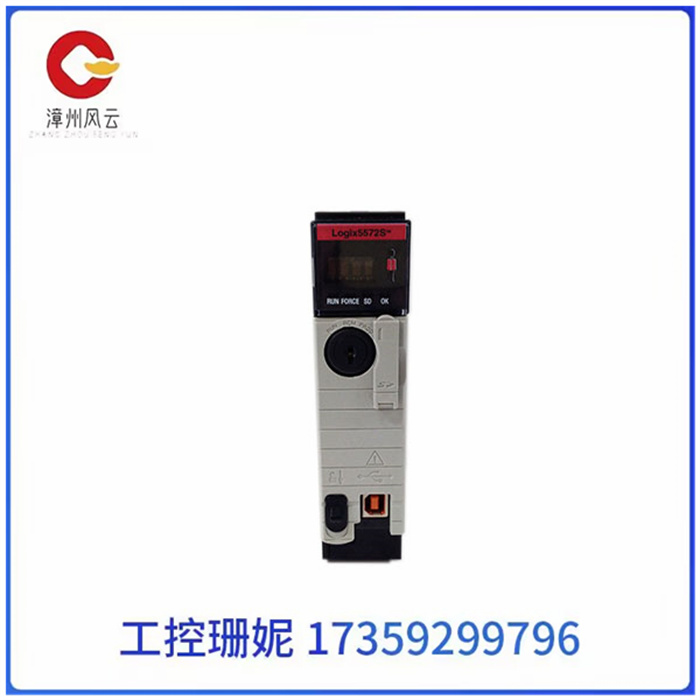

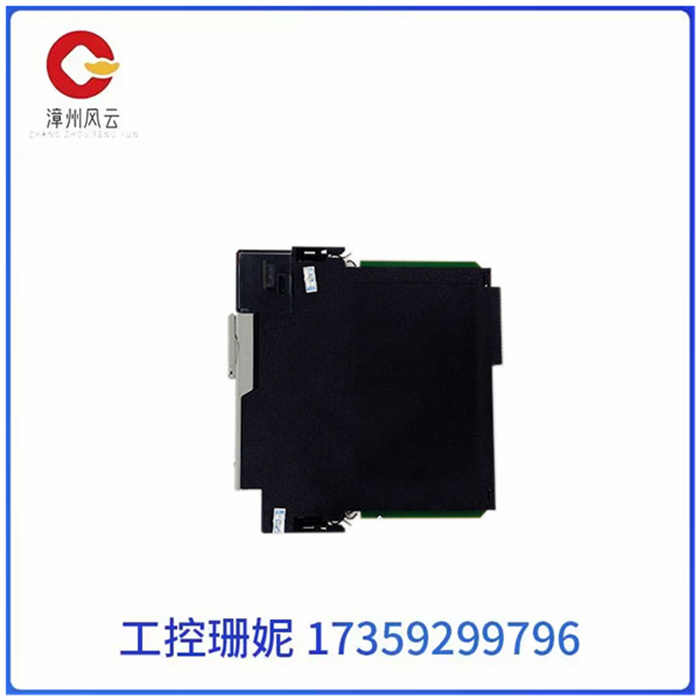

1756-L72S AB 是 Logix5000 系列控制器的一部分

1756-L72S AB 是 Logix5000 系列控制器的一部分

Allen-Bradley 1756-L72S 是 GuardLogix 5570 控制器，是 Logix5000 系列控制器的一部分。它是一款具有安全控制功能的ControlLogix控制器。它是一种双处理器解决方案，必须与 1756-L7SP 安全模块配合使用，以满足 SIL 3 或 Cat 标准。4/PLe安全标准。安全伙伴控制器是自动配置的，使单个项目受益。它具有出色的处理能力和运动速度以及高性能逻辑。它有一个用于通信的 USB 端口。它最多可支持 500 个控制器连接。1756-L72S 控制器具有 4MB 用户内存、2MB 安全内存和 0.98MB I/O 内存。它可以支持 128,000 个数字 I/O 和 4000 个模拟 I/O。它在 5.1V DC 时消耗 2mA 的电流，在 800.5V DC 时消耗 1mA 的电流。它的功耗为 2.5W，散热为 8.5 BTU/小时。它重 0.55 磅，具有 30V（连续）的隔离电压，用于基本绝缘。它可以安装在 ControlLogix 1756 机箱的任何插槽中，也可以在同一机箱中安装多个控制器。为了安全通信，它使用 ControlNet、DeviceNet 或 EtherNet/IP 网络。1756-L72S 控制器可以通过背板或通过 I/O 链路控制或监控 I/O。对于控制器诊断，它有一个提供运行时信息的前显示屏。它使用储能模块运行，这意味着不需要锂电池。预装了 1 GB （1784-SD1） 安全数字卡作为可选的非易失性存储器，可扩展至 2 GB （1784-SD2）。

Allen-Bradley 1756-L72S 是一款 5570 GuardLogix 可编程自动化控制器 （PAC）。该控制器具有标准和安全控制器功能。该控制器是主控制器，与目录号为 1756-L7SP 或 1756-L7SPK 的安全合作伙伴一起使用，以达到安全集成级别 （SIL） 类别级别 （CL） 3/性能级别 e （PLe） /Cat。4. 评级。使用 1756-L72S，与专用安全控制器不同，标准和安全项目集成在一个文件中。

1756-L72S 具有大容量标准存储器和专用安全存储器。这些内存区域包括 4 MB 用户内存、2 MB 安全内存、0.98 MB I/O 内存和 1 GB 非易失性存储器，由控制器随附的 1784-SD1 提供。它使 1756-L72S 能够连接多达 128,000 个输入和输出 （I/O） 信号，这些信号可能由 128,000 个离散 I/O 和 4000 个模拟 I/O 组成。

1756-L72S 是一款环保型控制器，因为它配备了现代储能模块而不是传统的锂电池来保留随机存取存储器 （RAM）。这些内存存储模块包括控制器随附的 1756-ESMCAP;1756-ESMNSE 是可拆卸、无残留的 WallClockTime 备用电源，或 1756-ESMNRM 是不可拆卸的，有助于防止 USB 连接和 SD 卡使用，以帮助保护控制器。

1756-L72S AB 是 Logix5000 系列控制器的一部分

Allen-Bradley 1756-L72S is the GuardLogix 5570 controller, part of the Logix5000 series of controllers. It is a ControlLogix controller with security controls. It is a dual-processor solution that must be used in conjunction with the 1756-L7SP safety module to meet SIL 3 or Cat standards. 4/PLe Safety standard. The Security Partner controller is automatically configured to benefit individual projects. It has excellent processing power and motion speed as well as high-performance logic. It has a USB port for communication. It supports up to 500 controller connections. The 1756-L72S controller has 4MB of user memory, 2MB of security memory, and 0.98MB of I/O memory. It can support 128,000 digital I/ OS and 4,000 analog I/ OS. It consumes 2mA of current at 5.1V DC and 1mA at 800.5V DC. It has a power consumption of 2.5W and a heat dissipation of 8.5 BTU/ hour. It weighs 0.55 pounds and has an isolation voltage of 30V (continuous) for basic insulation. It can be installed in any slot in the ControlLogix 1756 case, or multiple controllers can be installed in the same case. For secure communication, it uses ControlNet, DeviceNet, or EtherNet/IP networks. The 1756-L72S controller can control or monitor I/O through the backplane or through the I/O link. For controller diagnostics, it has a front display that provides runtime information. It operates using energy storage modules, which means there is no need for lithium batteries. A 1 GB (1784-SD1) secure digital card is pre-installed as an optional non-volatile memory, expandable up to 2 GB (1784-SD2).

The Allen-Bradley 1756-L72S is a 5570 GuardLogix programmable Automation controller (PAC). The controller has both standard and safety controller functions. This controller is the master controller and is used with a security partner with catalog number 1756-L7SP or 1756-L7SPK to reach Security Integration Level (SIL) Category Level (CL) 3/ Performance Level e (PLe) /Cat. 4. Rating. With the 1756-L72S, unlike dedicated safety controllers, standards and safety items are integrated in a single file.

The 1756-L72S has a large-capacity standard memory and a dedicated security memory. These memory areas include 4 MB of user memory, 2 MB of safe memory, 0.98 MB of I/O memory, and 1 GB of non-volatile memory, provided by the 1784-SD1 that came with the controller. It enables the 1756-L72S to connect up to 128,000 input and output (I/O) signals, which may consist of 128,000 discrete I/ OS and 4,000 analog I/ OS.

The 1756-L72S is an environmentally friendly controller because it is equipped with a modern energy storage module instead of a traditional lithium battery to retain random access memory (RAM). These memory storage modules include the 1756-ESMCAP that comes with the controller; The 1756-ESMNSE is a removable, residual-free WallClockTime backup power supply, or the 1756-ESMNRM is non-removable, helping to prevent USB connections and SD card use to help protect the controller.

1756-L72S AB 是 Logix5000 系列控制器的一部分
