1756-L72 AB 是一款 ControlLogix 系列可编程自动化控制器

1756-L72 AB 是一款 ControlLogix 系列可编程自动化控制器

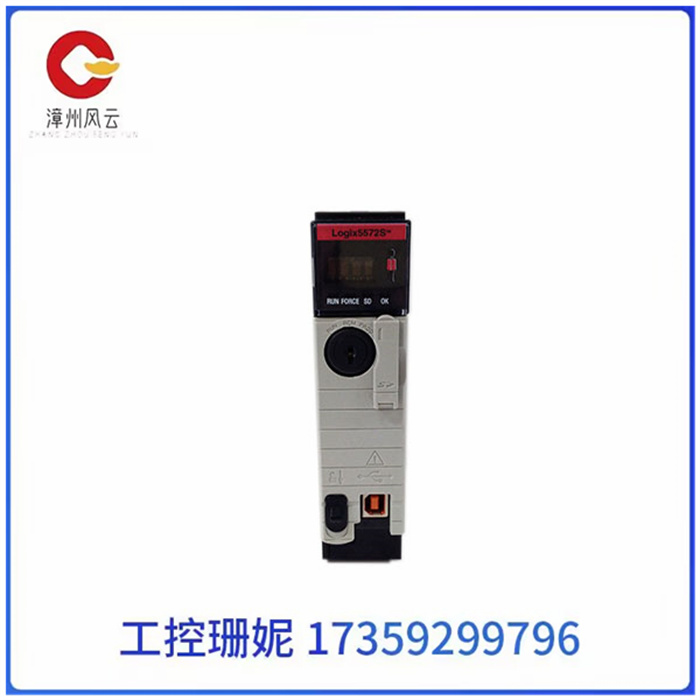

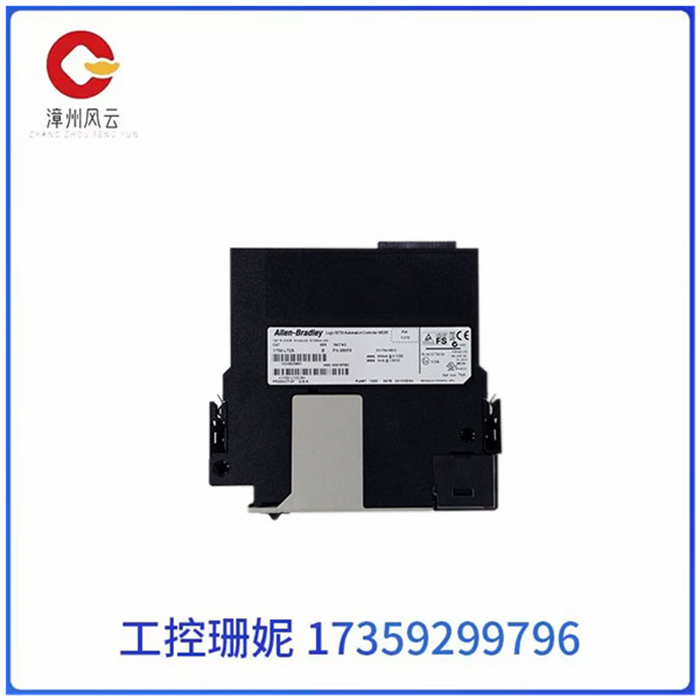

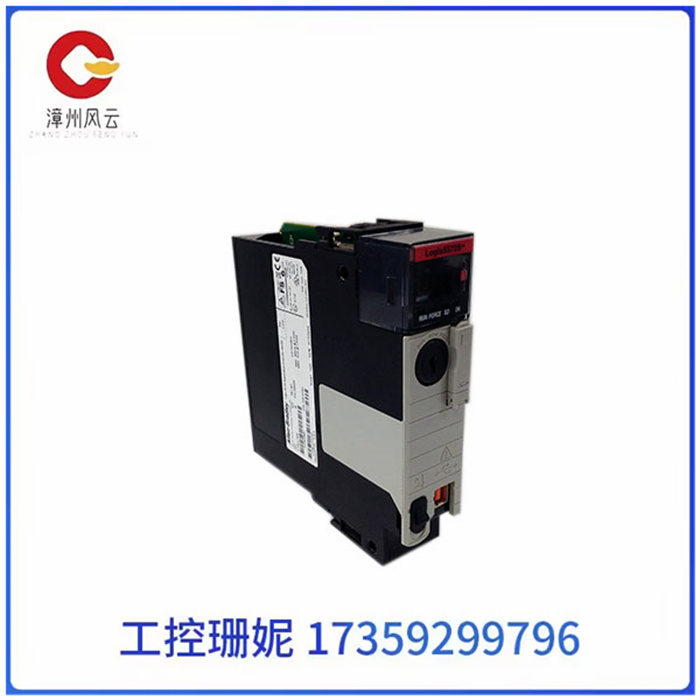

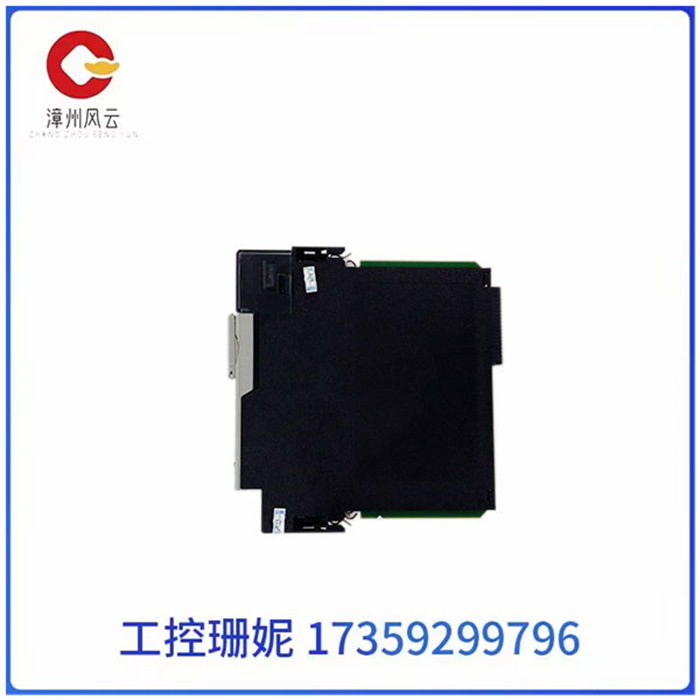

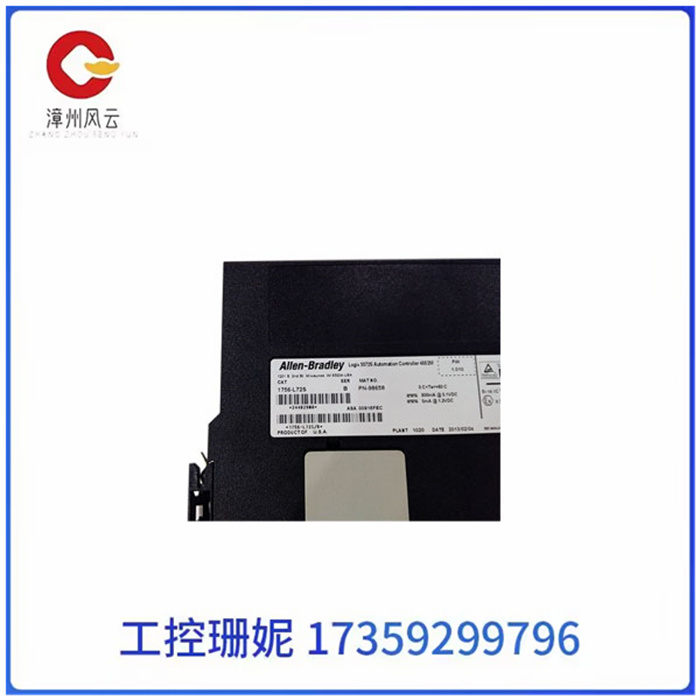

Allen-Bradley 1756-L72 是一款 ControlLogix 系列可编程自动化控制器 （PAC）。它具有用于数据和逻辑的 4 MB 用户存储器和 0.98 MB I/O 存储器。控制器随附 1 GB SD 卡 1784-SD1，可用作可选的非易失性存储器存储。如果存储空间不足以供您使用，您也可以通过 1784-SD2 卡将其升级到 2 GB。建议将 SD 卡安装到控制器上，并且仅使用罗克韦尔自动化销售的 SD 卡，因为这些卡已经过全面测试，可与控制器配合使用。使用其他SD卡会带来数据丢失或损坏的风险。

SD 卡主要用于存储发生故障时自动写入的诊断数据。罗克韦尔自动化将这些数据用于故障排除目的。1756-L72控制器还配备了三个电容储能模块。1756-ESMCAP/1756-ESMCAPK 是每个控制器中可用的可拆卸模块。另一个可移动模块是1756-ESMNSE / 1756-ESMNSEK，它没有剩余的WallClockTime电源备份。唯一不可拆卸的模块是 1756-ESMNRM/1756-ESMNRMK，它有助于防止 USB 连接和 SD 卡的使用，以帮助保护控制器。

您可以将 1756-L72 控制器与特定模块一起使用来创建装甲控制 Logix 控制器。当与类似的控制器配对并在同一 ControlNet 网络中时，它可以支持控制器冗余。与此控制器兼容的 ControlLogix 机箱为 1756-A4、1756-A4K、1756-A7、1756-A7K、1756-A10、1756-A10K、1756-A13、1756-A13K、1756-A17 和 1756-A17K。它还具有 1 个全速 USB 2.0 端口和一个 4 个字符的字母数字显示屏，供您查看其当前状态。1756-L72 控制器提供多种通信选项，包括 Data Highway Plus、DeviceNet、Ethernet/IP、Remote I/O、SynchLink、ControlNet 以及第三方过程和设备网络。该控制器具有 30 伏的连续隔离电压，并在 500 伏交流电下进行了 60 秒的型式测试。它在 1.2 伏直流电时的电流消耗为 5 mA，在 5.1 伏直流电时为 800 mA。1756-L72 控制器的功耗为 2.5 瓦，热耗散为 8.5 BTU/小时。控制器的存储温度范围为 -40 至 85 摄氏度，而其工作温度范围为 0 至 60 摄氏度。它在 10 至 500 赫兹时具有 2 G 的振动，30 G 的工作冲击和 50 G 的非工作冲击.

1756-L72 AB 是一款 ControlLogix 系列可编程自动化控制器

The Allen-Bradley 1756-L72 is a ControlLogix series programmable automation controller (PAC). It has 4 MB of user memory and 0.98 MB of I/O memory for data and logic. The controller comes with a 1 GB SD card 1784-SD1, which can be used as optional non-volatile memory storage. If the storage space is not enough for you, you can also upgrade it to 2 GB with the 1784-SD2 card. It is recommended to install SD cards to the controller and only use SD cards sold by Rockwell Automation, as these cards have been thoroughly tested to work with the controller. Using other SD cards carries the risk of data loss or corruption.

The SD card is mainly used to store diagnostic data that is automatically written when a fault occurs. Rockwell Automation uses this data for troubleshooting purposes. The 1756-L72 controller is also equipped with three capacitive energy storage modules. The 1756-ESMCAP/1756-ESMCAPK is a detachable module available in each controller. Another removable module is the 1756-ESMNSE / 1756-ESMNSEK, which has no remaining WallClockTime power backup. The only non-detachable module is the 1756-ESMNRM/1756-ESMNRMK, which helps prevent USB connections and the use of SD cards to help protect the controller.

You can use the 1756-L72 controller with specific modules to create the armor control Logix controller. When paired with similar controllers and in the same ControlNet network, it can support controller redundancy. The ControlLogix chassis compatible with this controller are 1756-A4, 1756-A4K, 1756-A7, 1756-A7K, 1756-A10, 1756-A10K, 1756-A13, 1756-A13K, 1756-A17, and 1756-A17K. It also has a full speed USB 2.0 port and a 4-character alphanumeric display for you to view its current status. The 1756-L72 controller offers a variety of communication options, including Data Highway Plus, DeviceNet, Ethernet/IP, Remote I/O, SynchLink, ControlNet, and third-party process and device networking. The controller has a continuous isolation voltage of 30 volts and was type-tested for 60 seconds at 500 volts AC. Its current consumption is 5 mA at 1.2 volts DC and 800 mA at 5.1 volts DC. The 1756-L72 controller has a power consumption of 2.5 watts and a heat dissipation of 8.5 BTU/ hour. The controller has a storage temperature range of -40 to 85 degrees Celsius, while its operating temperature range is 0 to 60 degrees Celsius. It has a vibration of 2 G at 10 to 500 Hz, a working shock of 30 G and a non-working shock of 50 G.

1756-L72 AB 是一款 ControlLogix 系列可编程自动化控制器
