20BD096A0AYNANC0 AB 是一款变速驱动器

20BD096A0AYNANC0 AB 是一款变速驱动器

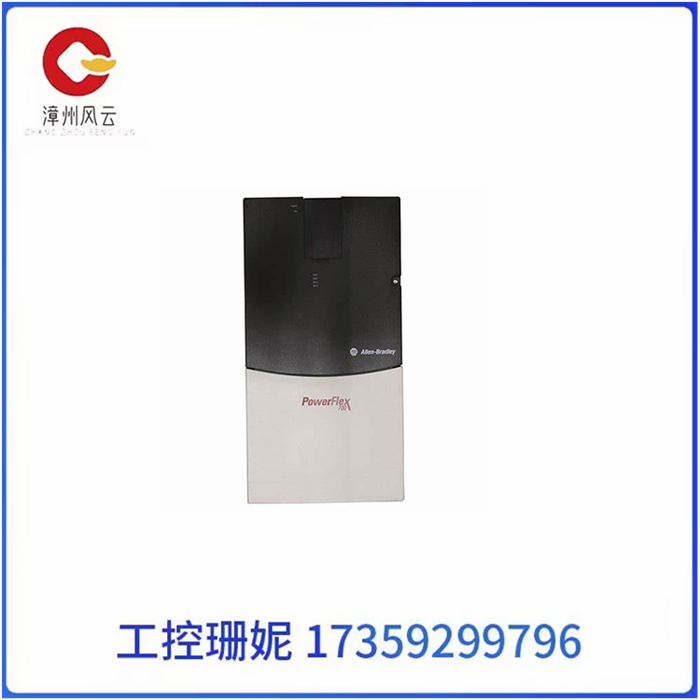

20BD096A0AYNANC0是一款变速驱动器，包含在罗克韦尔自动化制造的Powerflex 700系列中。

罗克韦尔自动化 20BD096A0AYNANC0 变速驱动器包含在该系列的框架 5 中，它以 480 伏交流电、96 安培的 ND 额定值和 75 马力以及 50 至 60 赫兹的频率范围运行。默认情况下，它被设计为与三阶段应用程序一起运行。罗克韦尔自动化 20BD096A0AYNANC0 变频器需要安装在温度不超过 50 摄氏度、相对湿度不超过 5% 至 95% 的清洁环境中。如果是极热的环境，建议安装空调。还建议在驱动器周围留有间隙，以促进通风。

罗克韦尔自动化 20BD096A0AYNANC0 变速驱动器需要接地，包括其所有设备。推荐的电源电缆是用于 600 伏和 90 摄氏度操作的电缆，这些电缆可以带有 PVC 护套。对于控制接线，始终建议使用绝缘额定值为 600 伏或更高的铜线。当驱动器要安装在居民区附近时，建议使用滤波器进行射频修改。罗克韦尔自动化 20BD096A0AYNANC0 变频器不包括通信模块。可以选择兼容的通信模块以适应网络。该驱动器包括一个24伏直流矢量控制I&O。

20BD096A0AYNANC0 AB 是一款变速驱动器

The 20BD096A0AYNANC0 is a variable speed drive included in the Powerflex 700 series manufactured by Rockwell Automation.

The Rockwell Automation 20BD096A0AYNANC0 variable speed drive is included in the frame 5 of the series, which operates at 480 volts AC, an ND rating of 96 amps and a frequency range of 75 horsepower and 50 to 60 Hertz. By default, it is designed to run with three-phase applications. Rockwell Automation 20BD096A0AYNANC0 inverters need to be installed in a clean environment where the temperature does not exceed 50 degrees Celsius and the relative humidity does not exceed 5% to 95%. In an extremely hot environment, you are advised to install air conditioners. It is also recommended to leave gaps around the drive to facilitate ventilation.

Rockwell Automation 20BD096A0AYNANC0 variable speed drives need to be grounded, including all of their equipment. The recommended power cables are those for 600 volts and 90 degrees Celsius operation, and these cables can come with PVC sheathing. For control wiring, copper wire with an insulation rating of 600 volts or higher is always recommended. When the driver is to be installed near a residential area, it is recommended to use a filter for RF modifications. The Rockwell Automation 20BD096A0AYNANC0 inverter does not include a communication module. Compatible communication modules can be selected to suit the network. The drive includes a 24 volt DC vector control I&O.

20BD096A0AYNANC0 AB 是一款变速驱动器
