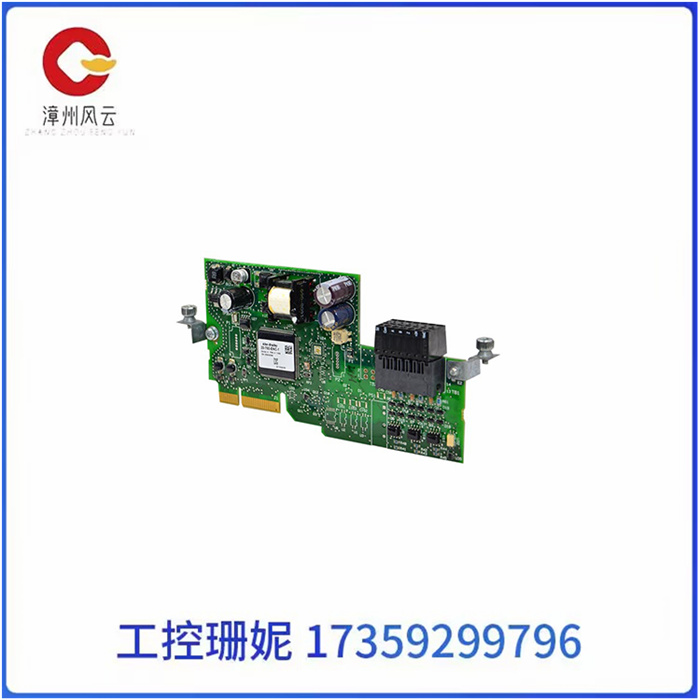

Allen-Bradley 20-750-ENC-1是一种增星式编码器模块，用于兼容PowerHlex 753、PowerHlex 755、PowerHlex755TL和PowerFHlex755TR可调频率交流驱动器。该编码器模块提供了实现环路定位控制的能力，这是PowerFlex700类驱动器支持的控制能力之一。

该编码器模块特别适合安装在框架A驱动的PowerHlex 753端口4和5中;以及用于框架2和更高驱动器的端口4、5和6。它也可以与Powerflex755驱动器—起使用，并安装到框架1驱动器的端口4和5以及PowerFHlex框架2和更高驱动器的端口4、5、6和7。如果与PowerHlex755T—起使用，它可以安装在第5-15帧妈区动器的端口4、5、6、7和8中。

20-750-ENC-1支持单端或差分操作。它具有恒定吸电流操作，功耗约为10 mA。这些模块的输入电压范围为5VDC-15VDC，源电流消耗为10mA。编码器通道的最小高态电压为3.5VDC，最大低态电压为0.4 VDC。连接到编码器模块的电线在5V时不得超过30米(100英尺)，在12V时不得超过183米(600英尺)。它与开关频率为250 kHz的输入设备兼容。该编码器模块支持驱动器供电和单独供电的编码器电源配置。它有一个TB1端子，由14个引脚组成，用于信号和电源电压布线。

20-750-ENC-1 AB PowerFlex7系列 变频器面板

Allen-Bradley 20-750-ENC-1 is an augmented star encoder module for compatibility with PowerHlex 753, PowerHlex755, PowerHlex755TL, and PowerFHlex755TR tunable frequency AC drives. The encoder module provides the ability to implement loop positioning control, one of the control capabilities supported by PowerFlex700 class drives.

The encoder module is particularly suitable for installation in PowerHlex 753 ports 4 and 5 driven by frame A; And ports 4, 5, and 6 for Frame 2 and higher drives. It can also be used with Powerflex755 drives - and installed to ports 4 and 5 of Frame 1 drives and ports 4, 5, 6 and 7 of PowerFHlex frame 2 and higher drives. If used with PowerHlex755T -, it can be installed in ports 4, 5, 6, 7 and 8 of the frame 5-15 motor.

20-750-ENC-1 Supports single-ended or differential operation. It has constant current absorption operation and a power consumption of about 10 mA. These modules have an input voltage range of 5VD-15VDC and a source current consumption of 10mA. The encoder channel has a minimum high-state voltage of 3.5VDC and a maximum low-state voltage of 0.4 VDC. The wire connected to the encoder module must not exceed 30 meters (100 ft) at 5V and 183 meters (600 ft) at 12V. It is compatible with input devices with a switching frequency of 250 kHz. The encoder module supports both driver powered and individually powered encoder power configurations. It has a TB1 terminal consisting of 14 pins for signal and supply voltage wiring.
