2098-DSD-010X 数字伺服分度驱动器

2098-DSD-010X 数字伺服分度驱动器

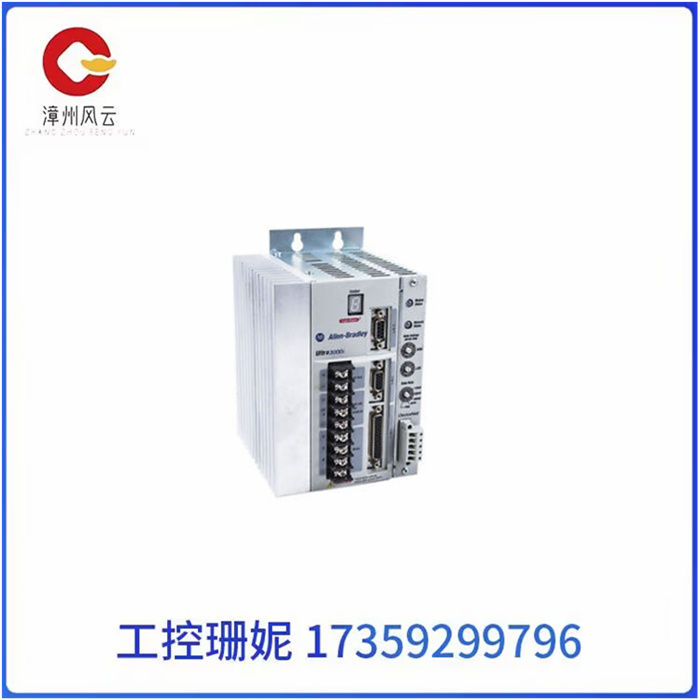

2098-DSD-010X 是一款艾伦-布拉德利 Ultra 3000i 数字伺服分度驱动器。该分度驱动器能够与预配置的移动一起存储，这些移动可以是相对的，也可以是绝对的，具体取决于所需的运动应用。

2098-DSD-010X 要求输入电压为 100-240VAC rms，1 相，输入电流为 9 A，频率范围为 47-63 Hz。输出电压范围为100-240VAC，频率为0-400Hz，连续输出功率为1kW，连续输出电流为5A，间歇输出电流为15A。 该分度驱动器的所有自动化和状态 LED 都安装在设备的前面板上。

它配备了七段状态指示灯、用于有源分流电阻器安装的直流母线连接、用于连接输入电压电源的交流输入电源连接。安装在底部的是电机电源电缆屏蔽夹，用于将输入电源线固定到位并提供噪声消除。它具有CN3 9针串行端口连接器，用于通过RS232或RS485通信标准与驱动器通信，CN2 15针电机反馈连接器用于连接电机反馈信号，CN1 44针用户I / O连接器用于连接外部输入和输出信号。

2098-DSD-010X 数字伺服分度驱动器

The 2098-DSD-010X is an Allen-Bradley Ultra 3000i digital servo indexing driver. The index driver is capable of being stored with pre-configured moves that can be either relative or absolute, depending on the desired motion application.

The 2098-DSD-010X requires input voltage of 100-240VAC rms, 1 phase, input current of 9 A, and frequency range of 47-63 Hz. The output voltage range is 100-240VAC, the frequency is 0-400Hz, the continuous output power is 1kW, the continuous output current is 5A, the intermittent output current is 15A. All automation and status leds for this indexing driver are installed on the front panel of the device.

It is equipped with a seven-segment status indicator, a DC bus connection for active shunt resistor installation, and an AC input power connection for input voltage supply. Mounted on the bottom are the motor power cable shielding clips that hold the input power cord in place and provide noise cancellation. It features a CN3 9-pin serial port connector for communicating with the driver via RS232 or RS485 communication standards, a CN2 15-pin motor feedback connector for connecting motor feedback signals, and a CN1 44-pin user I/O connector for connecting external input and output signals.

2098-DSD-010X 数字伺服分度驱动器
