1771-IXE是一款PLC 5模拟输入模块

1771-IXE是一款PLC 5模拟输入模块

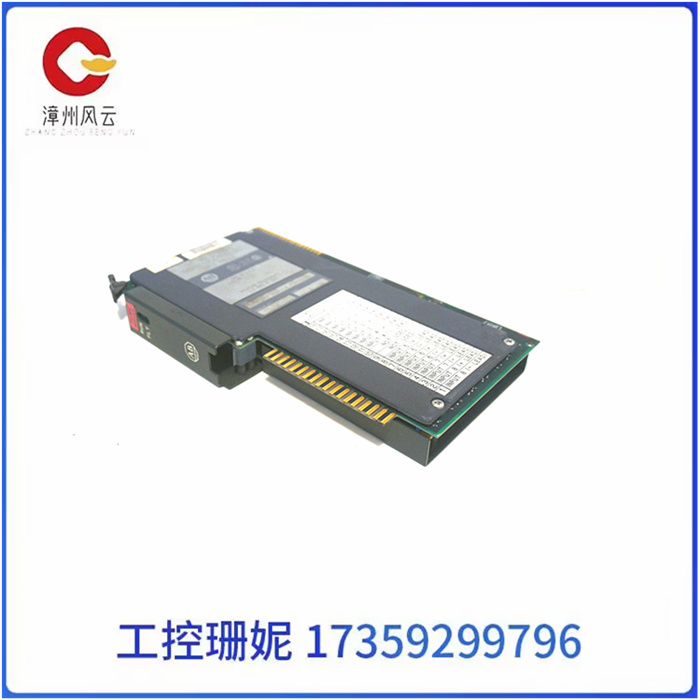

Allen-Bradley 1771-IXE是一款PLC 5模拟输入模块。它是一个热电偶/毫伏输入模块。该模块利用块传输读写 （BTR） 和 （BTW） 指令将输入数据字从其存储器传输到 PLC 处理器。1771-IXE 需要一个单插槽才能安装在 1771 I/O 机箱中，并且不需要外部电源。1771-IXE 模块具有 8 个用于热电偶或毫伏输入范围的浮动差分输入，包括 E、J、K、T、R 和 S 型热电偶以及 +/-100 毫伏。允许 8 个相同类型的输入或 4 种不同类型中的 2 个输入。1771-IXE 包括冷端补偿，范围为 0 至 60 摄氏度，精度为 +/-0.5 摄氏度。它具有可选的摄氏或华氏温标，温度分辨率为1摄氏度或1华氏度，毫伏分辨率为10μV.Allen-Bradley

1771-IXE在750V时需要5mA的背板电流负载，并且每50个通道的通道更新时间为8毫秒。其接线连接到 1771-WI 现场接线臂，更换模块时无需断开电线。1771-IXE 的最大功耗为 4.25 瓦，最大热耗散为 14.5 BTU/小时。键控带必须放在引脚 20 到 22 和引脚 24 到 26 之间，它们只接受此模块。1771-IXE模块具有可由用户选择的高温和低温报警。它在前面板上包含一个绿色 RUN 和一个红色 FLT 指示灯，用于显示电源和故障状态。在上电期间，它会执行自诊断并报告其状态。它在热电偶发生故障时提供开路检测。1771-IXE 可自动校准每个通道的失调和增益，无需电位计。

Allen-Bradley 1771-IXE是一个模拟输入模块，具有八（8）个热电偶和毫伏输入通道。该模块兼容任何 PLC5 机箱的安装。该模块可以配置为摄氏和华氏刻度。

1771-IXE是一款PLC 5模拟输入模块

The Allen-Bradley 1771-IXE is a PLC 5 analog input module. It is a thermocouple/millivolt input module. The module uses Block Transfer Read/write (BTR) and (BTW) instructions to transfer input data words from its memory to the PLC processor. The 1771-IXE requires a single slot to fit in the 1771 I/O case and does not require an external power supply. The 1771-IXE module has eight floating differential inputs for thermocouple or millivolt input ranges, including type E, J, K, T, R, and S thermocouples and +/-100 millivolts. Allow 8 inputs of the same type or 2 inputs of 4 different types. The 1771-IXE includes cold end compensation with a range of 0 to 60 degrees Celsius and an accuracy of +/-0.5 degrees Celsius. It has a selectable Celsius or Fahrenheit temperature scale with a temperature resolution of 1 degree Celsius or 1 degree Fahrenheit and a millivolt resolution of 10 μv.Aren-Bradley

The 1771-IXE requires a backplane current load of 5mA at 750V and has a channel update time of 8 milliseconds per 50 channels. The cable is connected to the 1771-WI field connection arm, so there is no need to disconnect the cable when replacing the module. The 1771-IXE has a maximum power consumption of 4.25 watts and a maximum heat dissipation of 14.5 BTU/ hour. The keying tape must be placed between pins 20 to 22 and 24 to 26, and they only accept this module. The 1771-IXE module has user selectable high and low temperature alarms. It contains a green RUN and a red FLT indicator on the front panel to show power and fault status. During power-on, it performs a self-diagnosis and reports its status. It provides open circuit detection in case of thermocouple failure. The 1771-IXE automatically calibrates the offset and gain of each channel without the need for a potentiometer.

Allen-Bradley 1771-IXE is an analog input module with eight (8) thermocouples and millivolt input channels. The module is compatible with any PLC5 chassis installation. The module can be configured for both Celsius and Fahrenheit scales.

1771-IXE是一款PLC 5模拟输入模块
