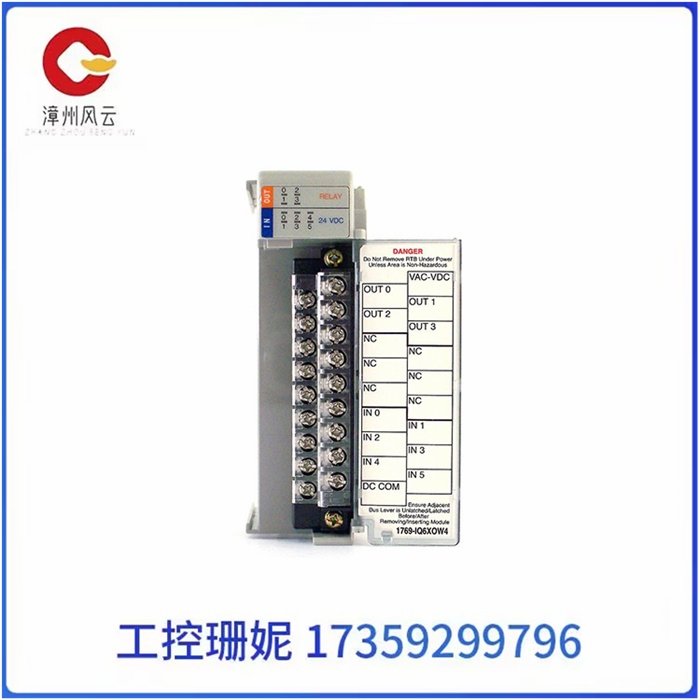

Allen-Bradley 1769-IQ6XOW4 紧凑型数字 DC I/O 模块是灌电流/拉电流输入和 AC/DC 继电器输出组合模块。它可以使用安装螺钉安装在DIN导轨或面板上。它旨在与其他模块完美配合以构建组件或系统。1769-IQ6XOW4的榫槽设计将其与其他模块锁定在一起。它还具有集成通信总线，通过可移动总线连接器将一个模块连接到另一个模块。

10 通道 1769-IQ6XOW4 紧凑型 I/O 模块配有 24 个 10V 直流灌电流/拉电流输入和 30 个 AC/DC 常开继电器触点输出。对于其输入，它的工作电压范围为 30 °C （86 °F） 时为 10-26V DC，4 °C （60 °F） 时的工作电压范围为 140-5.265V DC。对于输出，额定工作电压介于 5 至 125V AC 和 250 至 3V DC 之间。它的最大浪涌电流为 2 mA，兼容 5 类 IEC 输入。每点最大电流为 8.1769 A，而每个模块的最大电流为 6 A。4-IQ22XOW2 组合模块已通过 C-UL 认证（根据 CSA C142.508 No. 8），UL <> 列名，并符合所有适用指令的 CE 和 C-Tick 标准。

为了获得最佳性能，它应该安装在远离电源的 <> 个模块上。确保足够的通风和适当的位置，以实现平稳运行并延长设备使用寿命。

1769-IQ6XOW4 紧凑型数字 DC I/O 模块是灌电流

The Allen-Bradley 1769-IQ6XOW4 compact digital DC I/O module is a combination module of feed/pull current input and AC/DC relay output. It can be mounted on a DIN rail or panel using mounting screws. It is designed to work perfectly with other modules to build components or systems. The mortise and groove design of the 1769-IQ6XOW4 locks it in with the other modules. It also has an integrated communication bus that connects one module to another via a removable bus connector.

The 10-channel 1769-IQ6XOW4 compact I/O module features 24 10V DC feed/pull current inputs and 30 AC/DC normally open relay contact outputs. For its inputs, it operates in a voltage range of 10-26V DC at 30 °C (86 °F) and 140-5.265V DC at 4 °C (60 °F). For output, the rated operating voltage is between 5 to 125V AC and 250 to 3V DC. It has a maximum surge current of 2 mA and is compatible with 5 types of IEC inputs. The maximum current per point is 8.1769 A, while the maximum current per module is 6 A. 4-IQ22XOW2 modular module has passed the C-UL certification (according to CSA C142.508 No.8), UL <> list, and meets the CE and C-Tick standards of all applicable directives.

For best performance, it should be installed on <> modules away from the power supply. Ensure adequate ventilation and proper placement for smooth operation and extended equipment life.
