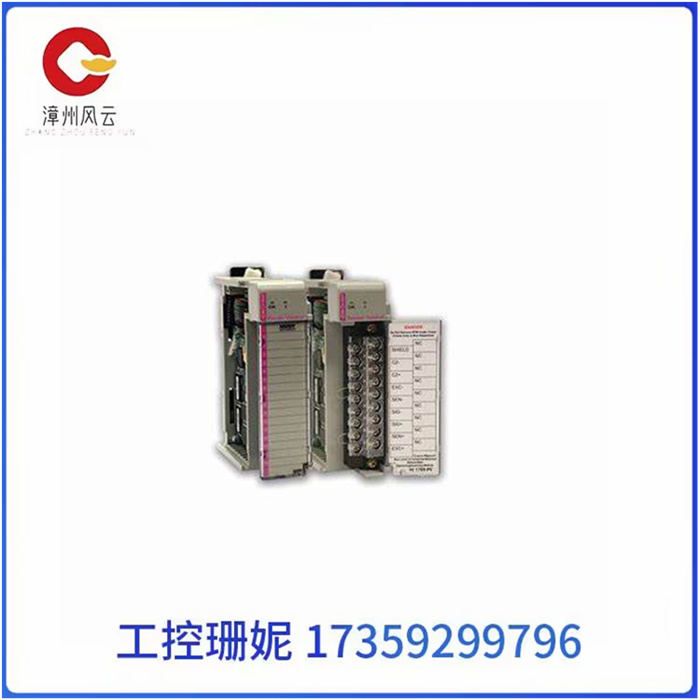

1769-2WS 固态模块 可编程逻辑控制器

1769-2WS 固态模块 可编程逻辑控制器

1769-2WS 是 CompactLogix 兼容模块，由罗克韦尔自动化银牌技术合作伙伴公司 Hardy Process Solutions 制造。该模块是双通道称重模块，支持连接多达八（8）个称重传感器/点。1769-2WS 在背板提供的 5VDC 电源下，背板功耗为 < o.5 安培。该模块接受-0.3mV至+15.3 mV信号，检测+5Vdc，模块输出为5VDC激励电压。

它在 100 Hz（最小值）或以下具有 60dB 的共模抑制和 1：8,388,608 的内部模块分辨率。该模块可在净量、毛重、变化率称重模式下运行，数据转换率为每秒 100 次更新。该模块支持使用电子方法（C2）和传统方法（使用测试砝码）的两（2）种校准方法。1769-2WS 占用背板的单个插槽，支持 DIN 导轨或面板安装。它通过模块侧面的集成背板连接器引脚连接到背板，该引脚直接耦合到相邻模块。该模块具有内置状态指示灯，例如“OK”模块状态，双色LED“规模1”功能数据，双色LED“规模2”功能数据，双色LED。

Hardy HI 1769-2WS模块是由Hardy Process Solutions专门设计和制造的固态模块，作为双通道模块，可适配为Allen-Bradley MicroLogix1500和CompactLogix系列可编程逻辑控制器。Hardy HI 1769-2WS 模块的主要目的是读取和调节由一对或几对应变片负载传感器或称重传感器测量的数据，以便由 MicroLogix 1500 或 CompactLogix 系列 PLC 进一步处理。使用该模块，无需外部独立秤即可进行实时重量测量。相反，该模块直接内置于需要称重材料的系统中。 Hardy HI 1769-2WS 模块可用于为多达 5 个 350 欧姆负载传感器或带有两个刻度的称重传感器提供 0 伏直流电压。使用外部电源可以支持额外的称重传感器。模块的输入信号将数据带到PLC工作，模拟范围为-3.15 mV至+3.0 mV。模块的工作温度范围为 60 至 32 摄氏度（140 至 1769 华氏度）。有两种不同的方法来校准Hardy HI 2-2WS砝码模块，它们是专有的C<>电子校准方法和使用测试砝码的传统方法。

1769-2WS 固态模块 可编程逻辑控制器

The 1769-2WS is a CompactLogix-compatible module manufactured by Hardy Process Solutions, a Silver technology partner of Rockwell Automation. The module is a dual-channel weighing module that supports the connection of up to eight (8) weighing sensors/points. The 1769-2WS has a backplane power consumption of < o.5 amps under the 5VDC power supply provided by the backplane. The module accepts signals from -0.3mV to + 15.3mV, detects +5Vdc, and the module outputs a 5VDC excitation voltage.

It has 60dB common-mode rejection at 100 Hz (minimum) or below and an internal module resolution of 1:8,388,608. The module can be operated in net, gross and rate of change weighing modes with a data conversion rate of 100 updates per second. The module supports two (2) calibration methods using electronic methods (C2) and traditional methods (using test weights). The 1769-2WS occupies a single slot in the backplane and supports DIN rail or panel mounting. It is connected to the backplane via an integrated backplane connector pin on the side of the module, which is coupled directly to the adjacent module. The module has built-in status indicators, such as "OK" module status, two-color LED "Scale 1" function data, two-color LED "Scale 2" function data, two-color LED.

The Hardy HI 1769-2WS module is a solid state module specifically designed and manufactured by Hardy Process Solutions as a dual channel module. Compatible with Allen-Bradley MicroLogix1500 and CompactLogix series programmable logic controllers. The main purpose of the Hardy HI 1769-2WS module is to read and regulate data measured by one or more pairs of strain gauge load sensors or load cells for further processing by MicroLogix 1500 or the CompactLogix series PLC. With this module, real-time weight measurements can be made without the need for an external independent scale. Instead, the module is built directly into the system where the material needs to be weighed. The Hardy HI 1769-2WS module can be used to supply 0 volts DC for up to five 350 ohm load sensors or load cells with two scales. Additional load cells can be supported using an external power supply. The input signal of the module brings the data to the PLC to work, and the analog range is -3.15 mV to +3.0 mV. Modules operate in a temperature range of 60 to 32 degrees Celsius (140 to 1769 degrees Fahrenheit). There are two different ways to calibrate the Hardy HI 2-2WS weight module, they are the proprietary C<> electronic calibration method and the traditional method using test weights.

1769-2WS 固态模块 可编程逻辑控制器
