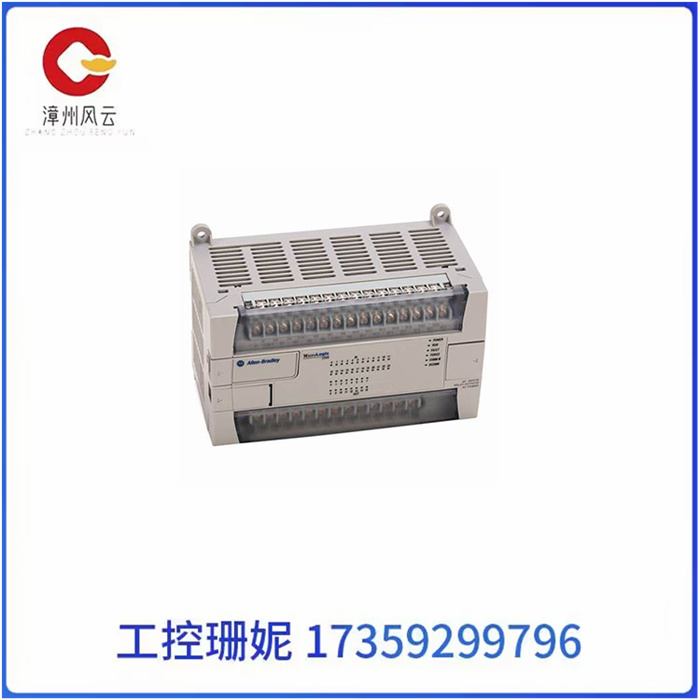

1762-L40BWA 是一款可编程逻辑控制器 （PLC）。该控制器是Allen-Bradley的MicroLogix 1200。它总共具有四十 （40） 个输入和输出通道，具体包括二十四 （24） 个离散输入和十四 （14） 个离散输出。输入通道设计用于连接通过灌电流和拉电流布线配置承载 24VDC 的输入设备。输出是额定电压为 25-125 VDC 或 120 - 240 VAC 的触点输出，机械寿命为 20,000,000 次循环，额定负载至少为 10A。

该控制器具有集成的 8 针迷你 DIN RS232 通信端口，支持 DH-485、DF1 全双工和半双工、Modbus 主从和 ASCII 协议。此控制器中的 DF1、ASCII 和 Modbus 以对等配置运行。转换器可用于多路复用串行端口，以允许与多个设备通信。这些转换器可以是RS223到以太网转换器的RS232到RS485转换器。DH-485 非常适合使用外部转换器（如 1761-NET-AIC）连接到网络总线。

由于 1762-L40BWA 是电子设备，因此需要安装到为设备提供充分保护的外壳上。外壳温度必须保持在 +0°C 至 +55°C 的温度。 建议在外壳中安装适当的气候控制设备，例如加热器、风扇或两者的组合，具体取决于安装位置。

1762-L40BWA 是一款可编程逻辑控制器

The 1762-L40BWA is a programmable logic controller (PLC). The controller is Allen-Bradley's MicroLogix 1200. It has a total of forty (40) input and output channels, specifically consisting of twenty-four (24) discrete inputs and fourteen (14) discrete outputs. The input channels are designed to connect input devices that carry 24VDC through the feed and pull current wiring configurations. The output is a contact output with a rated voltage of 25-125 VDC or 120-240 VAC, a mechanical life of 20,000,000 cycles, and a rated load of at least 10A.

The controller features an integrated 8-pin mini DIN RS232 communication port and supports DH-485, DF1 full duplex and half duplex, Modbus master-slave and ASCII protocols. DF1, ASCII, and Modbus in this controller run in a peer-to-peer configuration. Converters can be used to multiplex serial ports to allow communication with multiple devices. These converters can be RS223 to Ethernet converters and RS232 to RS485 converters. The DH-485 is ideal for connecting to a network bus using an external converter such as the 1761-NET-AIC.

Since the 1762-L40BWA is an electronic device, it needs to be mounted to a housing that provides adequate protection for the device. The housing temperature must be maintained at +0°C to +55°C. It is recommended to install appropriate climate control devices in the housing, such as heaters, fans, or a combination of both, depending on the installation location.
