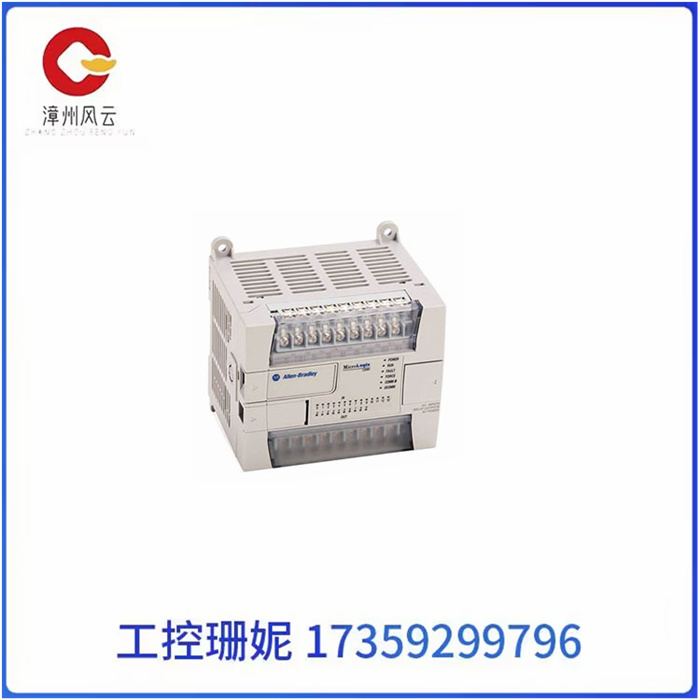

1762-L24BXB是一款Allen-Bradley MicroLogix控制器

1762-L24BXB是一款Allen-Bradley MicroLogix控制器制造者罗克韦尔自动化电源使用情况40电源浪涌电流120V 交流:25A 持续 8 毫秒;240V 交流:40A 持续 4 ms环境工作温度0 至 55 摄氏度支持的协议DF1, DH-485, ASCII, MODBUS通信端口一 (1) 个 8 针迷你 DIN 串行端口;负载电流10A,最小值机械循环2000000

立即咨询立即咨询

咨询电话 :17359299796

微信:17359299796邮箱:A3669372910@163.com

产品详情

1762-L24BXB是一款Allen-Bradley MicroLogix控制器

制造者罗克韦尔自动化
电源使用情况40
电源浪涌电流120V 交流:25A 持续 8 毫秒;240V 交流:40A 持续 4 ms
环境工作温度0 至 55 摄氏度
支持的协议DF1, DH-485, ASCII, MODBUS
通信端口一 (1) 个 8 针迷你 DIN 串行端口;
负载电流10A,最小值
机械循环20000000
继电器触点额定值24-125伏直流;120-240伏交流电
输出电路类型中继;场效应管


1762-L24BXB是一款Allen-Bradley MicroLogix控制器

1762-L24BXB是一款Allen-Bradley MicroLogix控制器。该控制器非常适合微型和小型自动化要求。该控制器是紧凑型控制器,提供全面的I / O通道,例如十(10)个标准24VDC输入,四(4)个快速24VDC输入,五(5)个继电器,四(4)个24VDC FET和一(1)个高速输出。这些 I/O 通道使该控制器可用于通用和某些特定应用,例如计数、累计和位置监控。


1762-L24BXB 具有内置电源,可在 24VDC 的标称输入电源电压下工作。它配备了一个迷你 DIN 8 针圆形 RS232 连接器,该连接器安装在控制器的前面板上,可用于大多数通信功能,特别是编程、硬件配置、在线编辑以及与监控和数据采集 (SCADA) 和人机界面 (HMI) 等可视化系统的通信。


1762-L24BXB 设计用于承受 15A 的浪涌电流 20 ms。嵌入式电源在 400VDC 时提供 5 mA 的输出电流,在 350VDC 时提供 24 mA 的输出电流,电源使用功率为 27 瓦。该控制器必须在 +0°C 至 +55°C (+32°F 至 +131°F) 的工作温度范围内运行,或存放在相对湿度为 40-85% 的 -40°C 至 +185°C(-5°F 至 +95°F)的设施中。


1762-L24BXB是一款Allen-Bradley MicroLogix控制器

The 1762-L24BXB is an Allen-Bradley MicroLogix controller. The controller is ideal for micro and small automation requirements. The controller is a compact controller that offers comprehensive I/O channels such as ten (10) standard 24VDC inputs, four (4) fast 24VDC inputs, five (5) relays, four (4) 24VDC FETs and one (1) high-speed outputs. These I/O channels enable the controller to be used for general purpose and certain specific applications, such as counting, accumulation, and location monitoring.


The 1762-L24BXB has a built-in power supply that operates at a nominal input power supply voltage of 24VDC. It is equipped with a mini DIN 8-pin circular RS232 connector, which is mounted on the front panel of the controller and can be used for most communication functions, especially programming, hardware configuration, online editing, and communication with visualization systems such as supervisory control and data Acquisition (SCADA) and human machine interface (HMI).


The 1762-L24BXB is designed to withstand a 15A surge current of 20 ms. The embedded power supply provides 5 mA output current at 400VDC and 24 mA output current at 350VDC, and the power used by the power supply is 27 watts. The controller must operate within an operating temperature range of +0°C to +55°C (+32°F to +131°F) or be stored in a facility with a relative humidity of 40-85% of -40°C to +185°C (-5°F to +95°F).


1762-L24BXB是一款Allen-Bradley MicroLogix控制器
