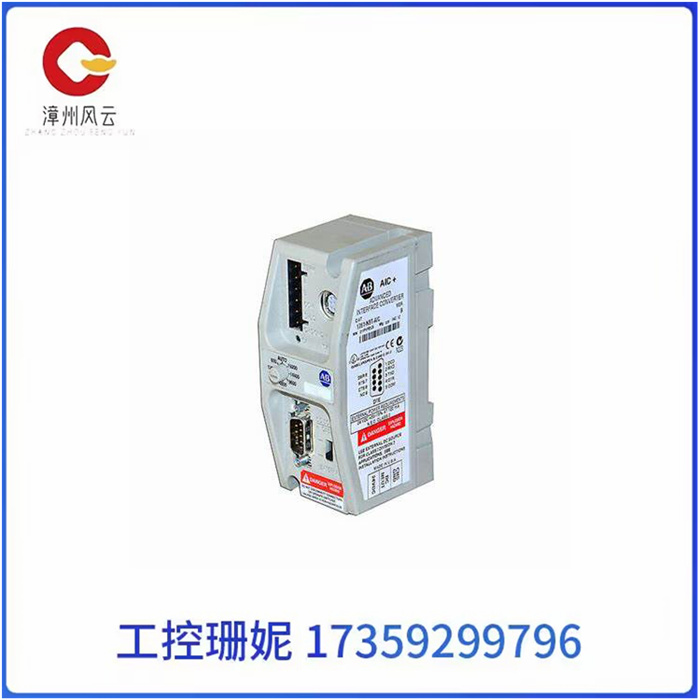

1761-NET-AIC是一款Allen Bradley MicroLogix 1000高级接口控制器。该模块属于MicroLogix 1000系列。它使启用DF1的设备能够与DH485网络通信。它与 MicroLogix 1000、1200 和 1500 控制器以及 SLC 控制器兼容。1761-NET-AIC 由连接到外部电源端子的外部 24VDC 电源供电。

转换器的通信速率滤波器通过通信速率选择器开关匹配网络通信速率。1761-NET-AIC 还兼容 SLC 处理器，如 SLC 5/01、5/02 和 5/03 处理器。1761-NET-AIC 可用作点对点隔离器或 RS-232 至 RS-485 隔离器。1761-NET-AIC 可以垂直或水平安装。通过使用硬件握手或通过自动传输信号支持与模块的通信。1761-NET-AIC 没有与网络端口预先关联的节点地址，这允许在通过端口连接的设备中配置节点地址。用户应注意，该模块具有许多操作特性。

1761-NET-AIC 是 DIN 导轨安装或面板安装组件，采用两 （2） 供电，例如提供外部 24VDC 电源电压或通过连接到桥接设备的通信电缆供电。

1761-NET-AIC 高级接口转换器具有两 （2） 个 RS232 通信端口，物理接口为 9 针 SUB-D 连接器型和 8 针迷你 DIN 圆形连接器型。此 AIC 还具有 DH485 凤凰插头连接器，可连接到 DH485 网络。此 AIC 的通信数据速率通过安装在此 AIC 前面板上的提供的选择器开关进行配置。

要使用通信电缆为 AIC 供电，必须将其与 MicroLogix 或 SLC 可编程逻辑控制器 （PLC） 一起使用。此外，应通过 8 针迷你 DIN 接口建立连接，因为该端子向 AIC 传输 24VDC 电源。此外，当打算通过通信电缆为设备供电时，电源开关位置必须处于“电缆”选项中。在其他情况下，AIC 必须由外部 24VDC 电源供电，并将开关分配到“外部”位置。

AIC 转换器主要用作点对点隔离器、RS232 至 RS485 隔离器和 RS232 至半双工用户模式 ASCII 隔离器。它设计用于与各种 SLC 500 处理器配合使用，例如 5/01、5/02 和 5/03、5/04 和 5/05 处理器。它还通过 1756-DH485 ControlLogix 模块支持 MicroLogix 和 Logix 控制器。它也可以与操作员接口设备、个人计算机串行端口或任何 9 针 DTE 串行端口和调制解调器一起使用。

1761-NET-AIC 是一款MicroLogix 1000高级接口控制器

The 1761-NET-AIC is an Allen Bradley MicroLogix 1000 advanced interface controller. This module belongs to the MicroLogix 1000 series. It enables DF1 enabled devices to communicate with the DH485 network. It is compatible with MicroLogix 1000, 1200 and 1500 controllers as well as SLC controllers. The 1761-NET-AIC is powered by an external 24VDC power supply connected to an external power terminal.

The converter's communication rate filter matches the network communication rate through the communication rate selector switch. The 1761-NET-AIC is also compatible with SLC processors such as SLC 5/01, 5/02, and 5/03 processors. The 1761-NET-AIC can be used as a point-to-point isolator or an RS-232 to RS-485 isolator. The 1761-NET-AIC can be installed vertically or horizontally. Communication with the module is supported through the use of hardware handshakes or through automatic transmission of signals. 1761-NET-AIC does not have a node address pre-associated with a network port, which allows the node address to be configured in devices connected through the port. Users should note that this module has many operational features.

The 1761-NET-AIC is a DIN rail mount or panel mount assembly with two (2) power supplies, such as providing an external 24VDC supply voltage or via a communication cable connected to a bridging device.

The 1761-NET-AIC Advanced Interface converter has two (2) RS232 communication ports with physical interfaces of 9-pin SUB-D connector type and 8-pin Mini DIN circular connector type. This AIC also has a DH485 Phoenix plug connector for connection to the DH485 network. The communication data rate of this AIC is configured through the provided selector switch installed on the front panel of this AIC.

To use a communication cable to power an AIC, it must be used with a MicroLogix or SLC Programmable logic controller (PLC). In addition, the connection should be established via the 8-pin mini DIN interface, as this terminal transmits 24VDC power to the AIC. In addition, when you intend to power the device through a communication cable, the power switch position must be in the "Cable" option. In other cases, the AIC must be powered by an external 24VDC power source with the switch assigned to an "external" location.

AIC converters are primarily used as point-to-point isolators, RS232 to RS485 isolators, and RS232 to half-duplex user mode ASCII isolators. It is designed to work with various SLC 500 processors, such as 5/01, 5/02, and 5/03, 5/04, and 5/05 processors. It also supports MicroLogix and Logix controllers via the 1756-DH485 ControlLogix module. It can also be used with operator interface devices, personal computer serial ports, or any 9-pin DTE serial ports and modems.
