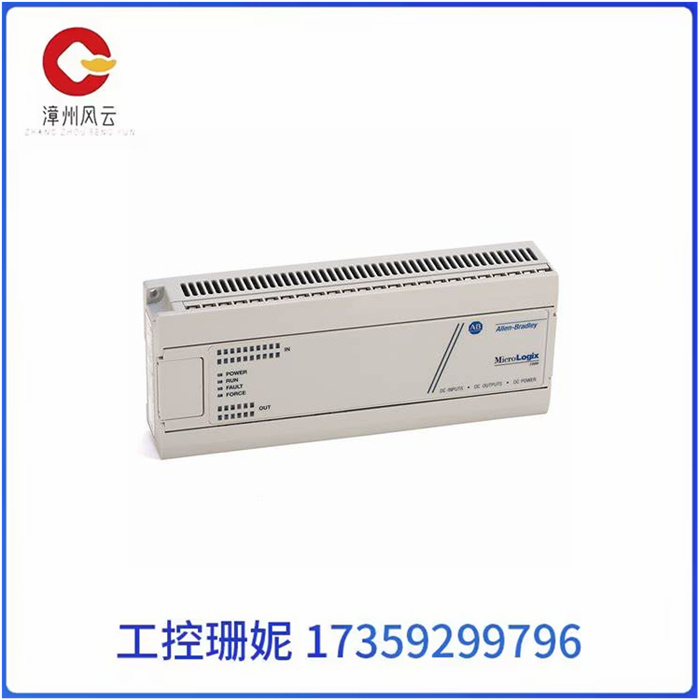

1761-L32AWA 是一款 MicroLogix 1000 可编程控制器

1761-L32AWA 是一款 MicroLogix 1000 可编程控制器

Allen-Bradley 1761-L32AWA 是一款 MicroLogix 1000 可编程控制器。控制器具有 1K 用户存储器、集成了二十 （20） 个 120 伏交流输入通道和十二 （12） 个继电器输出通道。1761-L32AWA 可以使用提供 120 VAC 或 240 VAC 的电源运行。出于安全目的，1761-L32AWA 应在非危险位置或 1 类 2 分区 A、B、C 和 D 组中安装和操作。如果在电路仍带电时连接或断开连接器，或者当 1761-L32AWA 未安装在存储模块中时，控制器可能会爆炸。1761-L32AWA 的长度为 7.87 英寸，深度为 2.87 英寸，高度为 3.15 英寸。控制器可以水平或垂直安装。安装时，顶部、底部和侧面应至少留出 2 英寸的空间，以允许空气自由流动。它体积小巧，具有多种通信选项，包括一个RS-232端口，可通过DH-485网络连接到点对点网络。它还具有设备网络接口 （DNI），可实现快速响应、低成本和可靠的连接。该器件允许简单的编程。

此外，1761-L32AWA 可以垂直安装，安装间隙与水平安装时相同。但是，对于垂直安装，铭牌应朝下。1761-L32AWA 在最低环境温度为 0 摄氏度和最高温度为 +40 摄氏度的情况下以最佳方式运行。当控制器安装在面板上时，它的工作冲击额定值为 9 g 峰值加速度，每个轴持续 11 毫秒 3 次。当 1761-L32AWA 安装在 DIN 导轨上时，每个方向具有 7 g 峰值加速度 11 毫秒 3 次的工作冲击。1761-L32AWA 可容纳尺寸从 14 AWG 到 22 AWG 的实心电线。当电线绞合时，1761-L32AWA 可容纳 16 AWG 至 22 AWG 的尺寸。1761-L32AWA 控制器的执行时间仅为 1.56 毫秒。该控制器具有用于电流和电压的交流、直流或模拟输入选项，以及继电器、三端双向可控硅、MOSFET 和模拟输出作为其输出选项。1761-L32AWA 控制器具有大型指令集，适用于简单位、定时器、定序器、高速计数器和移位寄存器等应用。

1761-L32AWA 是属于 MicroLogix 1000 控制器产品系列的 Allen-Bradley 硬件。该产品系列是紧凑型可编程逻辑控制器 （PLC），具有集成电源、通信端口和 I/O 通道。它是工业自动化要求的理想选择。它可用于自动化工厂车间或过程区域中的机器和流程。

1761-L32AWA 是一款 MicroLogix 1000 可编程控制器

The Allen-Bradley 1761-L32AWA is a MicroLogix 1000 programmable controller. The controller has 1K user memory and integrates twenty (20) 120 volt AC input channels and twelve (12) relay output channels. The 1761-L32AWA can be operated with a power supply providing either 120 VAC or 240 VAC. For safety purposes, the 1761-L32AWA should be installed and operated in A non-hazardous location or in Class 1 2 zoning groups A, B, C and D. If the connector is connected or disconnected while the circuit is still live, or if the 1761-L32AWA is not installed in the storage module, the controller may explode. The 1761-L32AWA has a length of 7.87 inches, a depth of 2.87 inches and a height of 3.15 inches. The controller can be mounted horizontally or vertically. When installing, at least 2 inches of space should be left at the top, bottom and sides to allow free flow of air. It is small in size and has a variety of communication options, including an RS-232 port for connecting to a point-to-point network via DH-485 networks. It also features a Device Network interface (DNI) for fast response, low cost and reliable connectivity. The device allows for simple programming.

In addition, the 1761-L32AWA can be installed vertically with the same mounting clearance as when installed horizontally. However, for vertical installation, the nameplate should face down. The 1761-L32AWA operates optimally at a minimum ambient temperature of 0 degrees Celsius and a maximum temperature of +40 degrees Celsius. When the controller is mounted on the panel, it has an operating impact rating of 9 g peak acceleration, lasting 3 times for 11 milliseconds per axis. When mounted on a DIN rail, the 1761-L32AWA has 7 g peak acceleration of 11 ms 3 operating shocks per direction. The 1761-L32AWA can accommodate solid wire sizes from 14 AWG to 22 AWG. When the wire is twisted, the 1761-L32AWA can accommodate sizes from 16 AWG to 22 AWG. The execution time of the 1761-L32AWA controller is only 1.56 milliseconds. The controller has AC, DC, or analog input options for current and voltage, as well as relays, three-terminal bidirectional thyristors, MOSFETs, and analog outputs as its output options. The 1761-L32AWA controller has a large instruction set for applications such as simple bits, timers, sequencers, high-speed counters, and shift registers.

The 1761-L32AWA is Allen-Bradley hardware in the MicroLogix 1000 controller product family. The product family is a compact programmable logic controller (PLC) with an integrated power supply, communication ports, and I/O channels. It is ideal for industrial automation requirements. It can be used to automate machines and processes on the factory floor or in process areas.

1761-L32AWA 是一款 MicroLogix 1000 可编程控制器
