1756-TBCH 是一款 36 针笼夹可拆卸接线端子

1756-TBCH 是一款 36 针笼夹可拆卸接线端子

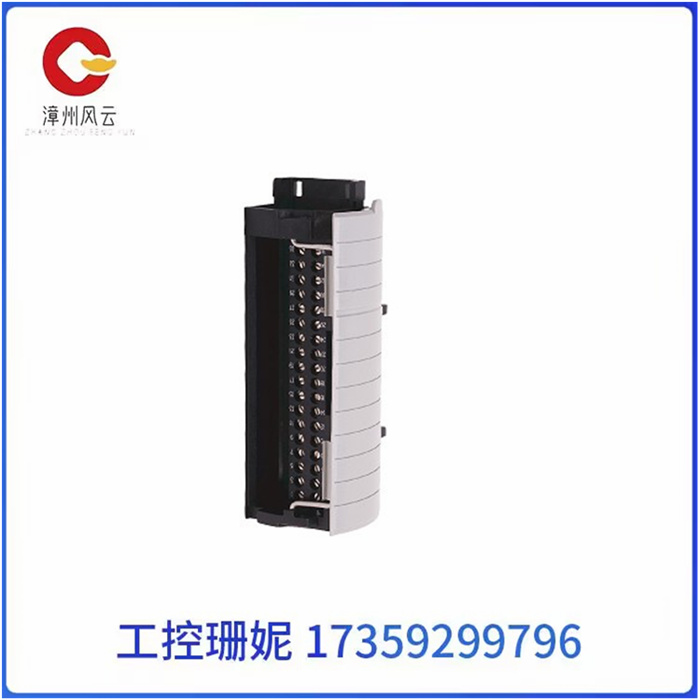

Allen-Bradley 1756-TBCH 是用于 1756 I/O 模块的可拆卸接线端子 （RTB）。它是 I/O 模块附件，必须单独订购。1756-TBCH 为互连 1756 I/O 模块和工业厂房布线提供了灵活性。它插入 I/O 模块的前面。

1756-TBCH 可拆卸接线端子是一个 36 针笼形夹具，带有标准外壳（接线臂深度为 2.5 mm. sq.）。当将信号端接到RTB时，所需的扭矩为0.5 Nm螺旋扭矩。建议使用宽度为 3.2 毫米（1/8 英寸）的螺丝刀螺丝刀宽度。它的尺寸为 5.51 x 4.41 x 5.71 英寸。重0.3磅。接线时，请使用额定温度为 90 度的实心或绞合铜线。摄氏（194°。华氏度）或更高，必须使用最大绝缘层为 1.2 毫米（3/64 英寸）的规格。如果是单线连接，导线尺寸必须为 0.33 - 2.1 平方毫米（22 - 14 AWG），对于双线连接，导线尺寸必须为 0.33 - 1.3 平方毫米（22 - 16 AWG）。在任何单个端子上，不要连接超过两个导体。

每个 ControlLogix I/O 模块都可以安装在任何 ControlLogix 机箱中，并且它们都需要一个可拆卸的接线端子 （RTB） 来连接所有现场接线。每个I/O模块都有许多应用，从高速数字处理到过程控制。在 ControlLogix 架构中，输入和输出状态使用生产者-消费者技术在相同或不同机箱中的多个控制器之间共享。1756-TBCH RTB 适用于 0-60 度的清洁干燥工业环境。摄氏工作温度和30g工作冲击。

1756-TBCH 是一款 36 针笼夹可拆卸接线端子 （RTB），用于为输入和输出设备提供模块化和灵活的接线端子。此 RTB 是一个模块组件，安装在 ControlLogix I/O 模块的前面，由模块门盖隐藏。

1756-TBCH 是一款 36 针笼夹可拆卸接线端子

The Allen-Bradley 1756-TBCH is a detachable terminal (RTB) for the 1756 I/O module. It is an I/O module attachment and must be ordered separately. The 1756-TBCH provides flexibility for interconnecting 1756 I/O modules and industrial plant cabling. It plugs into the front of the I/O module.

The 1756-TBCH detachable terminal is a 36-pin cage fixture with a standard housing (terminal arm depth of 2.5 mm. sq.). When the signal is terminated to the RTB, the required torque is 0.5 Nm helix torque. A screwdriver with a width of 3.2 mm (1/8 inch) is recommended. It measures 5.51 x 4.41 x 5.71 inches. It weighs 0.3 pounds. When connecting cables, use solid or stranded copper cables with a temperature rating of 90 degrees. 194° C. Fahrenheit) or higher, must use a maximum insulation layer of 1.2 mm (3/64 inch) specifications. For a single wire connection, the wire size must be 0.33-2.1 square millimeters (22-14 AWG), and for a two-wire connection, the wire size must be 0.33-1.3 square millimeters (22-16 AWG). Do not connect more than two conductors to any single terminal.

Each ControlLogix I/O module can be installed in any ControlLogix chassis, and they all require a detactable terminal (RTB) to connect all field wiring. Each I/O module has many applications, from high-speed digital processing to process control. In the ControlLogix architecture, input and output states are shared between multiple controllers in the same or different chassis using producer-consumer technology. The 1756-TBCH RTB is suitable for clean and dry industrial environments ranging from 0 to 60 degrees. Celsius operating temperature and 30g operating impact.

The 1756-TBCH is a 36-pin cage clamp removable terminal (RTB) designed to provide modular and flexible terminals for input and output devices. This RTB is a module component that is mounted on the front of the ControlLogix I/O module and is hidden by the module door cover.
