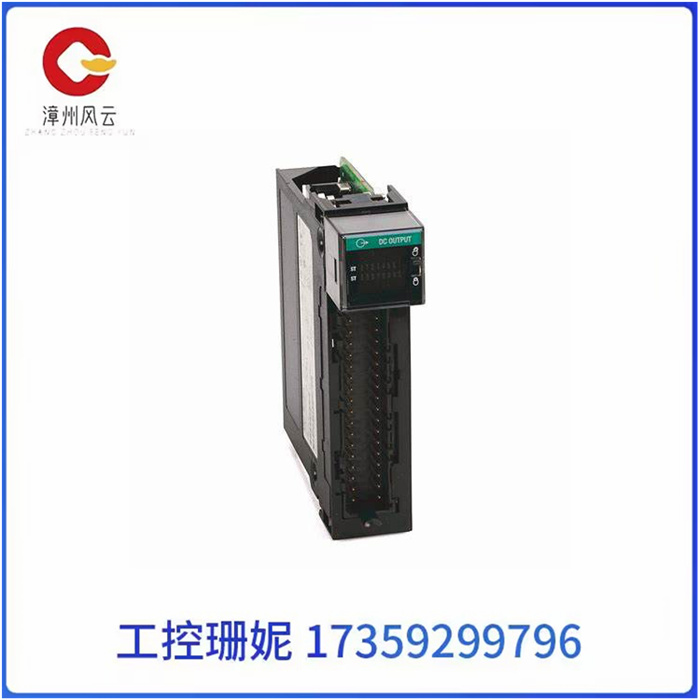

Allen-Bradley 1756-OB16I 是一款 ControlLogix 直流数字输出模块，具有十六 （16） 个独立隔离点。它没有内部，但是可以使用外部IFM来保护输出。此模块推荐的保险丝类型是 5x20mm 4 A 快速熔断器，部件号 SOC 部件号 MQ2-4A。对于 1756-OB16I 模块，兼容的远程接线端子 （RTB） 为 1756-TBCH 1756-TBS6H，两者都有 36 个引脚。需要RTB来提供信号终止点。

该模块的输出通道具有可配置的安全状态位置，控制器的模式更改为程序和控制器故障。

该模块还具有以下通信格式输出数据、只听输出数据、机架优化、只听机架优化和定时输出数据。它还允许在“故障”或“程序”中按点选择状态，将“保持上次状态”、“开”或“关”作为每个选项的可用选项，并默认设置两者。

它是一个 12/24V 直流灌电流/拉电流输出模块，工作电压范围为 10 至 30V DC。其背板电流在 5.1V 时为 350 mA，在 24V 时为 2.5 mA，背板总功率为 1.8 W。其每点最大电流在 30 摄氏度时为 2 A，在 60 摄氏度（线性降额）时为 1 A，而每个模块的最大电流在 30 摄氏度时为 8 A，在 60 摄氏度时为 4 A（线性降额）。其每点浪涌电流每 2 秒在 4 A 下可重复一次，每点 10 ms。它还具有每点 1 mA 的最小负载电流、1.2V DC 和 2 A 最大导通状态容积压降和每点 0.5 mA 的最大关断状态漏电流。

1756-OB16I 是一款 ControlLogix 直流数字输出模块

The Allen-Bradley 1756-OB16I is a ControlLogix DC digital output module with sixteen (16) independent isolation points. It has no internals, but can use external IFM to protect the output. The recommended fuse type for this module is 5x20mm 4A fast fuse, part number SOC Part number MQ2-4A. For the 1756-OB16I module, the compatible Remote Terminal (RTB) is 1756-TBCH 1756-TBS6H, both of which have 36 pins. RTB is required to provide the signal termination point.

The output channel of the module has a configurable safe state position, and the mode of the controller changes to program and controller failure.

The module also has the following communication format output data, listen only output data, rack optimization, listen only rack optimization, and timed output data. It also allows you to click to select a state in Fault or Program, with Keep Last State, On, or Off as available options for each option, and both are set by default.

It is a 12/24V DC feed/pull current output module with an operating voltage range of 10 to 30V DC. Its backplane current is 350 mA at 5.1V, 2.5 mA at 24V, and the total backplane power is 1.8 W. Its maximum current per point is 2 A at 30 degrees Celsius and 1 A at 60 degrees Celsius (linear derating), while the maximum current per module is 8 A at 30 degrees Celsius and 4 A at 60 degrees Celsius (linear derating). Each point of the surge current can be repeated every 2 seconds at 4 A, 10 ms per point. It also has A minimum load current of 1 mA per point, a maximum on-state capacity drop of 1.2V DC and 2 A, and a maximum off state leakage current of 0.5 mA per point.
