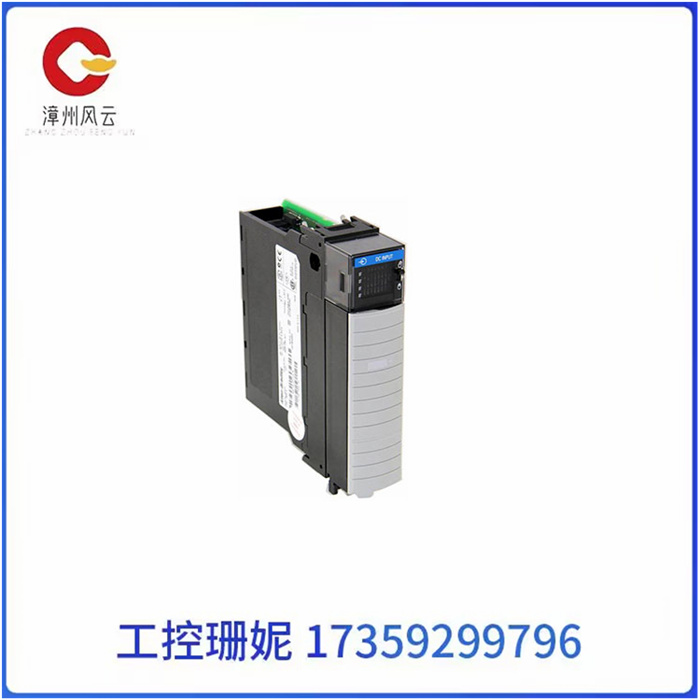

1756-IB32/B ControlLogix数字DC输入模块

1756-IB32/B ControlLogix数字DC输入模块

Allen-Bradley 1756-IB32系列B模块是Allen-Bradley ControlLogix数字DC输入模块，有32个输入。它的输入电压范围为12到24伏DC电压，工作电压范围为10到31.2伏DC电压。Allen-Bradley 1756-IB32系列B模块的输入延迟时间为420微秒，外加操作员可以选择的选定滤波器时间。该输入模块的额定电流为1.5毫安的最大输入电流、5.5毫安的最大工作电流、2毫安的最小工作电流、5伏DC下120毫安的底板电流和24伏DC下2毫安的底板电流。Allen-Bradley 1756-IB32系列B模块的32个输入被分成两组，每组16个输入。

Allen-Bradley 1756-IB32系列B ControlLogix数字DC输入模块在60摄氏度的温度下工作时消耗大约6.2瓦的功率。该模块具有反极性保护。它被一个开放的外壳部分保护。

这种开放式外壳并不能保护Allen-Bradley 1756-IB32 B系列模块免受液体、碎片和刺激性或腐蚀性化学物质的影响，但它可以保护模块的最重要部分免受轻微威胁。开放式外壳还可防止操作人员接触模块的带电部件，以及被电压伤害。该模块还具有状态改变功能，可针对不同的应用进行软件配置。模块使用的RSLogix 5000软件必须是软件的8.02版或更高版本。

1756-IB32/B ControlLogix数字DC输入模块

The Allen-Bradley 1756-IB32 Series B module is an Allen-Bradley ControlLogix digital DC input module with 32 inputs. It has an input voltage range of 12 to 24 volts DC and an operating voltage range of 10 to 31.2 volts DC. The Allen-Bradley 1756-IB32 Series B module has an input delay time of 420 microseconds, plus selected filter times that can be selected by the operator. The input module is rated for a maximum input current of 1.5 MA, a maximum operating current of 5.5 MA, a minimum operating current of 2 mA, a floor current of 120 MA at 5 volts DC, and a floor current of 2 mA at 24 volts DC. The 32 inputs of Allen-Bradley 1756-IB32 Series B modules are divided into two groups of 16 inputs each.

The Allen-Bradley 1756-IB32 Series B ControlLogix digital DC input module consumes approximately 6.2 watts of power when operating at a temperature of 60 degrees Celsius. The module has reverse polarity protection. It is partially protected by an open enclosure.

This open housing does not protect Allen-Bradley 1756-IB32 B series modules from liquids, debris, and harsh or corrosive chemicals, but it does protect the most important parts of the module from minor threats. The open housing also prevents the operator from touching the live parts of the module and from being damaged by voltage. The module also has the function of state change, which can be configured for different applications. The RSLogix 5000 software used by the module must be version 8.02 or later of the software.

1756-IB32/B ControlLogix数字DC输入模块
